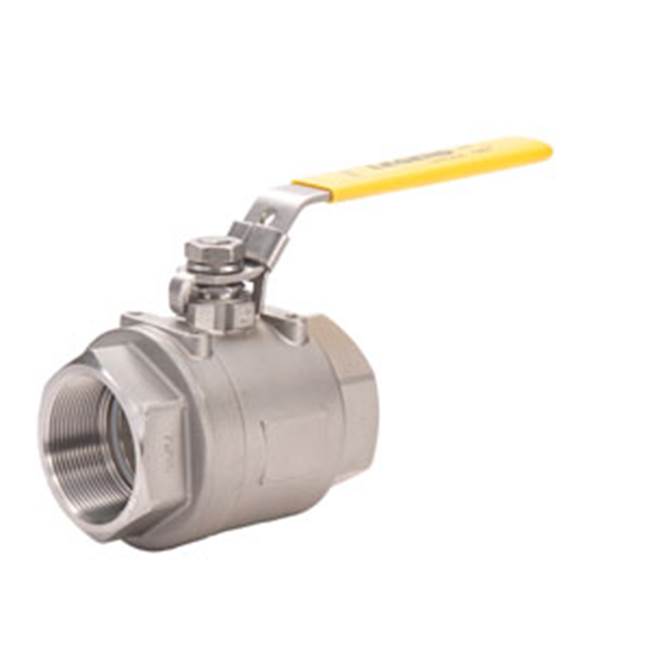

Legend Valve 113-143 1/2 T-712 S.S. Ball Valve

Product Description

The Legend Valve 113-143 is a 1/2 inch T-712 stainless steel ball valve designed for reliable flow control. This valve features a latch-lock handle and is suitable for oil, steam, and water applications. It offers a full port design for maximum flow capacity.

• Manufactured from durable 316 stainless steel
• Pressure rated at 1000 psi
• 2-piece construction for easy maintenance

Product Highlights

This valve is ideal for both commercial and industrial applications, ensuring longevity and security in plumbing systems.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 113-143

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Inlet to Outlet Length: 2.56 inches
• Nominal Size: 1/2 inches
• End Style: FNPT
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: T-712
• Softgoods Material: PTFE
• Top to Inlet Center: 2.36 inches
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
