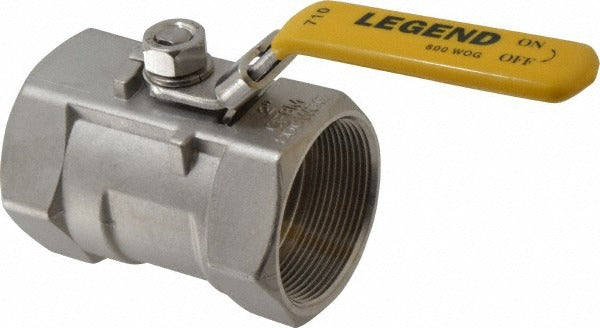

Legend Valve 113-128 Ball Valve 2 Inches Fnpt Standard Port

Product Description

The LEGEND VALVE 113-128 is a 1-piece standard port manual ball valve designed for inline shutoff and flow control in plumbing, HVAC, and industrial piping systems. Built from 316 stainless steel body, trim, and handle, this valve is suited for corrosive environments and fluid services where carbon steel or brass would degrade. The 2-inch FNPT x FNPT end connections thread directly into female-threaded pipe runs. A reinforced polytetrafluoroethylene (PTFE) seat provides a low-friction, leak-resistant seal across a wide range of fluid types. The locking lever handle prevents accidental actuation in service environments where inadvertent shutoff or opening could cause system disruption.

This valve is a standard choice for commercial and industrial plumbing, mechanical rooms, process piping, and hydronic systems where a reliable manual isolation point is required at 2-inch pipe size. The FNPT x FNPT configuration makes it compatible with threaded black iron, stainless, or CPVC-lined steel piping. Typical installers include licensed plumbers, pipefitters, and mechanical contractors working on water, chemical, or hydronic systems. The 1-piece body design offers a compact installation footprint compared to 2-piece or 3-piece configurations.

Key Features

• 316 stainless steel body, trim, and handle for corrosion resistance in demanding fluid services
• Reinforced PTFE seat provides durable, low-friction sealing
• Locking lever handle prevents inadvertent valve operation
• FNPT x FNPT end connections for direct threaded pipe installation
• Standard port, 1-piece body construction for a compact inline profile
• 2-inch pipe size suits main distribution and branch isolation applications

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 2-inch threaded pipe systems requiring standard port flow control and manual isolation.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local mechanical codes. Shut off and depressurize the system completely before removing an existing valve or threading in this valve. Apply appropriate thread sealant or PTFE tape to the male-threaded pipe ends before making up connections. Do not use the handle as leverage when tightening the valve body into the pipe run.
