Legend Valve 113-127 Ball Valve 1-1/2 Inch Fnpt Stainless

Product Description

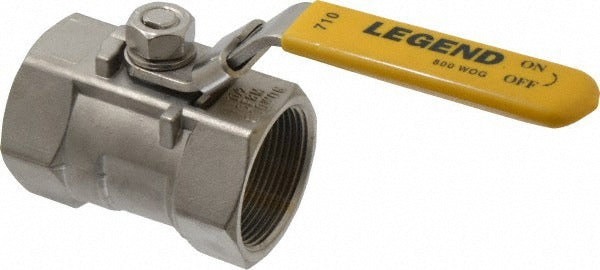

The LEGEND VALVE 113-127 is a 1-piece standard port manual ball valve designed for inline shutoff and flow control in plumbing, HVAC, and industrial piping systems. Built from 316 stainless steel throughout the body, trim, and handle, it delivers strong corrosion resistance in demanding wet or chemical-exposure environments. The valve connects via female NPT threads on both ends and operates with a locking lever handle, allowing the technician to secure the valve in either the open or closed position to prevent accidental actuation. Reinforced PTFE seat material provides a reliable, low-friction seal across a wide range of service conditions.

This valve is suited for residential and light commercial applications where a durable, corrosion-resistant shutoff is required on 1-1/2 inch piping. Common install scenarios include hydronic heating and cooling systems, water supply lines, process piping, and chemical distribution lines where 316 stainless steel is specified over brass or carbon steel. The standard port bore reduces flow capacity compared to full-port designs, which is an acceptable trade-off in low-flow or pressure-drop-tolerant systems. Plumbers, pipefitters, and mechanical contractors are the primary installers of this valve type.

Key Features

• 316 stainless steel body, trim, and handle for superior corrosion resistance
• Reinforced PTFE seat provides a low-friction, chemical-resistant seal
• Locking lever handle prevents unintended valve position changes
• FNPT x FNPT end connections for straightforward threaded installation
• 1-piece body construction reduces potential leak points
• Standard port design suitable for moderate flow applications

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-1/2 inch threaded piping systems requiring a standard port, 1-piece 316 stainless steel valve with FNPT x FNPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local mechanical codes. Shut off system pressure and drain the line before removing or installing any valve. Apply thread sealant or PTFE tape to male NPT threads on the mating pipe, not to the valve's female threads, and tighten to hand-snug plus the number of turns appropriate for the pipe material and sealant type per manufacturer guidance. Verify the locking lever is in the correct service position and confirm no leaks under pressure before returning the system to service.
