Legend Valve 113-125 Ball Valve 1 Inch Fnpt Stainless Steel

Product Description

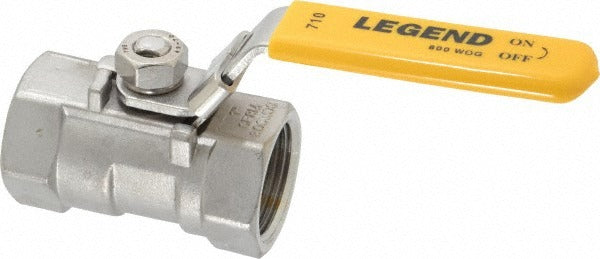

The LEGEND VALVE 113-125 is a 1-inch standard port manual ball valve built for reliable shutoff in plumbing, hydronic, and mechanical piping systems. The one-piece body is machined from 316 stainless steel, making it well suited for corrosive fluid service and installations where carbon steel or brass valves are not appropriate. Female NPT connections on both ends allow straightforward threaded installation into standard pipe runs. The locking lever handle prevents inadvertent operation in applications where valve position must be secured. Seat material is reinforced PTFE, which provides a tight shutoff across a wide range of fluid and temperature conditions.

This valve is used in residential and commercial plumbing, mechanical rooms, process piping, and HVAC hydronic systems where a stainless steel shutoff valve is specified. The 1-inch pipe size fits common main supply and branch lines. The standard port configuration is appropriate for most shutoff and isolation duties where full-bore flow is not required. Licensed plumbers and pipefitters typically install this valve during new construction, retrofit, or system service.

Key Features

• One-piece 316 stainless steel body and trim for corrosion resistance in demanding service
• Standard port design for reliable shutoff and isolation in 1-inch pipe systems
• FNPT x FNPT end connections for direct threaded installation
• Locking lever handle secures valve position against accidental actuation
• Reinforced PTFE seat material delivers tight shutoff across a broad range of media

Compatibility

Designed as an OEM-style replacement or direct installation option for 1-inch threaded pipe systems requiring a standard port stainless steel ball valve with FNPT x FNPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off system pressure and drain the line before removing or installing any threaded valve. Use appropriate thread sealant or tape rated for the service fluid on all NPT connections. Do not use the handle as a lever for tightening the valve body into the pipe fitting.
