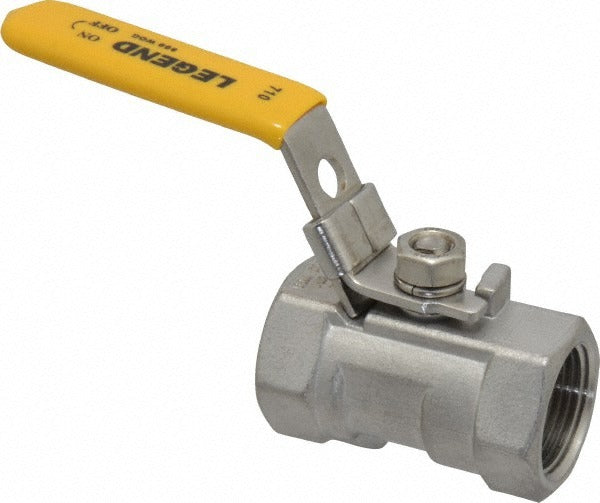

Legend Valve 113-124 Ball Valve 3/4 Inch Fnpt 316 Ss

Product Description

The LEGEND VALVE 113-124 is a 1-piece stainless steel manual ball valve designed for 3/4 inch pipe in plumbing, hydronic, and industrial fluid-control applications. Built from 316-grade stainless steel throughout the body, trim, and handle, this valve delivers strong corrosion resistance in aggressive service environments. The standard port design provides reliable shutoff with a locking lever handle to prevent accidental operation. The seat is constructed from reinforced polytetrafluoroethylene (PTFE), offering low-friction cycling and chemical compatibility across a wide range of media. It weighs 0.675 pounds and connects via female NPT threads on both ends.

This valve is suited for residential and light commercial installations where a compact, corrosion-resistant shutoff is required. Typical applications include domestic water lines, hydronic heating and cooling systems, chemical process lines, and marine or coastal installations where 316 SS material grades are specified. The locking lever handle makes it appropriate for systems where unintended valve actuation is a concern. Plumbers and pipefitters install this valve in both new construction and retrofit scenarios requiring a threaded, in-line shutoff on 3/4 inch pipe.

Key Features

• 316-grade stainless steel body, trim, and handle for superior corrosion resistance
• Reinforced PTFE seat provides low-friction operation and broad chemical compatibility
• Locking lever handle prevents accidental valve actuation
• FNPT x FNPT end connections for straightforward threaded installation
• 1-piece body construction reduces potential leak points
• Standard port design delivers reliable full shutoff

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 3/4 inch FNPT threaded pipe systems in plumbing, hydronic, and fluid-handling applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local plumbing codes. Shut off the water supply and depressurize the line completely before removing any existing valve or making threaded connections. Apply an appropriate thread sealant or PTFE tape to male NPT threads before threading the valve into the line. Do not exceed the pressure and temperature ratings specified by the manufacturer for the installed media and service conditions.
