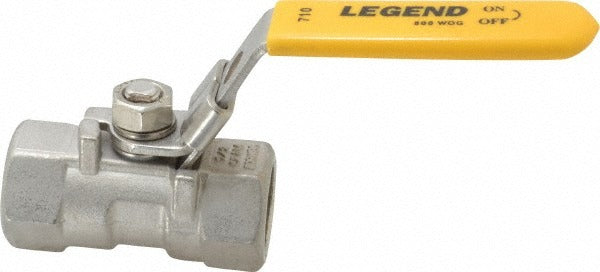

Legend Valve 113-123 Ball Valve 1/2 Inch Fnpt Stainless Steel

Product Description

The LEGEND VALVE 113-123 is a 1-piece manual ball valve built for reliable shutoff in plumbing, hydronic, and fluid handling systems. The body, trim, and handle are all 316 stainless steel, making this valve suitable for corrosive media and demanding service environments. A reinforced PTFE seat provides a tight seal with low operating torque. The locking lever handle prevents accidental actuation, which is especially useful in commercial mechanical rooms and industrial piping runs. Licensed plumbers and pipefitters are the primary installers for this type of valve.

This valve is sized for 1/2 inch pipe with female NPT connections on both ends, making it a straightforward drop-in for standard threaded piping systems. The standard port design is appropriate for general-purpose flow control where full-port sizing is not required. Typical applications include domestic water lines, hydronic heating circuits, light industrial fluid systems, and HVAC chilled or hot water distribution. The 1-piece body construction keeps the assembly compact and leak-path count low.

Key Features

• 316 stainless steel body, trim, and handle for corrosion resistance in aggressive service
• Reinforced PTFE seat for durable, low-friction sealing
• Locking lever handle prevents unintended valve operation
• 1-piece body construction minimizes potential leak points
• FNPT x FNPT end connections for standard threaded pipe installation
• Standard port design suited to general-purpose flow control applications

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 1/2 inch threaded piping systems in plumbing, HVAC, and light industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IPC requirements. Shut off the system water supply and relieve line pressure completely before removing any existing valve or making threaded connections. Apply thread sealant or PTFE tape appropriate for the service media to all NPT connections. Do not use the handle as leverage when tightening the valve body into the pipeline.
