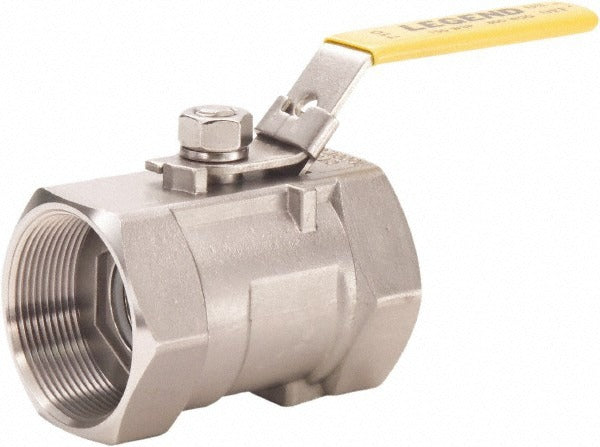

Legend Valve 113-120 Ball Valve 1/8 Inch Fnpt Stainless Steel

Product Description

The LEGEND VALVE 113-120 is a 1-piece standard manual ball valve designed for 1/8 inch pipe in water, oil, and gas service lines. The body and handle are constructed from stainless steel, offering corrosion resistance in demanding installations. PTFE (polytetrafluoroethylene) seals provide low-friction operation and chemical compatibility across a broad range of media. The lever handle allows quick quarter-turn shutoff, making it a practical choice for tight inline service applications. Licensed plumbers and mechanical contractors install this valve type in low-pressure residential and light commercial systems where reliable manual isolation is required.

This valve is suited for 1/8 inch FNPT threaded connections in plumbing, HVAC hydronic, and fuel gas distribution systems. The standard port design is appropriate for applications where full-bore flow is not required. Its compact 1-piece body keeps the installation footprint small, which is useful in panel assemblies, manifold stations, and equipment connections where space is limited. Compatible media include water, oil, and gas as noted by the manufacturer.

Key Features

• 1-piece stainless steel body for corrosion resistance in water, oil, and gas service
• FNPT x FNPT end connections for straightforward threaded installation on 1/8 inch pipe
• PTFE seals provide chemical compatibility and low operating torque
• Stainless steel lever handle enables fast quarter-turn manual shutoff
• Standard port configuration suitable for low-flow inline isolation
• Compact 1-piece construction minimizes installation space requirements

Compatibility

Designed for use with water, oil, and gas systems requiring 1/8 inch FNPT threaded connections and standard port manual ball valve isolation.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable IPC or IFGC requirements for the service media involved. Shut off and depressurize the supply line completely before removing any existing valve or fitting. Apply thread sealant rated for the intended media to all male FNPT threads before assembly. Do not overtighten threaded connections, as stainless steel fittings can gall if excessive force is applied.
