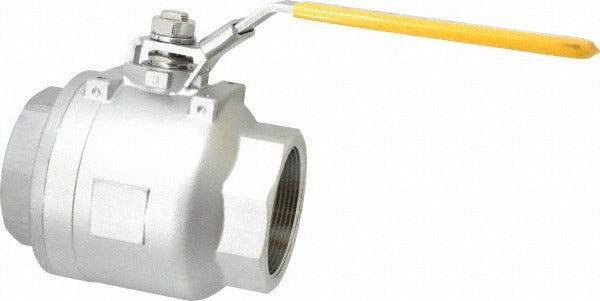

Legend Valve 113-110 Ball Valve 3 Inches Full Port Fnpt

Product Description

The LEGEND VALVE 113-110 is a 2-piece, full port manual ball valve designed for 3-inch pipe installations in commercial and industrial plumbing, HVAC hydronic systems, and process piping. The body, trim, and handle are all constructed from grade 316 stainless steel, offering strong resistance to corrosion and elevated-temperature service. A reinforced PTFE seat provides reliable shutoff with low operating torque. End connections are female NPT on both sides, allowing direct threaded installation without additional fittings. The locking lever handle helps prevent accidental actuation in high-traffic or code-sensitive environments. Licensed plumbers and pipefitters are the primary installers for a valve of this size and pressure class.

This valve is suited for 3-inch threaded pipe runs in commercial plumbing, industrial fluid handling, and mechanical systems where a full port, low-restriction shutoff is required. Full port geometry maintains the full pipe bore when open, minimizing pressure drop across the valve. The FNPT x FNPT end configuration is compatible with standard tapered male NPT pipe threads in carbon steel, copper-threaded, or stainless steel pipe assemblies. The locking lever is particularly useful in mechanical rooms and process lines where valve position must be secured against unintended operation.

Key Features

• Grade 316 stainless steel body, trim, and handle for broad corrosion resistance
• Full port design maintains full pipe bore, minimizing pressure drop
• FNPT x FNPT end connections for direct threaded installation on 3-inch pipe
• Reinforced PTFE seat provides durable, low-torque shutoff
• Locking lever handle prevents accidental valve actuation
• 2-piece body construction simplifies field inspection and service

Compatibility

Designed as an OEM-style replacement or new-installation manual shutoff valve for 3-inch FNPT threaded pipe systems in commercial plumbing and industrial fluid handling applications.

Installation Notes

Installation of 3-inch threaded ball valves should be performed by a licensed plumber or pipefitter in accordance with the International Plumbing Code (IPC) and applicable local codes. Isolate and depressurize the system and drain any residual fluid before removing or installing the valve. Use an appropriate thread sealant or tape rated for the service fluid when making up NPT connections. Do not overtighten NPT threads, as this can stress the valve body and compromise the seal.
