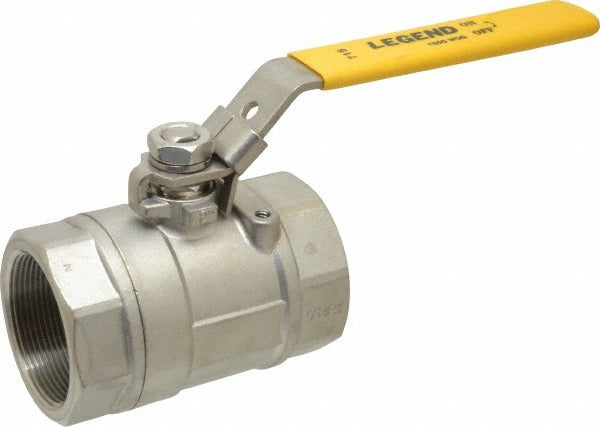

Legend Valve 113-108 Ball Valve 2 Inch Fnpt Large Port

Product Description

The LEGEND VALVE 113-108 is a 2-inch stainless steel manual ball valve built for reliable shutoff and flow control in demanding plumbing and mechanical piping systems. Constructed from 316 stainless steel with a matching stainless trim package, this two-piece valve handles corrosive media and high-cycle applications where carbon steel or brass would degrade. The large port design minimizes pressure drop across the valve, and the reinforced PTFE seat provides a tight, low-friction seal. A locking lever handle allows the operator to secure the valve in the open or closed position, reducing the risk of accidental actuation in critical service lines.

This valve is suited for commercial and industrial piping installations where corrosion resistance and full-bore flow capacity are priorities. Typical applications include process water lines, chemical transfer systems, HVAC hydronic piping, and marine or coastal mechanical systems where 316 stainless is specified. Plumbers, pipefitters, and mechanical contractors install this valve on 2-inch FNPT-threaded pipe systems. Its two-piece body construction simplifies in-line maintenance when the line can be depressurized and drained.

Key Features

• 316 stainless steel body and trim for high corrosion resistance in aggressive service environments
• Large port design reduces flow restriction and pressure drop compared to standard port valves
• Reinforced PTFE seat delivers a leak-tight seal and low operating torque over extended service life
• Locking lever handle secures valve position to prevent unintended operation
• FNPT x FNPT end connections on both sides for straightforward threaded pipe installation
• Two-piece body construction allows internal access without removing the valve from the line

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 2-inch FNPT threaded piping systems requiring 316 stainless steel construction and large-port flow characteristics.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and ASME piping codes. Depressurize and fully drain the line before removing any existing valve or threading in this replacement. Apply an appropriate thread sealant or PTFE tape to the male threads of the mating pipe before making up the joint. Verify that the locking lever is disengaged before operating the valve after installation.
