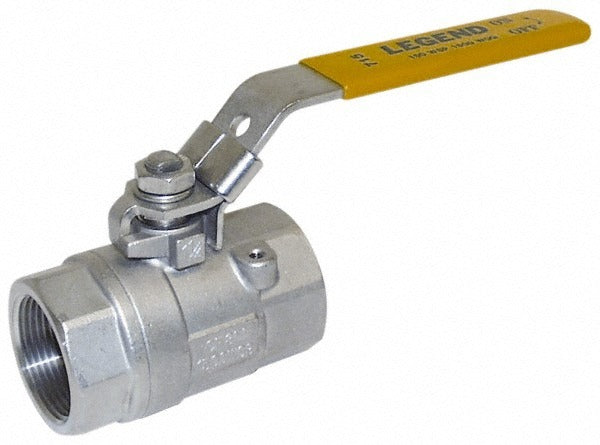

Legend Valve 113-107 Ball Valve 1-1/2 in Fnpt Stainless

Product Description

The LEGEND VALVE 113-107 is a standard manual ball valve built for reliable shutoff in fluid piping systems. Constructed from 316 stainless steel in both the body and trim, this 2-piece valve handles demanding environments including chemical exposure, high-moisture conditions, and corrosive media. The large-port design minimizes flow restriction, and the reinforced PTFE seat provides durable, low-friction operation. The locking lever handle adds a layer of safety by preventing unintended actuation. Sized for 1-1/2-inch pipe with female NPT connections on both ends, this valve is a standard fit for plumbing, hydronic, and process piping installations.

This valve is suited for residential and light commercial applications where a full-bore, manual-operation shutoff is required. Typical install scenarios include hydronic heating and cooling systems, water distribution lines, chemical feed lines, and industrial process piping. The FNPT x FNPT end connections thread directly onto male-threaded pipe or fittings, making installation straightforward for licensed plumbers and pipefitters. The 316 stainless steel construction makes it appropriate where carbon steel or brass valves would be unsuitable due to corrosion concerns.

Key Features

• 316 stainless steel body and trim for corrosion resistance in harsh service environments
• Large-port design reduces pressure drop across the valve
• Reinforced PTFE seat delivers low-friction, long-service shutoff performance
• Locking lever handle prevents accidental valve operation
• FNPT x FNPT end connections for direct thread-in installation on 1-1/2-inch pipe
• 2-piece body construction allows in-line servicing and seat access

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 1-1/2-inch female NPT threaded piping systems in plumbing, hydronic, and process applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME B31 piping standards. Depressurize and drain the line completely before removing any existing valve or making threaded connections. Apply appropriate thread sealant or PTFE tape to male threads before engagement. Confirm valve handle orientation and locking-lever position after installation to ensure the system is in the intended open or closed state before returning the line to service.
