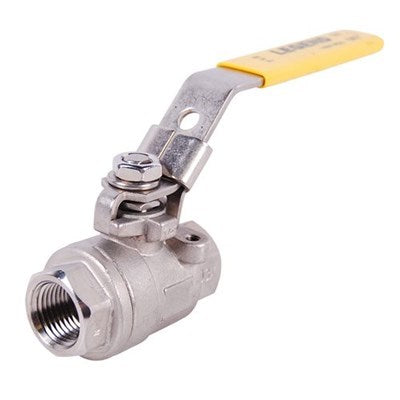

Legend Valve 113-105 1 T-715 S.S. Ball Valve

Product Description

The Legend Valve 113-105 is a two-piece stainless steel ball valve designed for various plumbing applications. This valve has a nominal size of one inch with FNPT connections and a large port for optimal flow. It can handle pressures up to two thousand psi CWP and features a bottom-loaded blow-out proof stem for added safety.

• Heavy duty two-piece investment cast body design
• Ideal for commercial and industrial use
• Fiber reinforced graphite seats maintain shape under pressure

Product Highlights

This ball valve is suitable for high-pressure applications and is manufactured in accordance with ANSI and ASTM standards, ensuring reliability and performance.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Model: T-715

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 3.31 inches
• Nominal Size: 1 inch
• Port Type: Large
• Pressure Rating: 2000 psi CWP
• Top to Inlet Center: 2.52 inches
• Trim Material: Stainless Steel Stem and Graphite Impregnated RTFE Seat
• Series: T-715
• Type: 2-Piece
