Legend Valve 112-027NL T-6802NL Pressure Reducing Valve Body 1-1/2 inches

Product Description

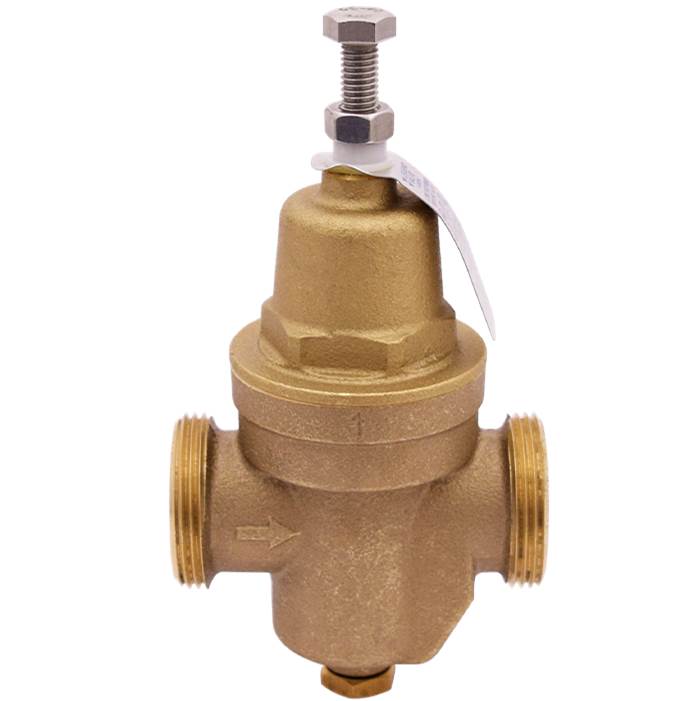

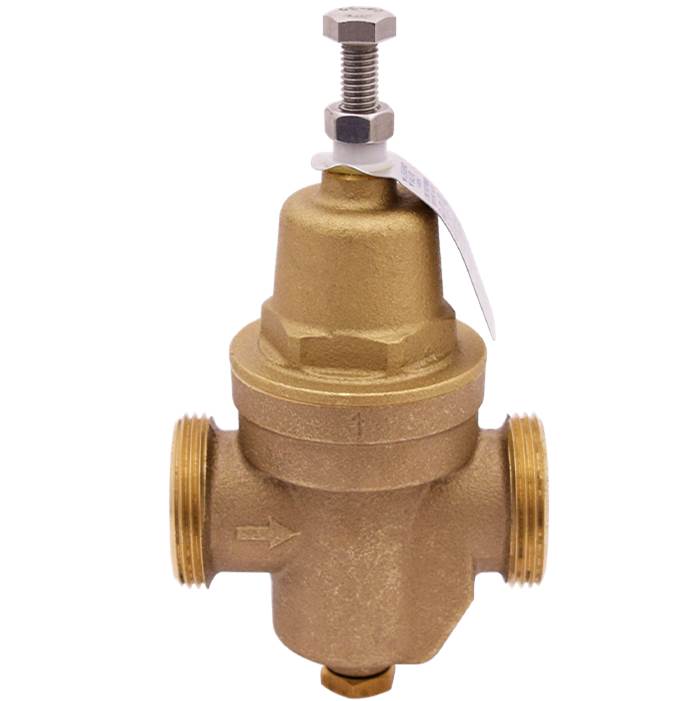

Legend Valve 112-027NL is a 1-1/2-inch T-6802NL pressure reducing valve (PRV) body constructed of brass for controlling downstream water pressure. The valve is factory preset to a 50 psi outlet and is adjustable from 25 to 75 psi; it is rated 300 CWP and has a maximum operating temperature of 180°F. The product meets ASTM F1807 and is listed under the No Finish Group.

• 1-1/2 inch brass PRV body, model T-6802NL (MPN 112-027NL)
• Factory preset 50 psi outlet; adjustable 25 to 75 psi; rated 300 CWP
• Maximum temperature 180°F and meets ASTM F1807 standard

Product Highlights

Brass 1-1/2" PRV body, factory preset 50 psi, adjustable 25–75 psi, 300 CWP, max 180°F, ASTM F1807

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 112-027NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: Legend Valve
• Manufacturer Part Number: 112-027NL
• Model: T-6802NL
• Product Type: Pressure Reducing Valve (PRV) body
• Size: 1-1/2"
• Body Material: Brass
• Factory Preset Outlet Pressure: 50 psi
• Adjustable Outlet Pressure: 25 to 75 psi
• Pressure Rating: 300 CWP
• Maximum Temperature: 180°F
• Standards: Meets ASTM F1807
• Finish: No Finish Group
• UPC: 662545120034
• Country of Origin: Taiwan, Province of China
• SKU: 112-027NL
