Legend Valve 112-026NL T-6802NL PRV Body (1-1/4 inches)

Product Description

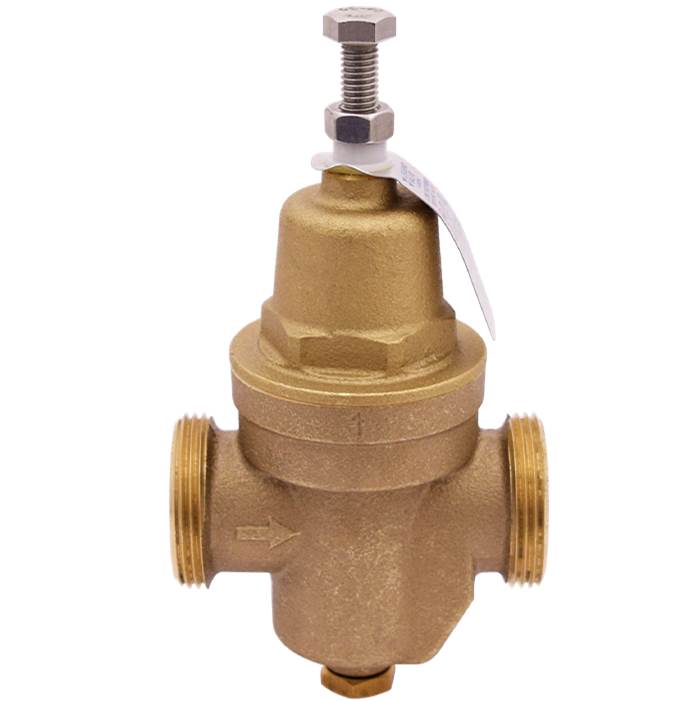

Legend Valve 112-026NL is a 1-1/4-inch T-6802NL pressure reducing valve (PRV) body intended for residential and commercial plumbing. The brass PRV body is factory preset to a 50 psi outlet and adjustable from 25 to 75 psi; it is rated 300 CWP with a maximum temperature of 180 F and conforms to ASTM F1807. The listing covers the PRV body component (no finish).

• Brass body construction; pipe size 1-1/4 inch.
• Factory preset outlet pressure 50 psi; adjustable range 25 to 75 psi.
• Pressure rating 300 CWP; maximum temperature 180 F; conforms to ASTM F1807.

Product Highlights

1-1/4 in PRV body; factory preset 50 psi; adjustable 25–75 psi; 300 CWP; max 180 F; ASTM F1807; restricted for potable water use.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 112-026NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Manufacturer: LEGEND VALVE
• MPN: 112-026NL
• Model: T-6802NL
• UPC: 662545120027
• Pipe Size: 1-1/4"
• Body Material: Brass
• Factory Preset Outlet Pressure: 50 psi
• Adjustable Outlet Pressure Range: 25 to 75 psi
• Pressure Rating: 300 CWP
• Maximum Temperature: 180 F
• Standards: ASTM F1807
• Country of Origin: Taiwan, Province of China
• Finish: No Finish Group
• Category: Pressure Reducing Valve
• Restrictions: Restricted for conveying or dispensing water for potable use (human consumption)
