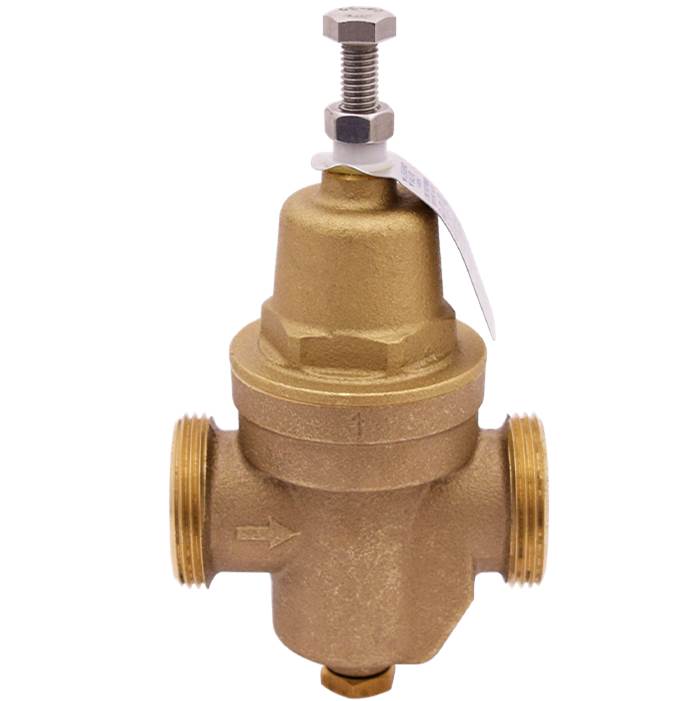

Legend Valve 112-023NL 1/2 inches T-6802NL PRV Body Only

Product Description

The LEGEND VALVE 112-023NL is a 1/2" T-6802NL Pressure Reducing Valve Body Only, designed to regulate water pressure in plumbing systems. This valve is factory preset at 50 psi outlet pressure and is adjustable from 25 to 75 psi, making it suitable for various applications. It can withstand a maximum temperature of 180°F and a working pressure of 300 CWP, ensuring reliable performance for pressure reduction needs.

• Factory preset at 50 psi outlet pressure.
• Adjustable outlet pressure range from 25 to 75 psi.
• Rated for 300 CWP and a maximum temperature of 180°F.

Product Highlights

This pressure reducing valve body is designed for precise water pressure regulation, offering adjustable settings and robust construction.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 112-023NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Pipe Size: 1/2"
• Factory Preset Outlet Pressure: 50 psi
• Adjustable Pressure Range: 25 to 75 psi
• CWP Rating: 300 CWP
• Maximum Temperature: 180°F
• Standard Compliance: ASTM F1807
• Product Type: Pressure Reducing Valve
• Finish: No Finish Group
