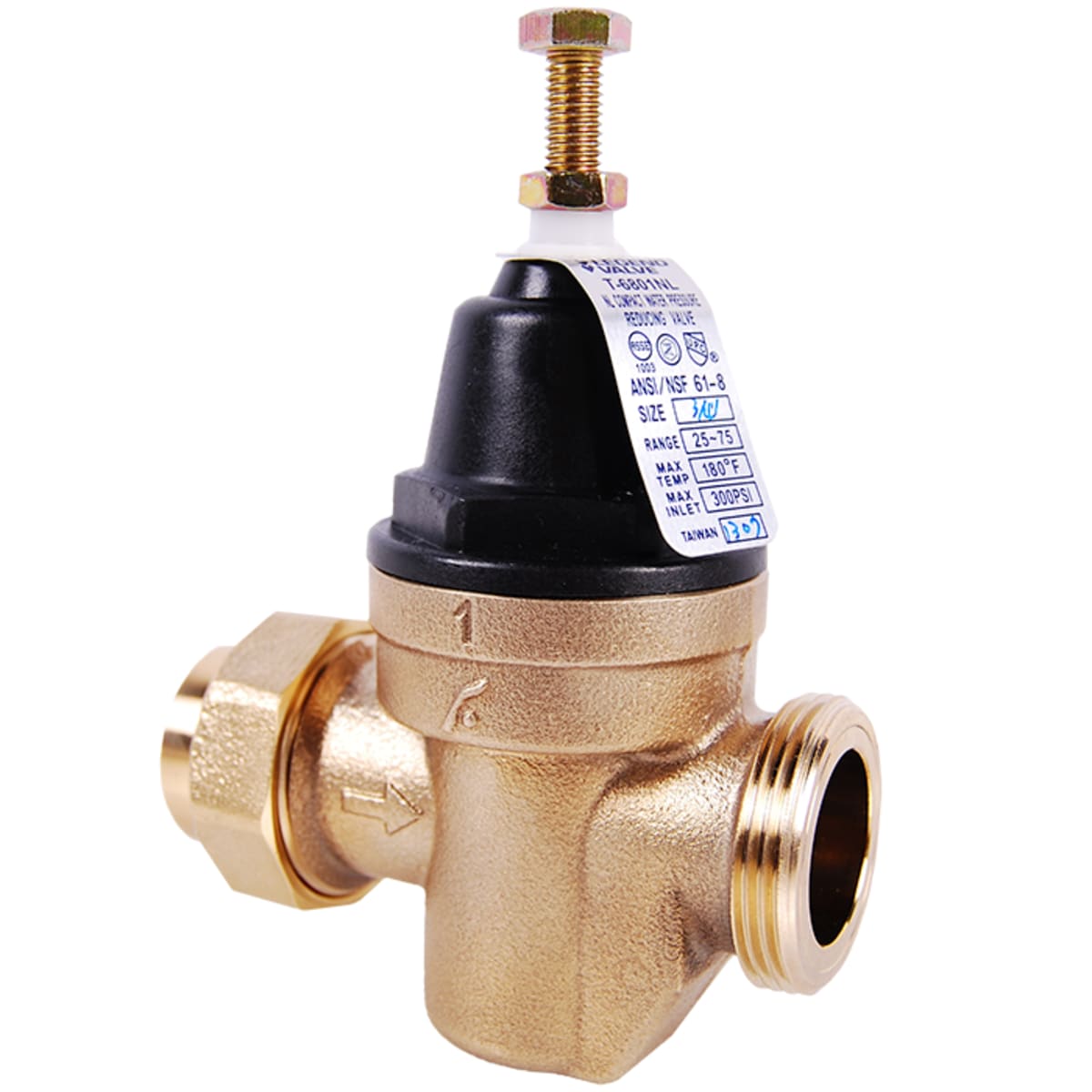

Legend Valve 111-335NL 1 T-6801 NL Compact PRV Valve

Product Description

The Legend Valve 111-335NL is a 1 inch compact pressure reducing valve. This valve reduces incoming water pressure for systems requiring regulated flow. It is suitable for potable water applications and features a female threaded connection. The body is made from cast brass, which ensures durability and longevity.

• Factory pre-set at 50 PSI outlet pressure
• Ensures lead-free construction for safety
• Allows for vertical or horizontal installation

Product Highlights

This valve protects water distribution systems by regulating pressure and is equipped with an integral strainer screen to help prevent debris from damaging components.

Product Information

Standard Information

• Type: Pressure Reducing Valve
• Nominal Size: 1 Inch

Technical Specifications

• Body Material: Cast Brass
• Spring Material: Cold Drawn Steel Wire
• Seat Material: NBR (Buna-N) Rubber O-Ring
• Temperature Rating: 180 Degrees F
• Pressure Rating: 300 PSI (CWP)
• Flow Rate: 50 GPM
• Installation: Vertical/Horizontal
• Inclusions: Integral Strainer Screen, Adjustment Bolt, Polycarbonate Bonnet
