Legend Valve 111-154 T-20A Adj. Anti-Sweat Val 1/2 inches

Product Description

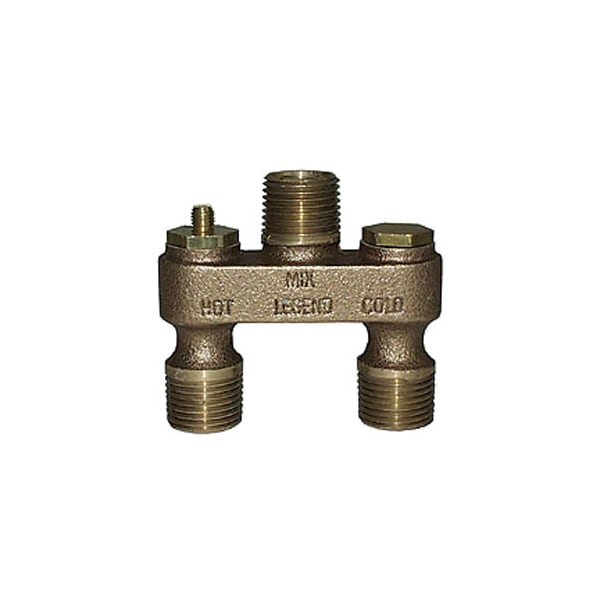

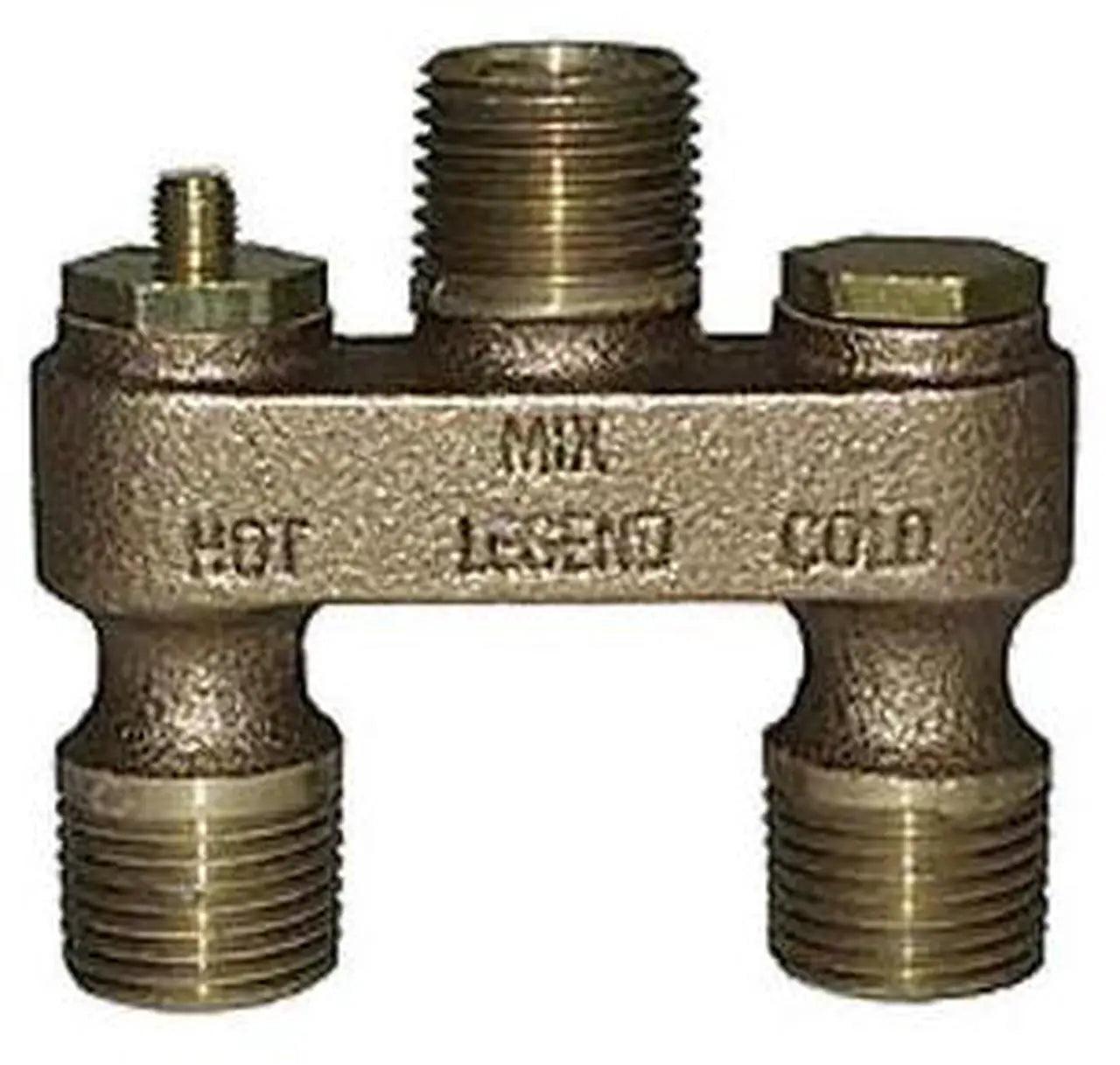

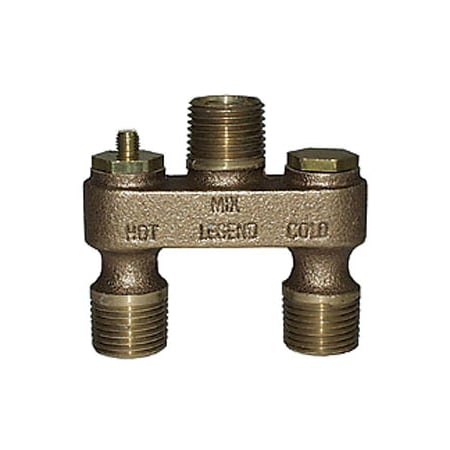

The LEGEND VALVE 111-154 is a T-20A anti-sweat valve with a 1/2 in nominal size and MNPT x solder end style. Designed for oil and water media, it features a manual gear operator actuator and a bronze body. The valve is adjustable down from 30% hot to 0% (100% cold).

• Adjustable down from 30% hot to 0% (100% cold)
• All connections are combination 1/2 in MIP or 1/2 in solder
• Features brass cold plug, hot plug, regulating cartridge, adjustment screw

Product Highlights

This anti-sweat valve is suitable for toilet tanks and offers adjustable temperature control.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 111-154
• Country of Origin: Import

Technical Specifications

• Actuator Type: Manual Gear Operator
• Body Material: Bronze
• End Style: MNPT x Solder
• Media: Oil/Water
• Nominal Size: 1/2 in
• Pressure Rating: 125 psi
• Series: T-20A
• Softgoods Material: Buna-N Rubber Plug O-Ring
• Temperature Rating: 180 deg F
• Manufacturer: Legend Valve
• Type: Specialty Valves
• Pipe Size: 1/2"
• Country of Origin: Indonesia
• Cold working pressure (CWP): 125 CWP
• Saturated steam (WSP): N/A
• Connection: MPT x Comp
