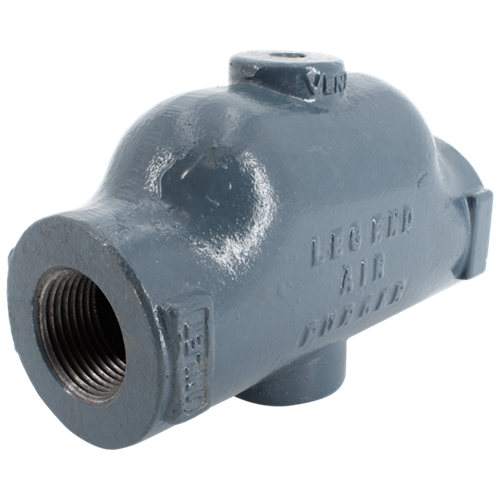

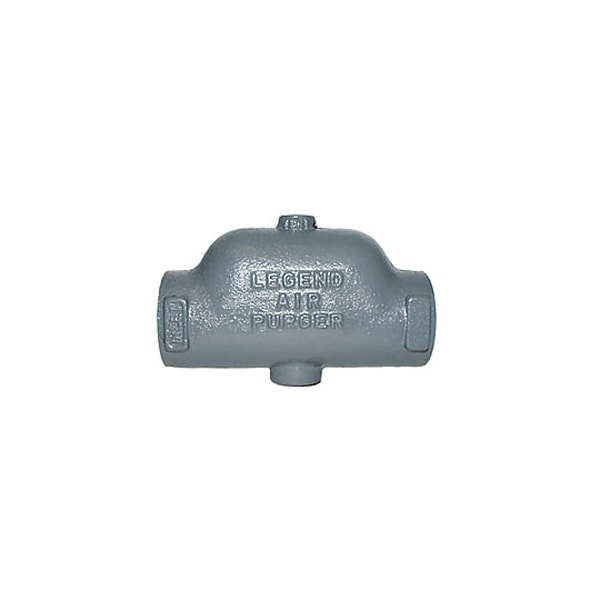

Legend Valve 110-346 T-80 Air Purger 1-1/4 Inch

Product Description

The LEGEND VALVE 110-346 T-80 Air Purger is a 1-1/4 inch nominal FNPT cast iron unit designed for efficient air removal in heating and cooling systems. It operates at a pressure rating of 125 CWP and a maximum temperature of 275 degrees F. This unit features a 6 inch inlet to outlet length and a durable cast iron body.

• Cast iron body construction ensures durability.
• Rated for 125 CWP pressure and 275 degrees F maximum temperature.
• Features a 1-1/4 inch FNPT nominal connection.

Product Highlights

Durable cast iron air purger with 1-1/4 inch FNPT connection, suitable for systems up to 125 CWP and 275 degrees F.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-346
• Country of Origin: China

Technical Specifications

• Series: T-80
• Connection Type: FNPT
• Nominal Size: 1-1/4 inch
• Body Material: Cast Iron
• Pressure Rating: 125 CWP
• Temperature Rating: 275 deg F
• Inlet to Outlet Length: 6 in
• Country of Origin: China
• Connection Configuration: FNPT x FNPT; 1/8 inch FNPT Top, 1/2 inch FNPT Bottom
• Product Type: Air Purger
• System Rating: Glycol System
• Model: T-80
