Legend Valve 110-304 3/4 inches M x 1/2 inches F T-65 Straight Air Vent

Product Description

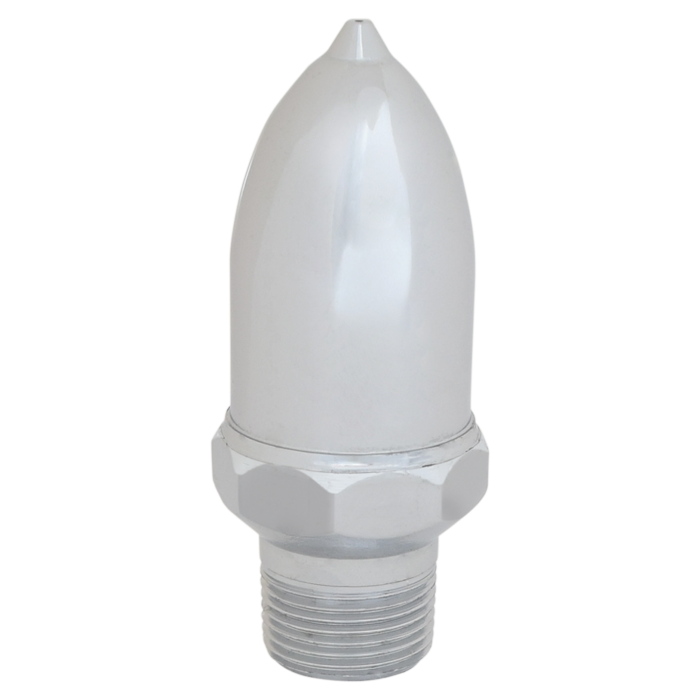

The LEGEND VALVE 110-304 is a 3/4" M x 1/2" F T-65 straight air vent with a chrome plated finish. It is designed for venting trapped air by means of steam displacement. It can be installed onto radiators or within the system for branch or main venting functions. Not suitable for hot water heating systems air removal.

• Features a 3/4" male x 1/2" female MNPT/FNPT configuration
• Premium chrome plated finish is durable and decorative
• Forged brass stem seat, end adapter, float pedestal, brass condensate drip-tongue, float body, phosphor bronze float baseplate

Product Highlights

The LEGEND VALVE 110-304 air vent is ideal for steam radiator and system venting applications. Its chrome plated finish provides durability and a decorative touch.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-304

Technical Specifications

• UPC: 662545008226
• Size: 3/4"
• Configuration: MNPT/FNPT
• ITEM NUMBER: 110-304
• Manufacturer: Legend Valve
• Item model number: T-65
• Pressure Rating: 10 psi
• Series: T-65
• Connection Type: 3/4 in MNPT x 1/2 in FNPT
• Material: Brass
• Finish: Polished Chrome
• Domestic/Import: Import
