Legend Valve 110-247 1-1/2 inch T-435Yb Radiator Gate

Product Description

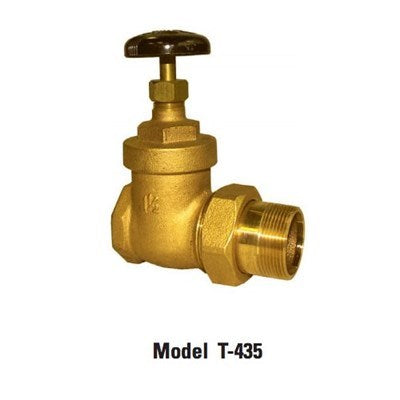

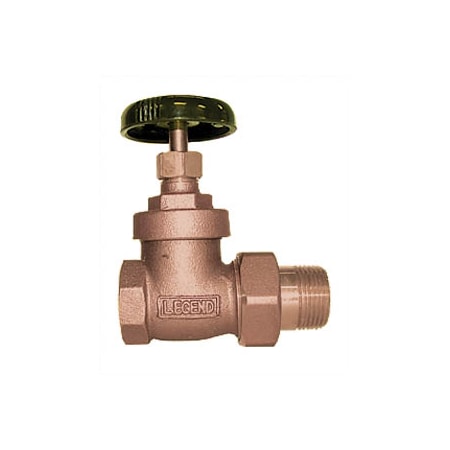

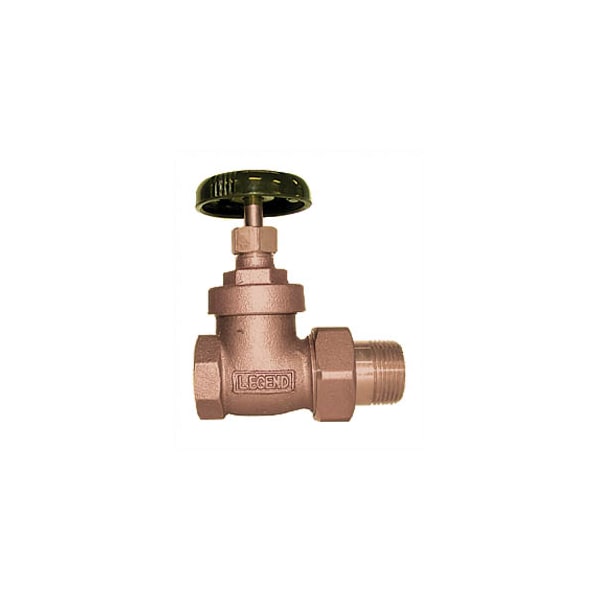

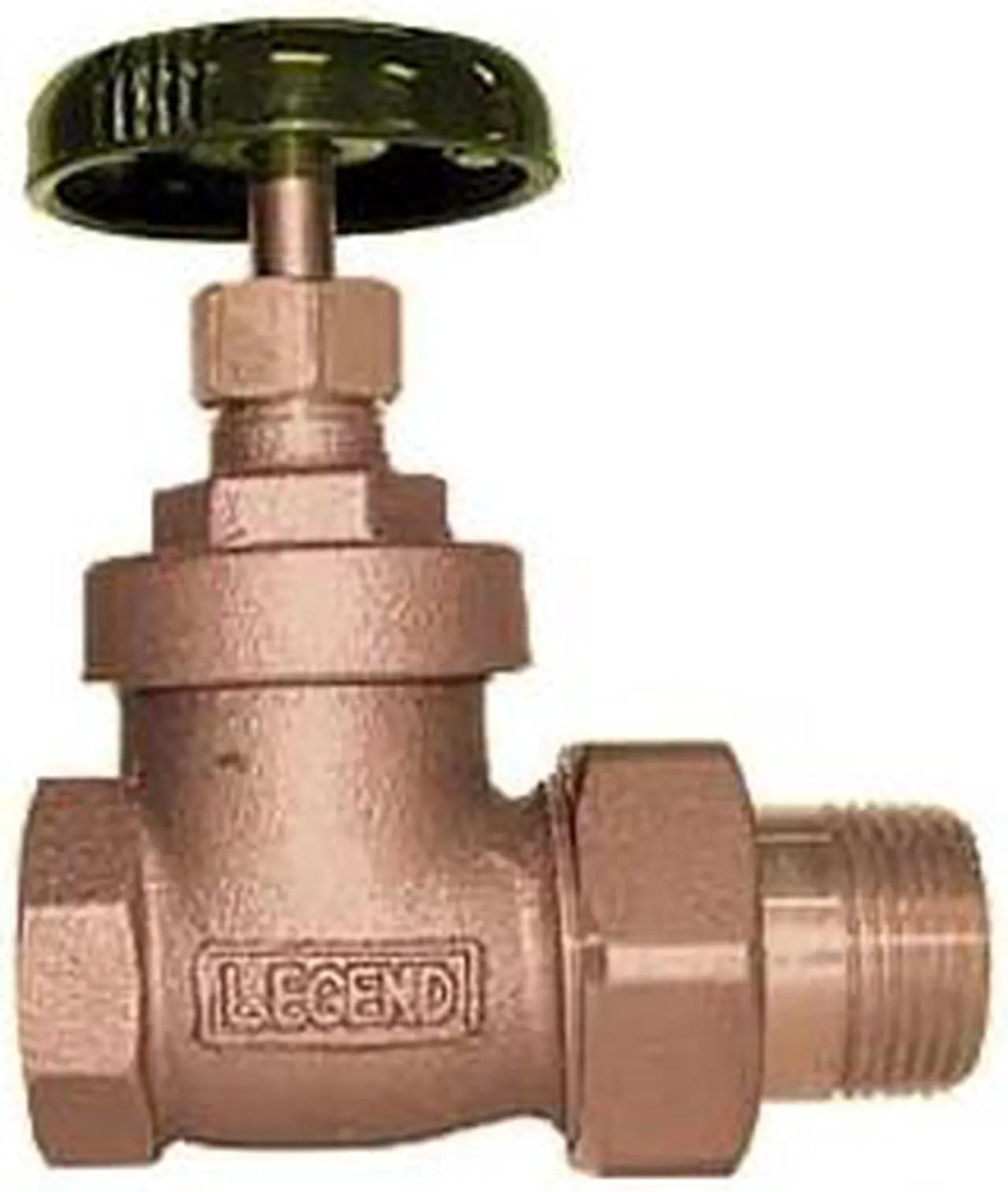

The LEGEND VALVE 110-247 is a T-435YB Series Steam Radiator Gate Valve designed for radiator systems and general plumbing. This 1-1/2 inch nominal valve features MNPT x FNPT end connections and a yellow brass body with forged brass trim. It is rated for 120 psi WSP pressure and utilizes a handle actuator for precise shutoff. The valve incorporates PTFE packing softgoods and has an inlet to outlet length of 4.88 inches.

• Rated for 120 psi WSP and 200 psi WOG pressure.
• Constructed with a yellow brass body and forged brass trim for durability.
• Features MNPT x FNPT end style and a handle actuator for control.

Product Highlights

Durable yellow brass gate valve for steam radiator and general plumbing applications, offering precise shutoff.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-247
• Country of Origin: China

Technical Specifications

• Actuator Type: Handle
• Body Material: Yellow Brass
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 4.88 in
• Nominal Size: 1-1/2 in
• Working Pressure: 120 psi WSP / 200 psi WOG
• Series: T-435YB
• Softgoods Material: PTFE Packing
• Top to Inlet Center: 5.18 in
• Trim Material: Forged Brass
• Valve Type: Gate Valve
