Legend Valve 110-246 T-435YB Radiator Gate 1-1/4 inches

Product Description

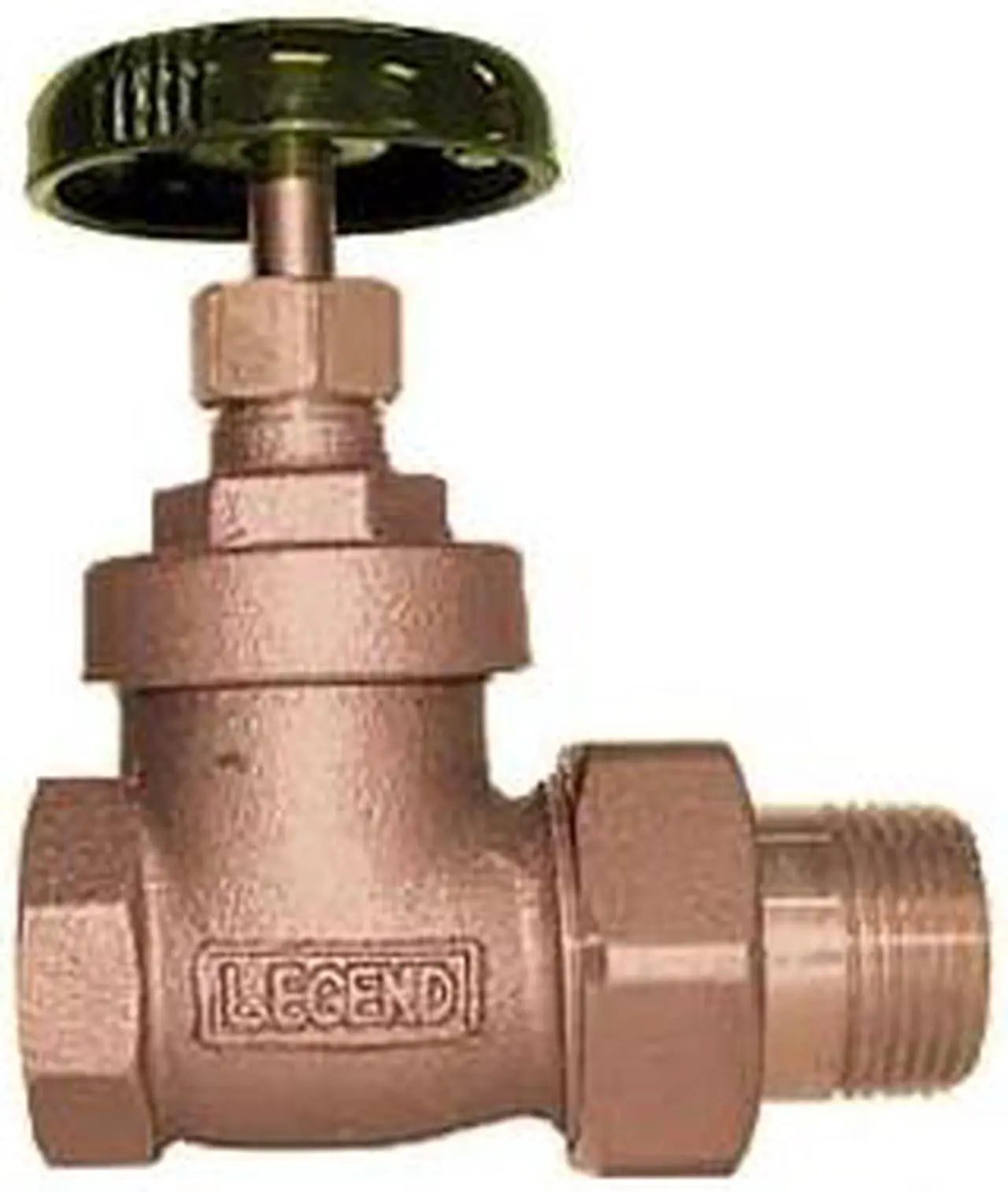

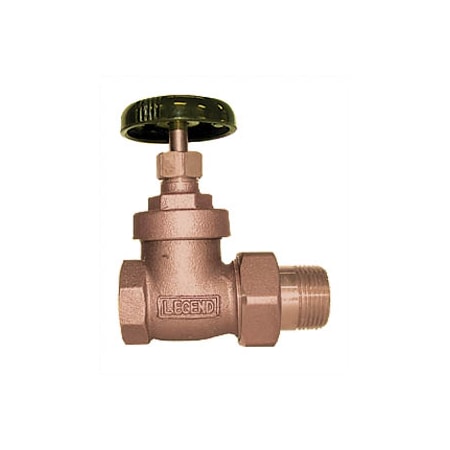

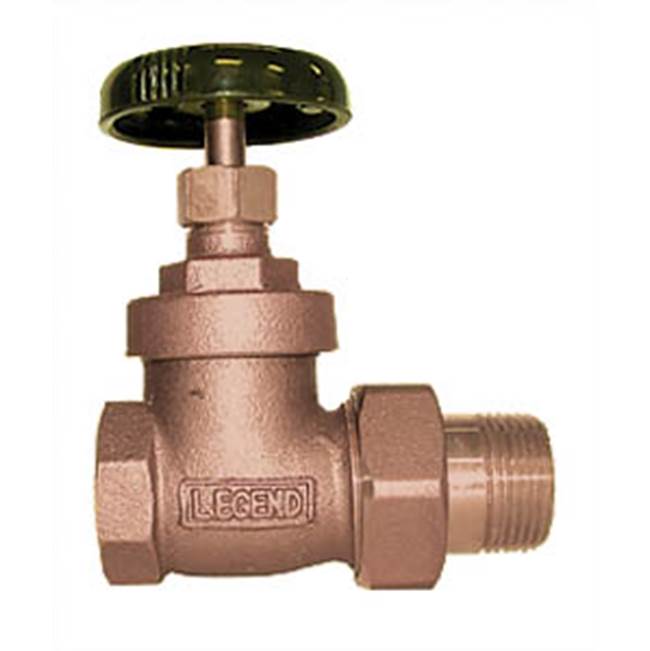

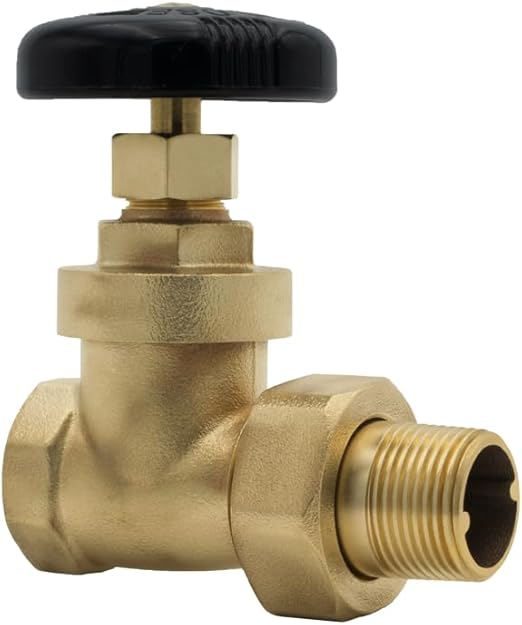

The LEGEND VALVE 110-246 T-435YB Radiator Gate Valve is a 1-1/4 inch nominal valve designed for steam radiator applications. Featuring a yellow brass body and forged brass trim, this handle-actuated valve has an MNPT x FNPT end style. It is rated for 120 psi WSP and 200 psi WOG, and includes PTFE packing for reliable sealing. Its robust construction ensures durability in demanding environments.

• 120 psi WSP/200 psi WOG pressure rating for steam and water applications.
• Constructed with a durable yellow brass body and forged brass trim.
• Features an MNPT x FNPT end style and handle actuator for easy operation.

Product Highlights

Durable yellow brass radiator gate valve with handle operation, suitable for steam systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-246
• Country of Origin: China

Technical Specifications

• Series: T-435YB
• Connection Type: MNPT x FNPT
• Size: 1-1/4 in
• Actuator Type: Handle
• Body Material: Yellow Brass
• Trim Material: Forged Brass
• Pressure Rating: 120 psi WSP, 200 psi WOG
• Packing Material: PTFE Packing
• Top to Inlet Center Dimension: 4.49 in
• Inlet to Outlet Length: 4.38 in
• Finish: No Finish Group
• Product Type: Gate Valve
