Legend Valve 110-244 T-435YB Radiator Gate 3/4 inch

Product Description

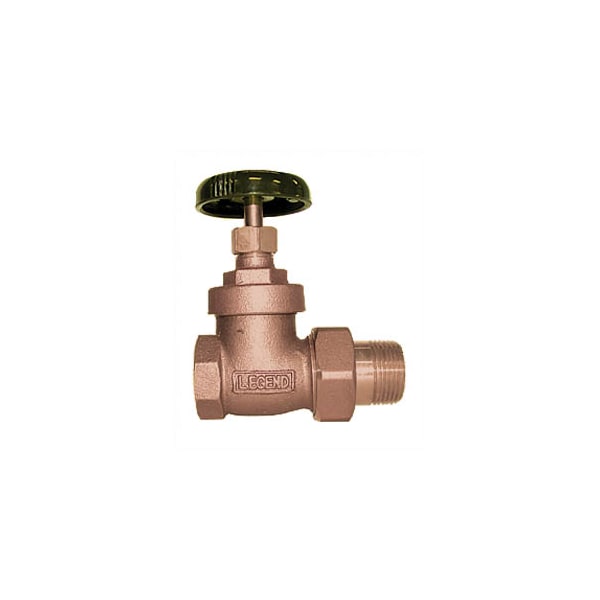

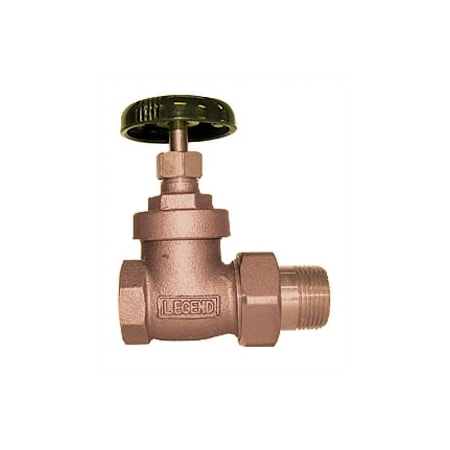

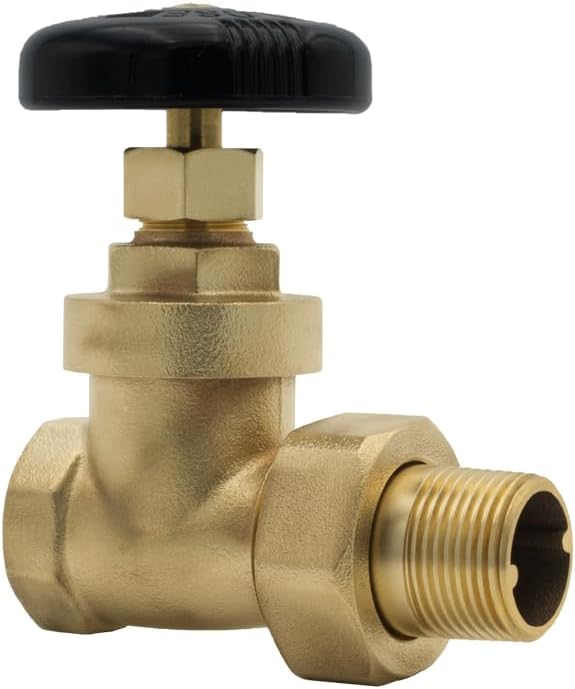

The LEGEND VALVE 110-244 is a T-435YB Series radiator gate valve, featuring a 3/4 inch nominal size and MNPT x FNPT end style. Designed for steam and hot water heating systems, this valve operates with a handle actuator and is constructed with a yellow brass body and forged brass trim. It utilizes PTFE packing softgoods and is rated for 120 psi WSP pressure, ensuring reliable flow control in heating applications.

• 120 psi WSP/200 psi WOG pressure rating for various applications.
• Features a yellow brass body and forged brass trim for durability.
• Designed with a handle actuator and MNPT x FNPT end style for easy installation.

Product Highlights

Durable yellow brass radiator gate valve with a compact design, ideal for steam and hot water heating systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-244
• Country of Origin: China

Technical Specifications

• Series: T-435YB
• End Style: MNPT x FNPT
• Manufacturer: LEGEND VALVE
• Nominal Size: 3/4 in
• Actuator Type: Handle
• Body Material: Yellow Brass
• Trim Material: Forged Brass
• Domestic/Import: Import
• Pressure Rating: 120 psi WSP
• Softgoods Material: PTFE Packing
• Top to Inlet Center: 3.46 in
• Inlet to Outlet Length: 3.54 in
• Product Type: Radiator Valves
• Model Number: T-435YB
• Part Number: 110-244
• Country of Origin: China
• Finish: Brass
