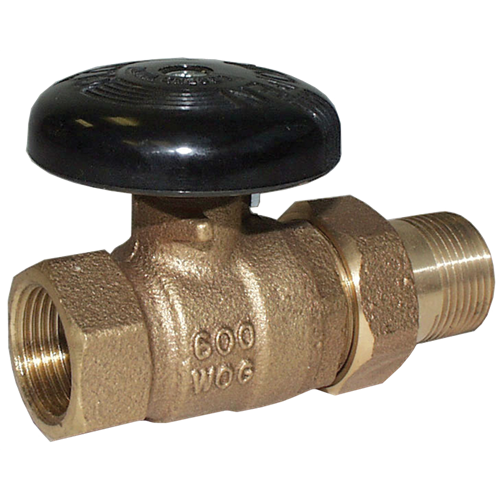

Legend Valve 110-214 T-425 Circulator Valve 3/4 inches

Product Description

The Legend Valve 110-214 T-425 circulator valve features a nominal size of three-fourths inches and a female National Pipe Thread end style. It is designed for use with gas, oil, and water media. This valve has a handle actuator, a bronze body, and a forged brass trim. The pressure rating is 600 psi, making it suitable for various applications.

• Constructed of heavy-duty bronze for durability
• Features male union for 100% shut-off and one-fourth turn flow control
• Compatible with forced hot water heating systems with pressure up to 60 lbs

Product Highlights

This circulator valve is ideal for heating systems, providing reliable flow control and efficient operation.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 110-214

Technical Specifications

• Actuator Type: Handle
• Body Material: Bronze
• End Style: FNPT
• Inlet to Outlet Length: 2-3/8 inches
• Media: Gas/Oil/Water
• Nominal Size: 3/4 inches
• Pressure Rating: 600 psi
• Series: T-425
• Softgoods Material: PTFE Seat, Stem Packing
• Top to Inlet Center: 2-3/8 inches
• Trim Material: Forged Brass
• Type: Straight
• Standards: 150 WSP, 400 CWP
• Connection Type: FNPT x FNPT
• Country of Origin: Taiwan, Province of China
