Product Description

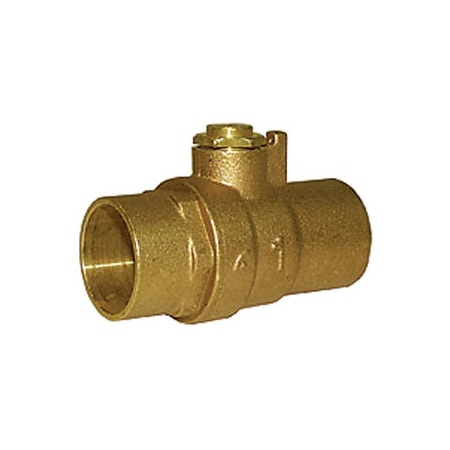

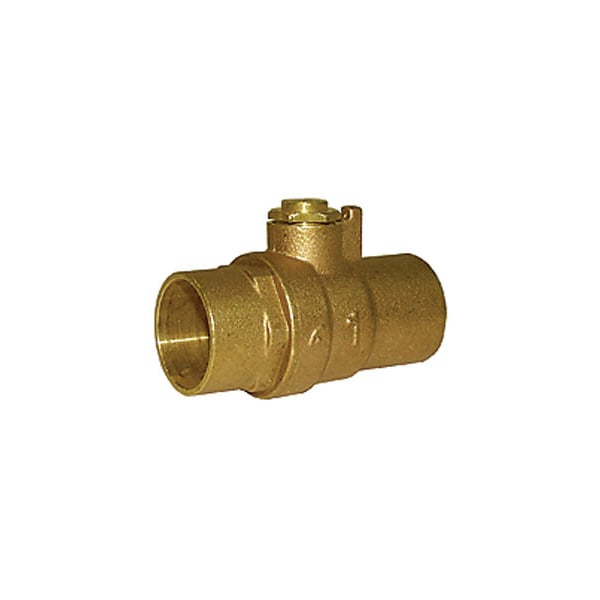

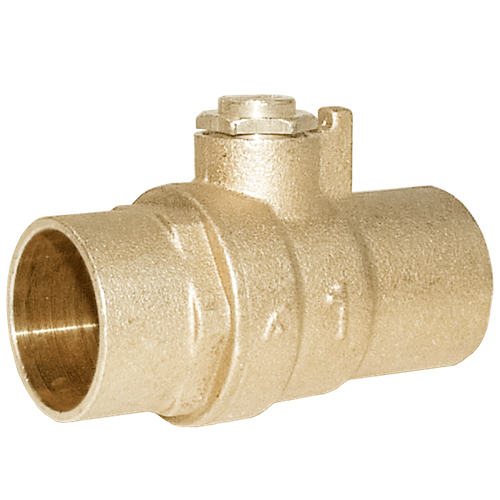

The LEGEND VALVE 110-155 S-439 Balancing Valve is a 1 inch nominal valve designed for precise flow control in gas, oil, and water applications. Featuring a durable brass body and trim, it is rated for up to 400 psi pressure. The valve has a C end style connection, an inlet to outlet length of 3.07 inches, and a top to inlet center measurement of 0.6 inches. Its PTFE stem packing seat ensures reliable operation.
- Ball-type with screwdriver-slot operator for easy adjustment
- 100% bubble-tight shutoff ensures secure sealing
- Constructed with brass stem, brass stem gland screw, PTFE stem packing, forged brass body, two PTFE seats, brass ball, and forged brass end adapter
Product Highlights
Durable brass balancing valve with 400 psi rating and bubble-tight shutoff for gas, oil, and water systems.
Product Information
Standard Information
-
Brand: LEGEND VALVE
-
Manufacturer Part Number: 110-155
-
Country of Origin: USA
Technical Specifications
-
Body Material: Brass
-
End Style: C
-
Inlet to Outlet Length: 3.07 in
-
Media: Gas/Oil/Water
-
Nominal Size: 1 in
-
Pressure Rating: 400 psi
-
Series: S-439
-
Stem Packing Material: PTFE Stem Packing Seat
-
Top to Inlet Center: 0.6 in
-
Trim Material: Brass
-
Standards: 150 WSP, 400 CWP
-
Connection Type: Sweat x Sweat
-
Seat Material: PTFE
-
Stem Material: PTFE
-
Type: Purge and Balancing Valve
-
Height: 2.38 inches
-
Width: 2.38 inches
