Legend Valve 110-137 T-435 Radiator Gate Valve 1-1/2 IN

Product Description

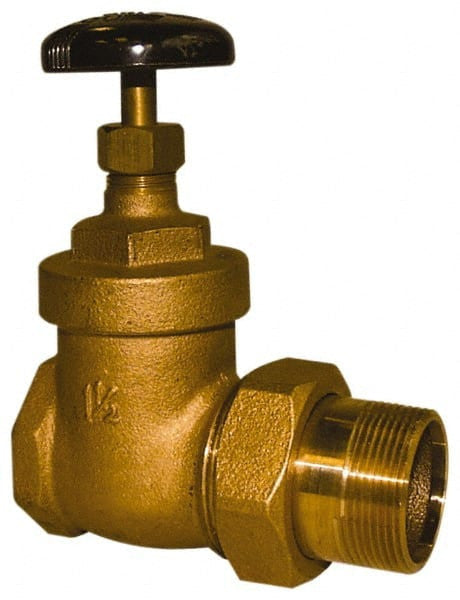

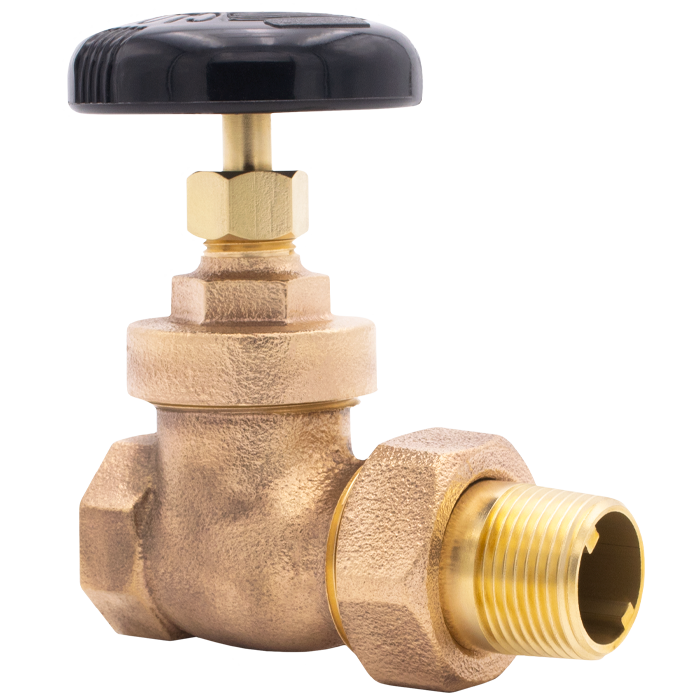

The LEGEND VALVE 110-137 Model T-435 is a non-rising stem radiator gate valve with a nominal size of 1-1/2 IN. It features FNPT x MNPT connection type and a pressure rating of 200 PSI (WOG) Non-Shock, 125 PSI (WSP). The valve has a bronze body, a phenolic handle, and a forged brass stem. Designed for radiator applications, this valve ensures reliable flow control.

• Non-Rising Stem
• Radiator Gate Valve
• Bronze body material

Product Highlights

This radiator gate valve is suitable for various plumbing and heating systems, providing shutoff capabilities. It conforms to ISO 9002 standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-137

Technical Specifications

• Series/Model: Model T-435
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT X MNPT
• Pressure Rating: 200 PSI (WOG) Non-Shock, 125 PSI (WSP)
• Body Material: Bronze
• Handle Material: Phenolic
• Stem Material: Forged Brass
• Trim Material: Bronze Disc
• Packing Material: Teflon
• Gland: Brass
• Industry Standards: ISO 9002 Registered
• Lead Free: No
• Inlet Center To Top Of Handle: 5.4 IN
• Handle Diameter: 2.31 IN
• Ratings: 125 WSP 200 CWP
• Size: 1-1/2"
• Configuration: FNPT x MNPT
• Brand: Legend Valve
• Manufacturer Part #: 110-137
