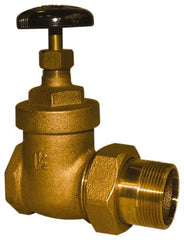

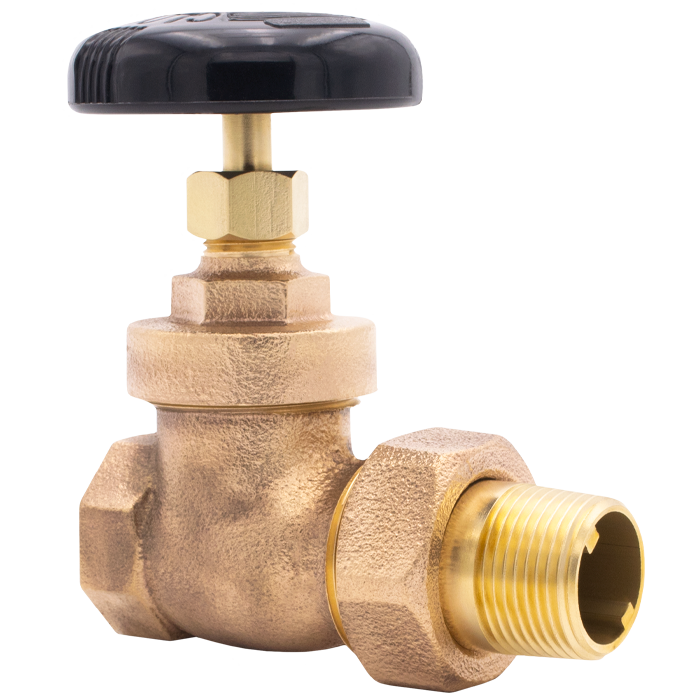

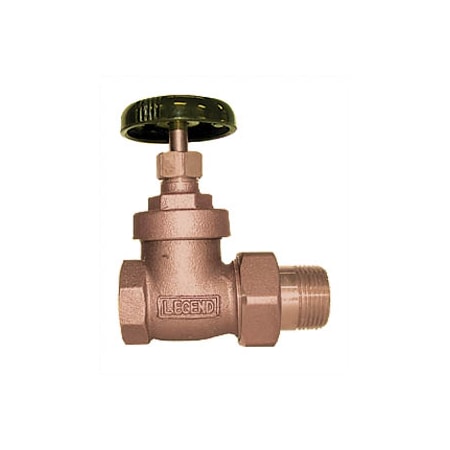

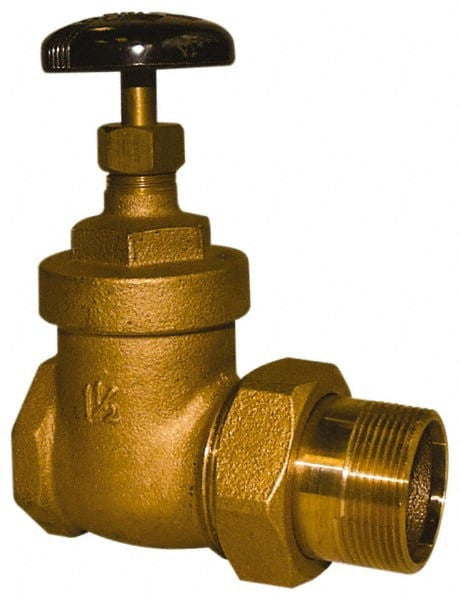

Legend Valve 110-136 T-435 radiator gate val 1-1/4 inch

Product Description

The LEGEND VALVE 110-136 is a heavy-duty T-435 series radiator gate valve, featuring a 1-1/4 inch nominal size and MNPT x FNPT end style. Constructed with a bronze body and forged brass trim, it is designed for gas, oil, steam, and water media. This valve operates with a handwheel actuator and is rated for 200 psi pressure, making it suitable for various industrial and commercial applications.

• Constructed of heavy-duty bronze with a screwover bonnet, non-rising stem, solid wedge disc, and integral seats.
• Each valve undergoes double testing, including air under water, in both open and closed positions.
• Features a bronze union nut and tailpiece, with a phenolic handle and steel handle screw.

Product Highlights

Heavy-duty bronze construction with double testing for reliability.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-136
• Country of Origin: Import

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: MNPT x FNPT
• Media: Gas/Oil/Steam/Water
• Nominal Size: 1-1/4 in
• Pressure Rating: 200 psi
• Series: T-435
• Softgoods Material: EPDM Disc/PTFE Packing
• Trim Material: Forged Brass
• Type: Heavy Duty
• Standards: 125 WSP, 200 CWP
• UPC: 662545002439
• Valve Operation: Manual
• Country of Origin: United States
• Valve Type: Steam Gate Valve
• Handle Material: Bronze
