Legend Valve 110-135 T-435 radiator gate valve 200 psi WOG 1 inch 110135

Product Description

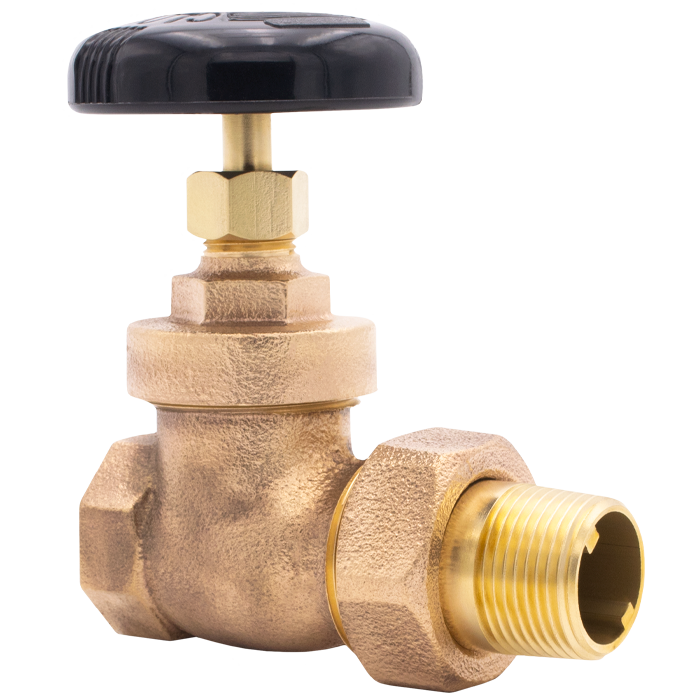

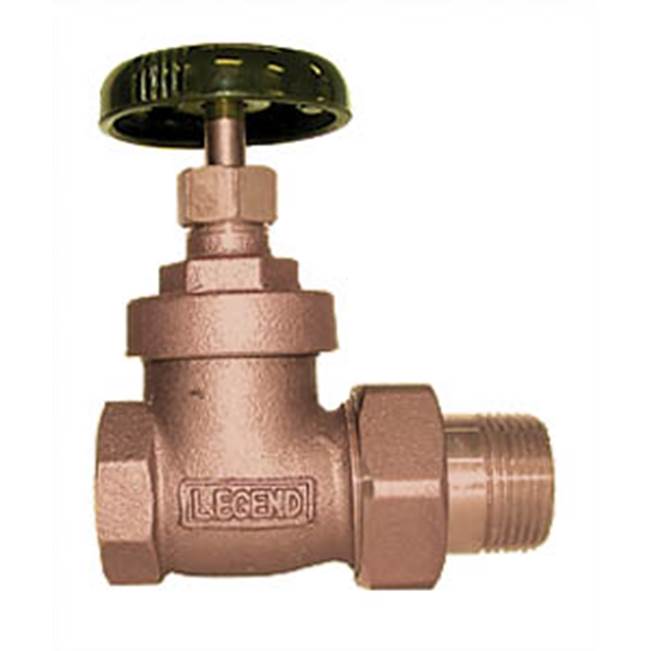

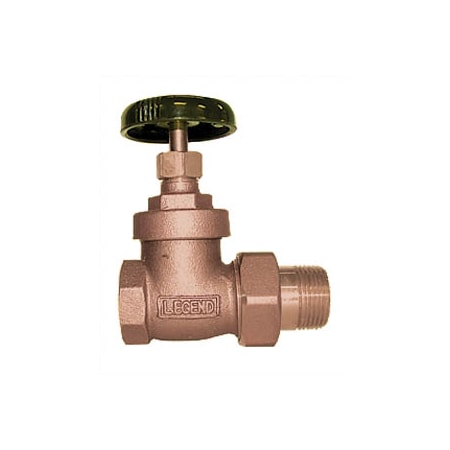

The LEGEND VALVE 110-135 is a T-435 series radiator gate valve designed for steam media applications. This 1 inch nominal valve features MNPT x FNPT end connections and a 200 psi WOG pressure rating. Constructed with a cast bronze body and forged brass trim, it utilizes a handle actuator for operation. The valve measures 3.95 inches from inlet to outlet and 3.83 inches from top to inlet center, meeting ISO 9002 standards for quality in plumbing and HVAC systems.

• Features PTFE packing for reliable sealing.
• Rated for 120 psi WSP saturated steam and 200 psi WOG non-shock.
• Equipped with a durable bronze disc.

Product Highlights

Durable cast bronze body with forged brass trim and a bronze disc, operated by a handle actuator.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-135
• Country of Origin: Imported

Technical Specifications

• Actuator Type: Handle
• Body Material: Cast Bronze
• End Style: MNPT x FNPT
• Inlet to Outlet Length: 3.95 in
• Media: Steam
• Nominal Size: 1 in
• Pressure Rating: 200 psi WOG
• Series: T-435
• Top to Inlet Center: 3.83 in
• Trim Material: Forged Brass
• WSP Rating: 125 psi
• CWP Rating: 200 psi
• Equivalent Part Number: 110135
• Dimensions (L x W x H): 14.5 x 13.6 x 5.8 Centimetres
• UPC: 662545002422
• Model Number: T-435
• Valve Type: Radiator Gate Valve
• Configuration: Straight
• Finish: No Finish Group
