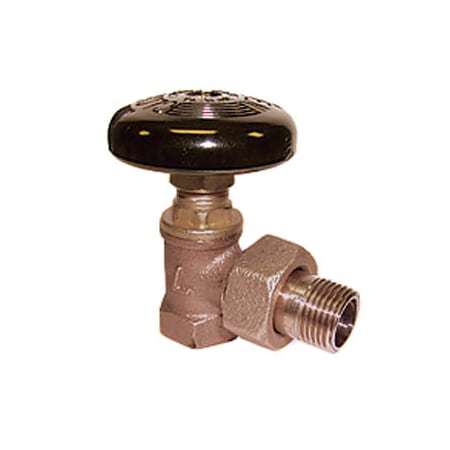

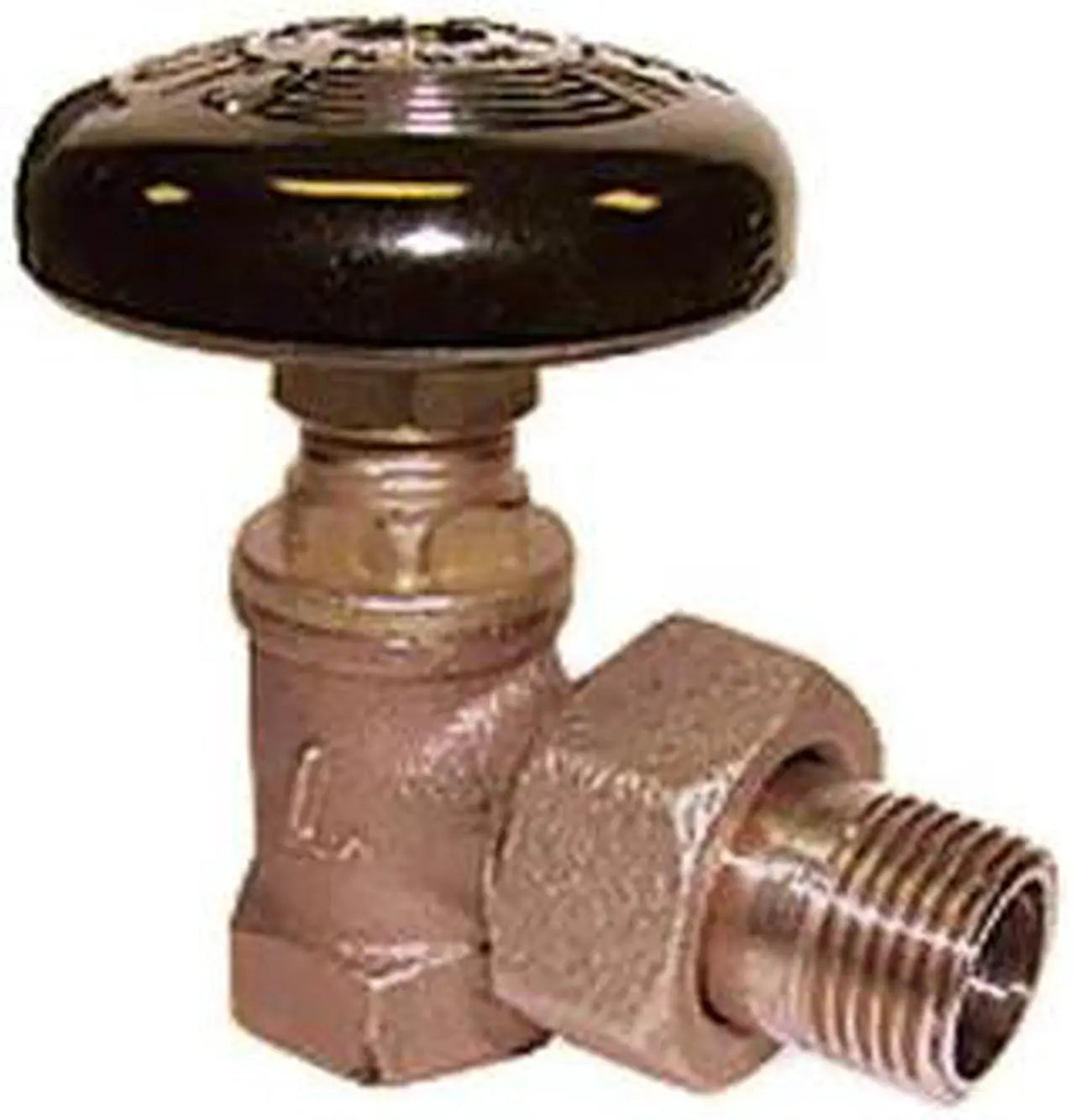

Legend Valve 110-117 T-437 Radiator Valve 1-1/2 inches Angle

Product Description

The LEGEND VALVE 110-117 T-437 Radiator Valve is a heavy-duty angle valve designed for hot water applications, as well as plumbing, industrial, commercial, and hydraulic systems. This 1-1/2 inch nominal valve features MNPT x FNPT end connections and a bronze body with bronze trim. It operates at a pressure rating of 60 psi and includes an EPDM disc/PTFE packing for reliable performance. It is ISO 9002 certified.

• Union nut and tailpiece are made of bronze, with a phenolic handle and steel handle screw.
• Designed for hot water applications, plumbing, industrial, commercial, and hydraulic systems.
• Features EPDM disc/PTFE packing and is ISO 9002 certified.

Product Highlights

Heavy-duty bronze angle valve with handwheel actuator, suitable for various fluid systems up to 60 psi.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 110-117
• Country of Origin: Import

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Color: Yellow
• End Connection: MNPT x FNPT
• Media: Gas/Oil/Water
• Nominal Size: 1-1/2 in
• Pressure Rating: 60 psi
• Series: T-437
• Softgoods Material: EPDM Disc/PTFE Packing
• Trim Material: Bronze
• Type: Heavy Duty
• Application: Plumbing, Industrial, Commercial, Hydraulic System
• Body Configuration: Angle
• Handle Material: Phenolic
• Applicable Standard: ISO 9002
