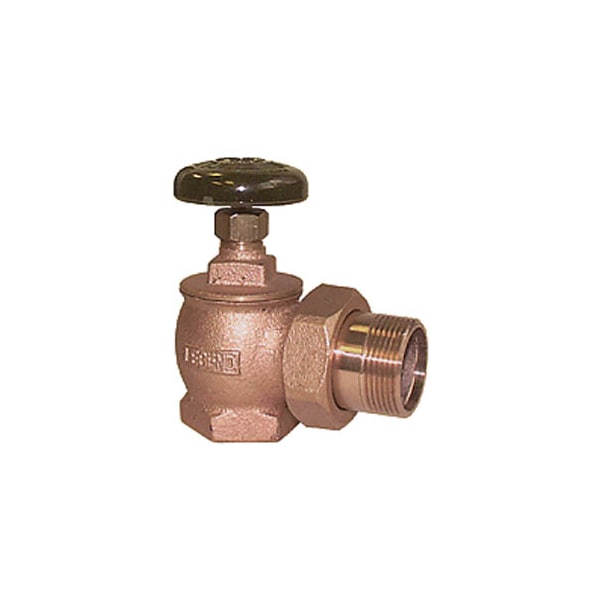

Legend Valve 110-103 1/2 T-431 Radiator Valve

Product Description

The Legend Valve 110-103 is a 1/2 inch T-431 radiator valve designed for efficient fluid control. This valve supports MNPT x FNPT end styles and is suitable for various media such as gas, oil, steam, and water. It features a handwheel actuator, making operation straightforward and reliable.

• Union nut and tailpiece constructed from bronze
• EPDM disc and PTFE packing for durability
• Pressure rating of 15 psi for standard applications

Product Highlights

This valve is ideal for steam applications and is ISO 9002 certified. With a robust bronze body and forged brass trim, it ensures long-lasting performance.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 110-103

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: MNPT x FNPT
• Media: Gas/Oil/Steam/Water
• Nominal Size: 1/2 inch
• Pressure Rating: 15 psi
• Series: T-431
• Softgoods Material: EPDM Disc/PTFE Packing
• Top to Inlet Center: 2.99 inches L Open x 2.66 inches L Close
• Trim Material: Forged Brass
