Legend Valve 108-030NL 3/4 x 10 MXF TM550 Multi-Turn NL (3/4 x 10)

Product Description

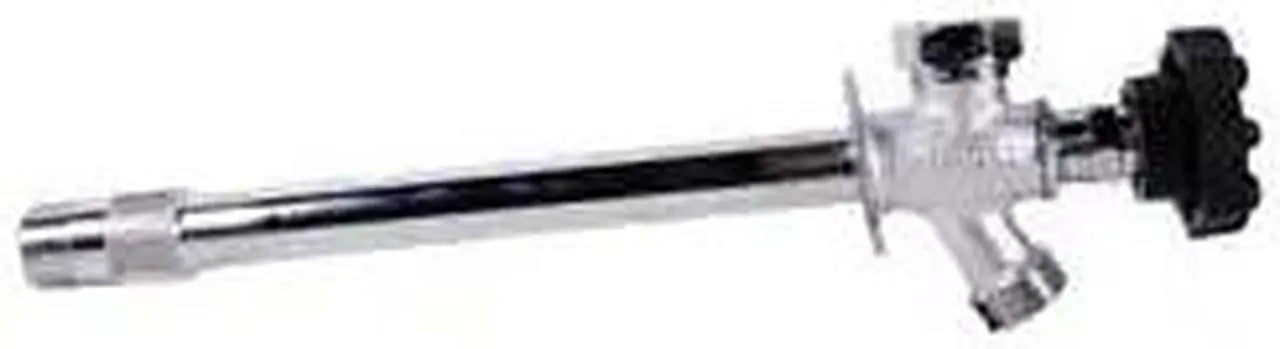

Legend Valve 108-030NL is a TM-550NL no-lead brass frostfree multi-turn sillcock with an integrated anti-siphon vacuum breaker. Sized 3/4 x 10 in with MNPT/FNPT end connections, it features a Softouch handwheel actuator, polished chrome plated brass body and trim, and a 125 psi CWP rating. The sillcock provides outdoor hose bibb service with a flow of 6.3 gpm at 25 psi and overall dimensions of approximately 15.88 in L x 3.4 in W.

• No-lead forged brass body and brass trim with polished chrome plating; nominal size 3/4 x 10 in
• Multi-turn Softouch handwheel actuator with integrated anti-siphon vacuum breaker for backflow protection
• 125 psi CWP pressure rating; flow 6.3 gpm at 25 psi; overall dimensions approx. 15.88 in L x 3.4 in W

Product Highlights

3/4 x 10 no-lead brass frostfree sillcock, MNPT/FNPT connections, Softouch handwheel, integrated vacuum breaker, 125 psi CWP

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 108-030NL
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• Manufacturer Part Number: 108-030NL
• Model / Series: TM-550NL
• Product Type: Frostfree sillcock (outdoor faucet)
• Nominal Size: 3/4 x 10 in
• Size: 3/4 x 10 in
• Connection Type: MNPT / FNPT
• Configuration: MXF (male x female)
• Body Material: Brass (no-lead)
• Trim Material: Brass
• Finish: Polished chrome plated brass
• Operation: Multi-turn
• Actuator Type: Handwheel
• Handle: Softouch (metal coated with thermoplastic rubber)
• Anti-Siphon: Integrated vacuum breaker
• Pressure Rating: 125 psi CWP
• Flow Rate: 6.3 gpm at 25 psi
• Dimensions: 15.88 in L x 3.4 in W
• Media: Liquid
• Type / Description: Multi-turn anti-siphon freeze-resistant sillcock
• Standards / Certifications: ANSI/ASME B1.20.1; ASSE 1019; cUPC Listed; UNS Alloy C6802; US Federal Public Law 111-380
• Country of Origin: Taiwan
• UPC: 662545114774
• Patented: Yes
