Product Description

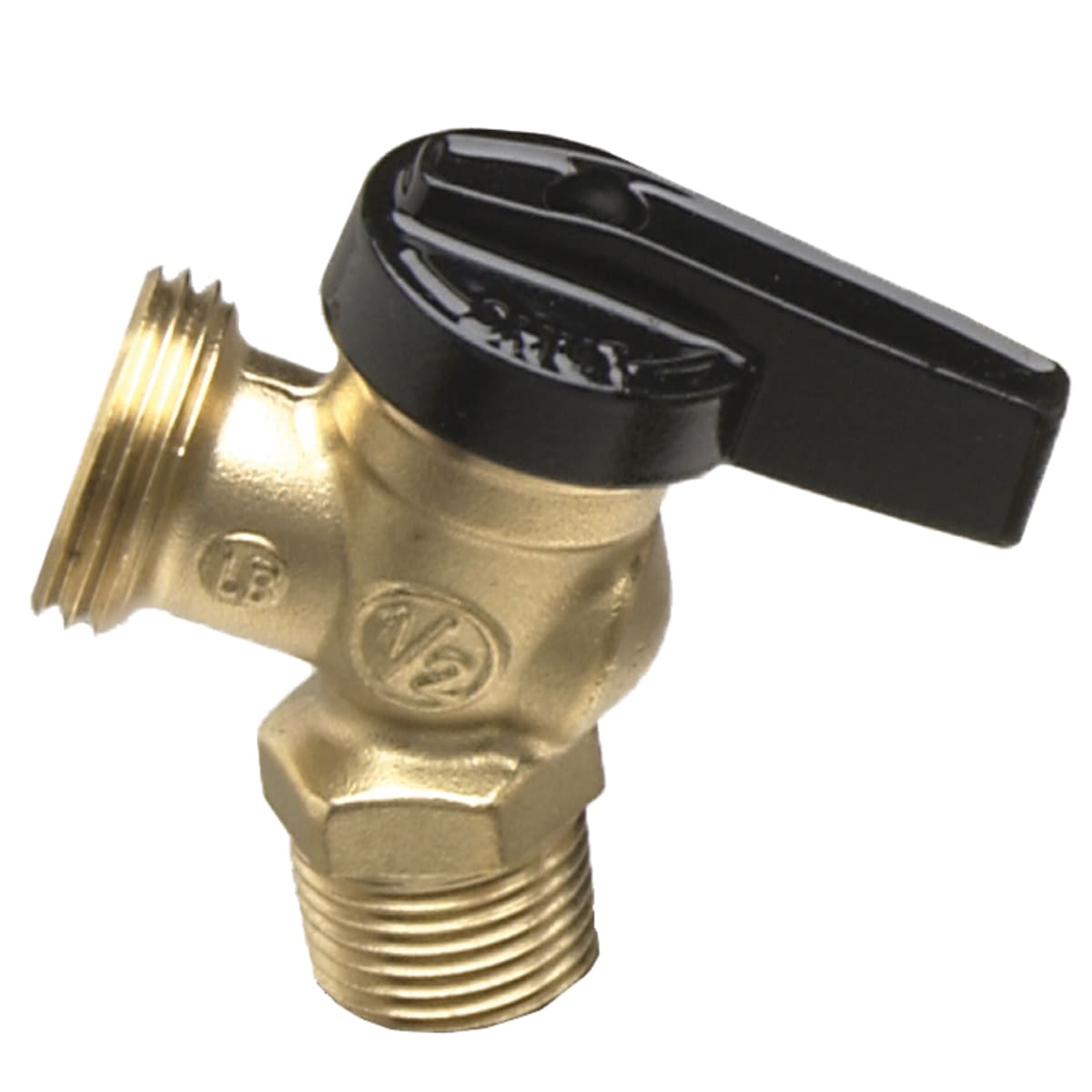

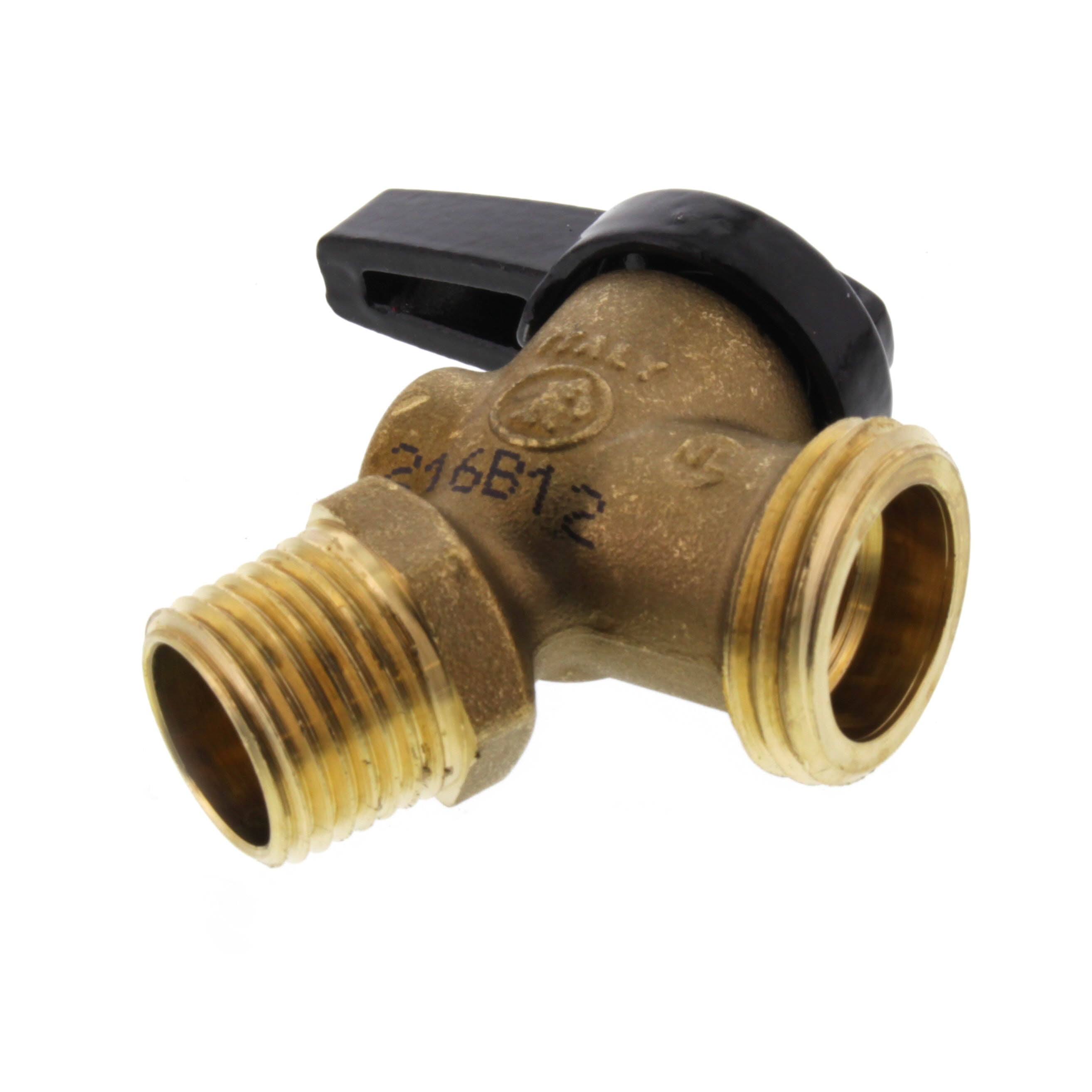

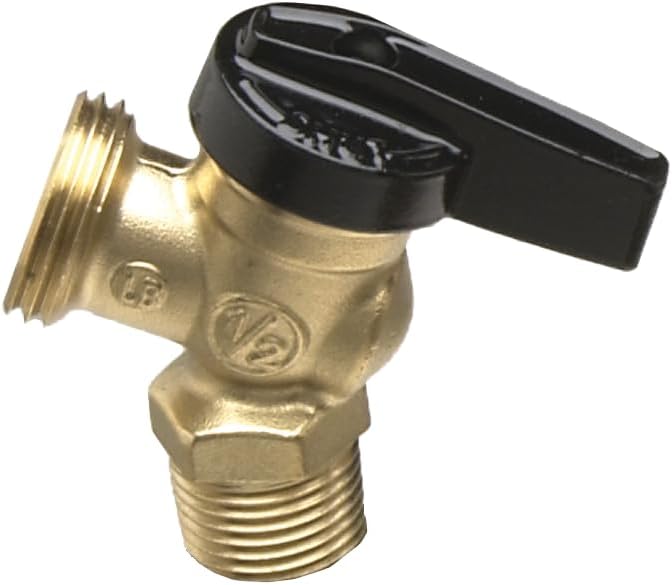

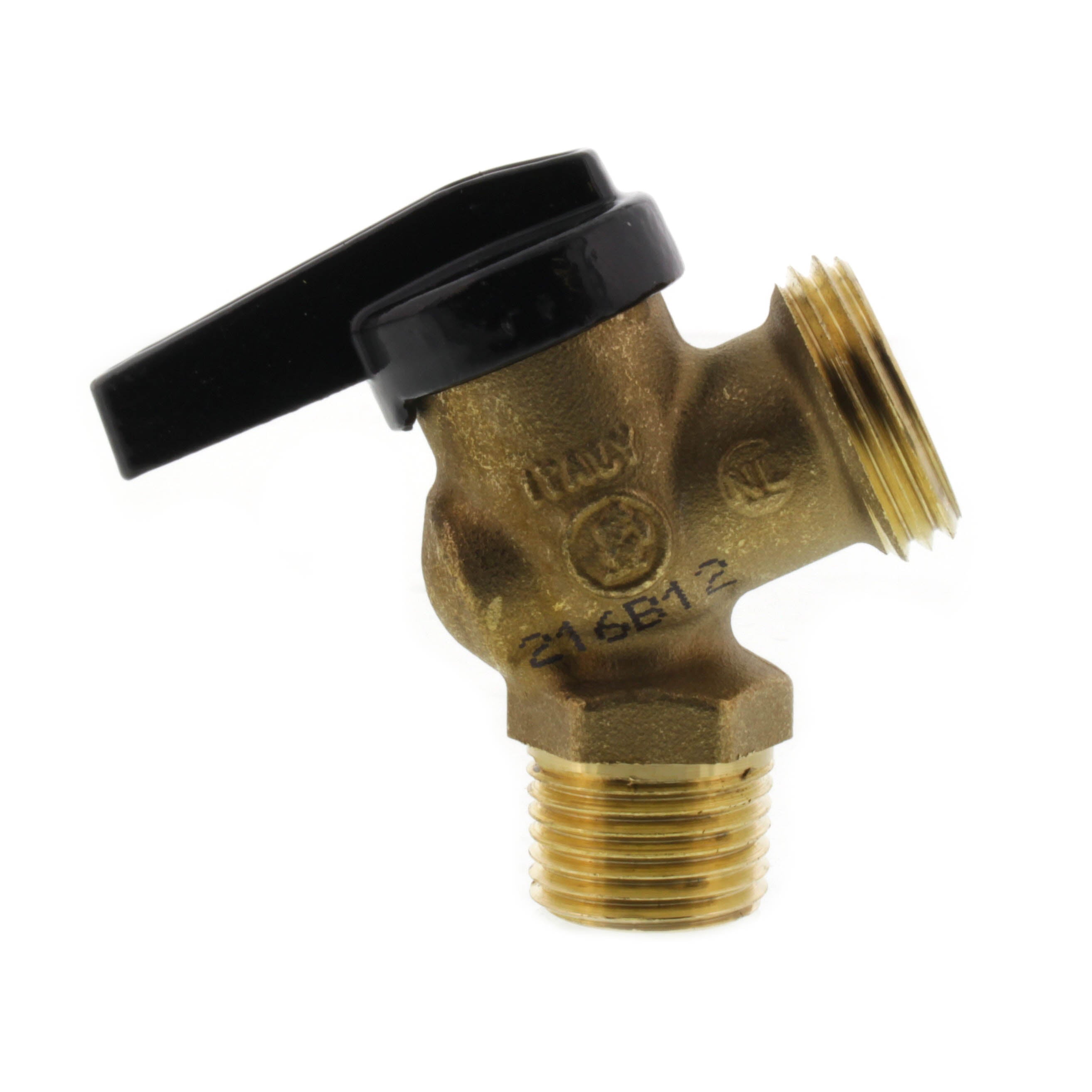

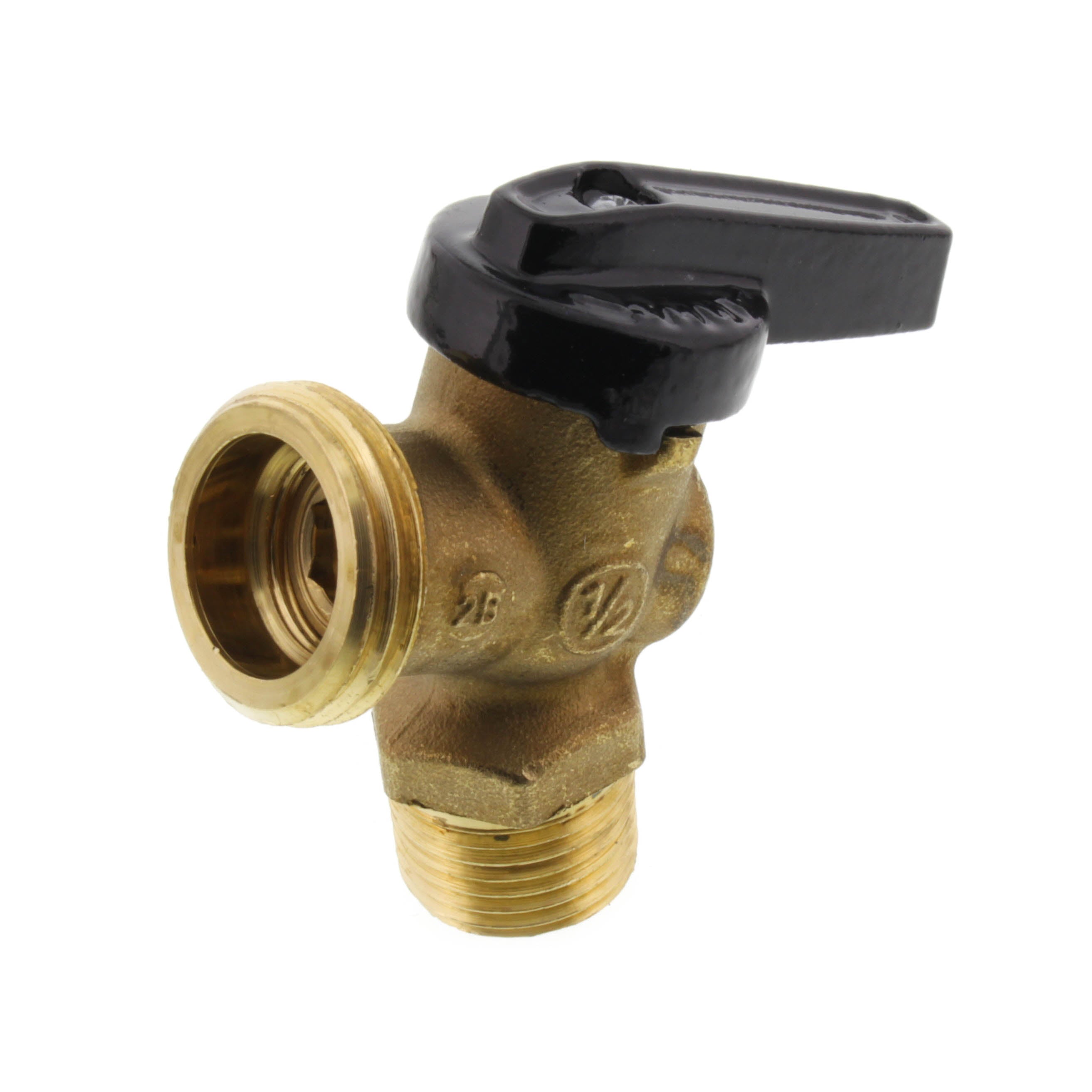

The Legend Valve 107-543NL boiler drain ball valve features a bubble-tight positive shut-off. With 1/4 turn actuation, this valve has a nominal size of 1/2 inch and end connections of male threaded x male garden hose threaded. Constructed of CW510L UNS C28500 forged brass, it is suitable for plumbing, commercial, and potable water applications.
- Forged brass construction eliminates casting related leaks
- More durable than traditional stop-type valve
- Compact design is ideal for confined applications
Product Highlights
This lead-free boiler drain ball valve offers superior flow characteristics and is ideal for various plumbing applications.
Product Information
Standard Information
-
Brand: Legend Valve
-
Manufacturer Part Number: 107-543NL
-
Country of Origin: Italy
Technical Specifications
-
Actuation Type: 1/4 Turn
-
Application: Plumbing, Commercial, Potable Water
-
Body Material: CW510L UNS C28500 Forged Brass
-
End Connection: Male Threaded x Male Garden Hose Threaded
-
Inclusions/Features: Polyamide Upstream Seat, PTFE Downstream Seat, Forged Brass Seat Retainer/Ball/Stem, EPDM Rubber O-Ring, Acetal Resin Anti-Friction Washer, Aluminum Handle, Carbon Steel Handle Fastener
-
Nominal Size: 1/2 Inch
-
Pressure Rating: 200 PSI CWP
-
Product Sub-Type: Drain Valve
-
Product Type: Pipes/Valves/Fittings
-
Type: Boiler, Bubble Tight Positive Shut-Off
-
Material: Lead Free Brass
-
Valve Type: Ball Valve
-
Certifications: ANSI/NSF 61-G, CSA, ANSI/ASME B1.20.1, B1.20.7
-
Connection Type: MNPT
-
Brand: Legend Valve
-
Manufacturer: Legend Valve
-
Outlet Connection Type: NPT
-
Number of Ports: 2
-
Outlet Connection Size: 0.5 Inches
-
Thread Type: NPT
-
Actuator Type: Handle
-
End Style: MNPT x C
-
Series: R-670NL
-
Softgoods Material: EPDM Rubber Stem O-Ring/PTFE Downstream Seat
-
Trim Material: Forged Brass
-
Finish: Brass
-
Lead Free: Yes
-
Inlet Type: MNPT
-
Outlet Type: Male Hose
