Legend Valve 107-474 1/2 S541FL 1/4 Turn Sillcock

Product Description

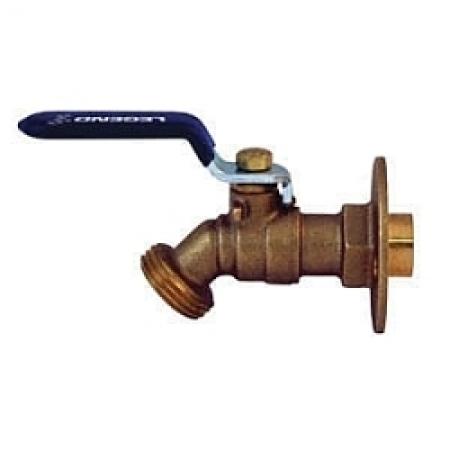

The LEGEND VALVE 107-474 is a flanged sillcock from the T-541FLG series, sized at 1/2 x 3/4 inches. Featuring a brass body and forged brass trim, this full-port valve is designed for water applications with a pressure rating of 125 psi. It uses a lever handle actuator and has a C x Male Garden Hose Thread end style.

• Smooth, quarter-turn lever operation.
• Full-pattern body with extended lever operator.
• Bubble-tight, self-cleaning ball closure.

Product Highlights

Ideal for residential, commercial, and industrial water applications. Compliant with ANSI/ASME B1.20.7 (MGHT) and ASME B16.18 (CTS) standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 107-474
• Country of Origin: Indonesia

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Brass
• End Style: C x Male Garden Hose Thread
• Media: Water
• Nominal Size: 1/2 x 3/4 in
• Port Type: Full
• Pressure Rating: 125 psi
• Series: T-541FLG
• Trim Material: Forged Brass
• Manufacturer: LEGEND VALVE
• Size: 1/2"
• Standards: ANSI/ASME B1.20.7 (MGHT) and ASME B16.18 (CTS)
• Connection Type: Sweat
