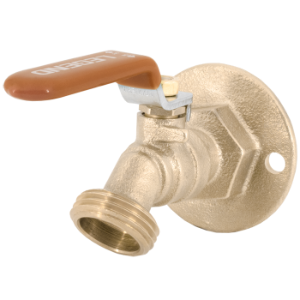

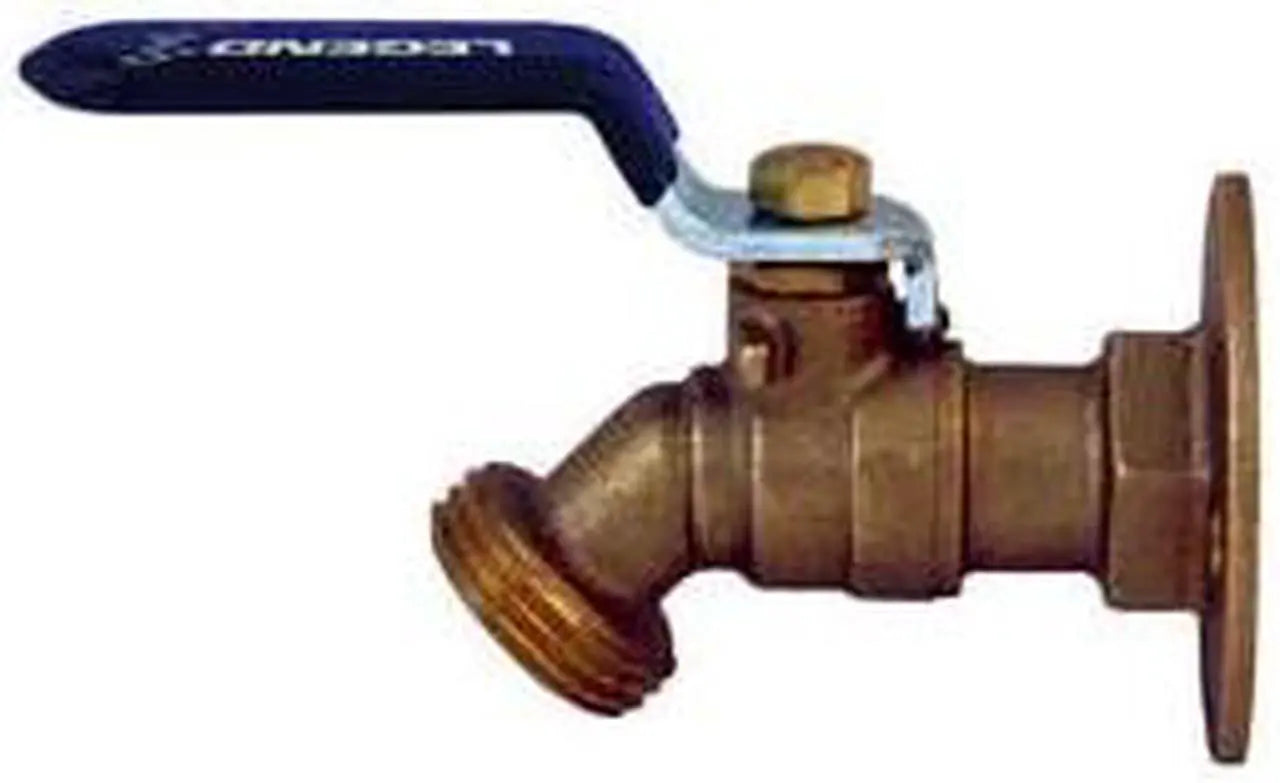

Legend Valve 107-464 1/2 T541fl 1/4 Turn Sillcock

Product Description

The LEGEND VALVE 107-464 ball valve flanged sillcock, part of the T-541FLG series, features quarter-turn lever operation. Designed for residential, commercial, and industrial water applications. The full-pattern body and no-kink hose outlet angle allows for ease of hose attachment. The bubble-tight, self-cleaning ball closure is more durable than a stop type closure, and the water-conserving ball design can be throttled.

• Smooth, quarter-turn lever operation
• Full-pattern body, extended lever operator and no-kink hose outlet angle
• Bubble-tight, self-cleaning ball closure
• Oversized sill flange with attachment holes

Product Highlights

This flanged sillcock is equipped with a stem packing and packing nut design. It has an oversized sill flange with attachment holes for a stable connection.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 107-464
• Country of Origin: Indonesia

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Brass
• End Style: FNPT x Male Garden Hose Threaded
• Media: Water
• Nominal Size: 1/2 x 3/4 in
• Port Type: Full
• Pressure Rating: 125 psi
• Series: T-541FLG
• Trim Material: Forged Brass
• Connection Type: FNPT
• Working Pressure, Non Shock (PSI): Cold working pressure (CWP): 125
• END CONNECTION: FEMALE THREADED X MALE GARDEN HOSE THREADED
• HANDLE MATERIAL: SAE 1010R CARBON STEEL
• STEM PACKING SEAL MATERIAL: POLYFLON M-392 PTFE
• END TO END DISTANCE: 2.97 INCH
• ACTUATION TYPE: 1/4 TURN
• SEAT MATERIAL: POLYFLON M-392 PTFE
• MODEL: T-541FLG
