Legend Valve 107-451 T-549CP Sillcock Valve 1/2 inches FNPT

Product Description

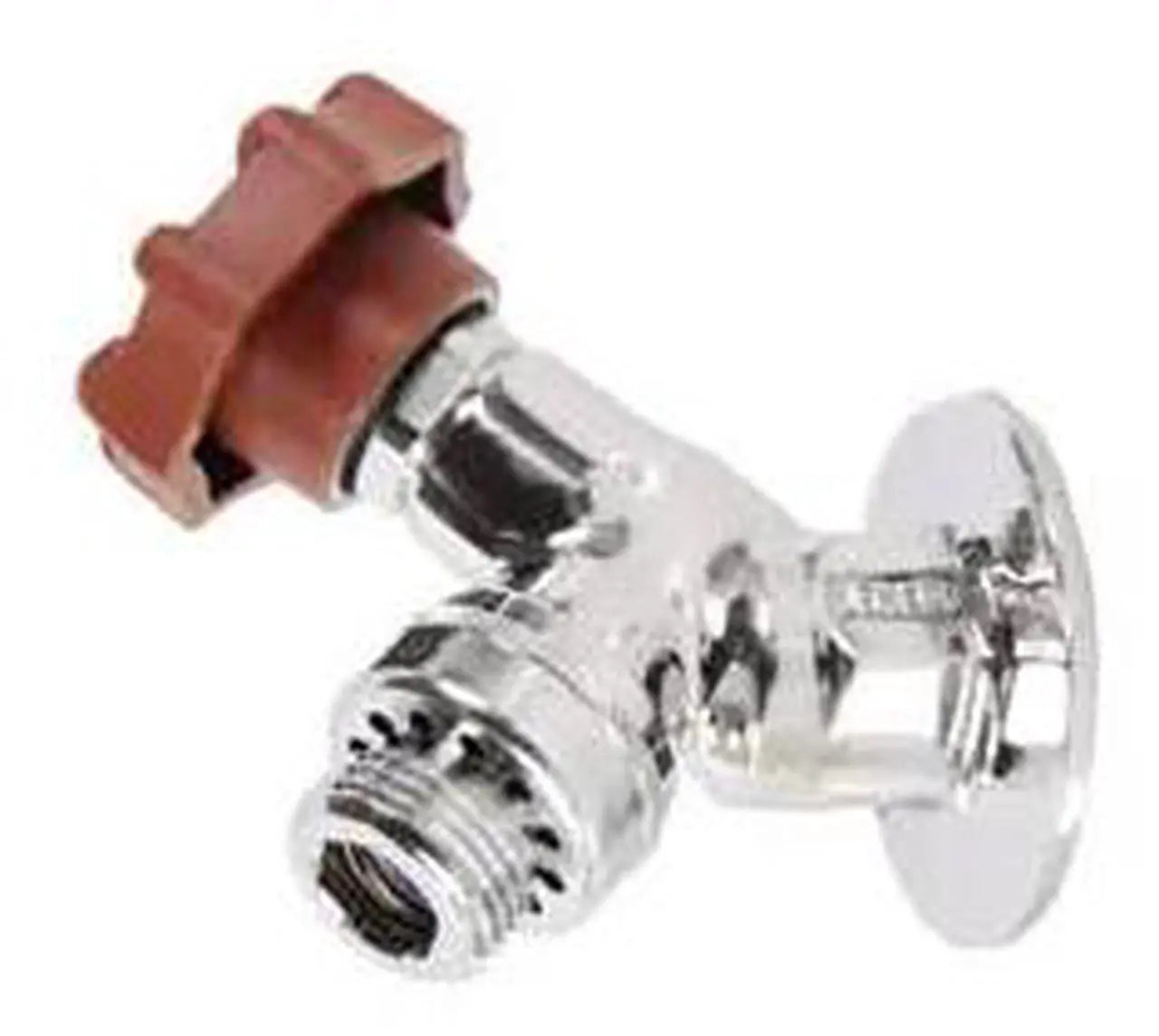

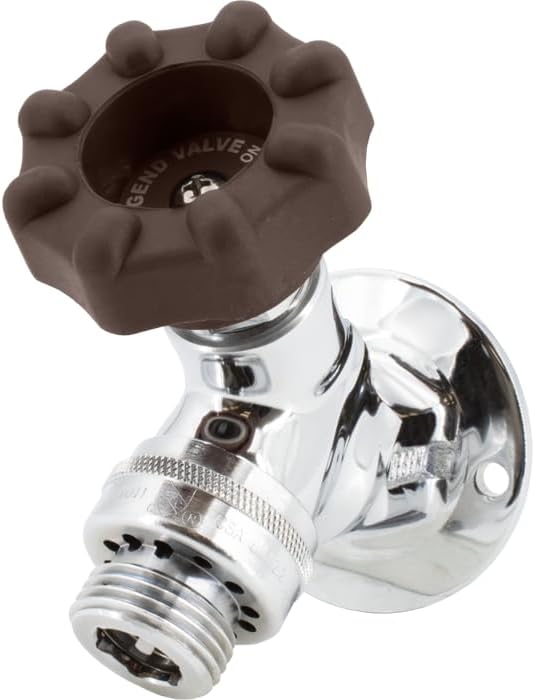

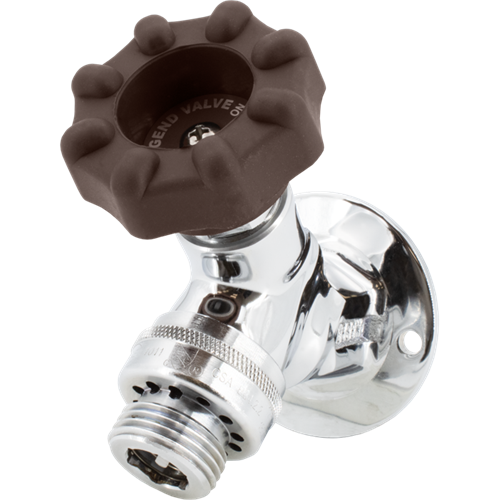

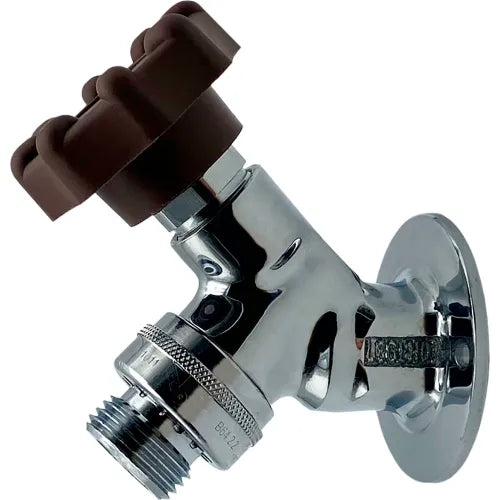

The LEGEND VALVE 107-451 T-549CP is a 1/2" chrome brass commercial ball valve sillcock with a softouch handle and key. It features a vacuum breaker and is third-party tested and certified. This quarter-turn ball-type valve is suitable for commercial applications and conforms to ASSE 1011 standards.

• Chrome Brass construction
• Features a Vacuum Breaker
• 1/4 Turn

Product Highlights

This Legend Valve sillcock is designed for commercial use, offering durability and reliable performance with its brass body and polished chrome finish.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 107-451
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• Material: Chrome Brass
• Size: 1/2"
• Valve Type: Ball Valve
• Configuration: FNPT
• Package Quantity: 1
• Working Pressure: 125 lbs
• Manufacturers Part Number: 107-451
• Certifications: ASSE 1011
• Body Material: Brass
• Domestic/Import: Import
• End Style: FNPT x Male Garden Hose Threaded
• Finish: Polished Chrome
• Nominal Size: 1/2 in
• Pressure Rating: 125 psi
• Series: T-549CP
• Temperature Rating: 180 deg F
• Type: Quarter Turn Ball Type
• Ratings: 125 CWP
• Pipe Size: 1/2"
• Connection Type: FNPT x MGHT
• Outlet Connection Type: NPT
• Number of Ports: 2
• Connector Type: Threaded
• Thread Size: 1/2"
• Outlet Connection Size: 0.5 Inches
• Material Type: Brass
• Specification Met: ASME B16.34, ASME B16.5
