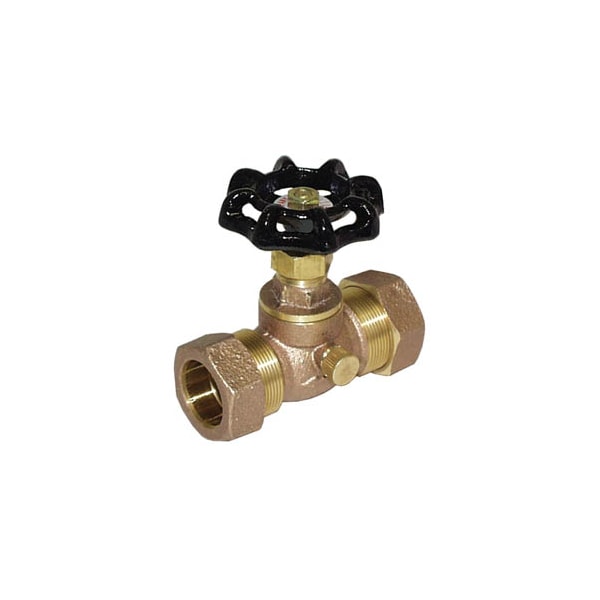

Legend Valve 107-316NL 1/2 T-512 NO LEAD COMP S & W

Product Description

The Legend Valve 107-316NL is a 1/2 inch Stop and Waste Valve designed for plumbing applications. This valve utilizes a compression end style and features a handwheel actuator. It operates at a pressure rating of 125 psi CWP.

• Lead-free design compliant with plumbing laws
• Convenient stop-and-waste configuration
• Cast brass body and trim for durability

Product Highlights

This valve is suitable for potable water installations and is built to last. The full-port design and innovative construction allow for easy usage and reliable performance.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Model: 107-316NL

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Compression
• Nominal Size: 1/2 in
• Pressure Rating: 125 psi CWP
• Series: T-512NL
• Softgoods Material: Nitrile Rubber Seat
• Inlet to Outlet Length: 3.07 in
• Top to Inlet Center: 2.64 in
• Trim Material: Cast Brass
• Domestic/Import: Import
