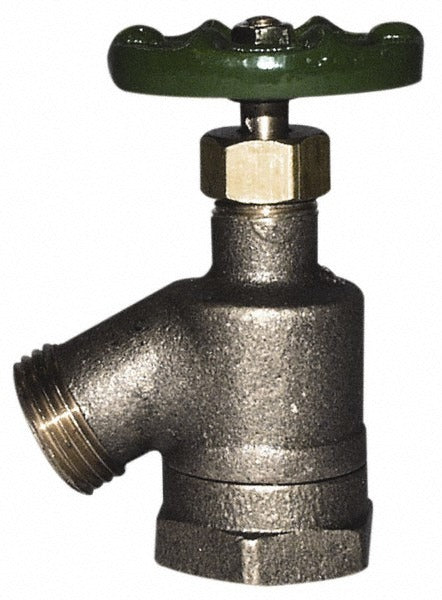

Legend Valve 107-245NL Lead Free Brass Sillcock 1 in

Product Description

The LEGEND VALVE 107-245NL is a lead free brass sillcock designed for residential and light commercial outdoor water supply applications. It features a handwheel handle made of cast iron and connects via female NPT inlet to a male garden hose outlet. The body is constructed from lead free brass, meeting current potable water compliance requirements. Rated at 125 psi WOG, this sillcock handles standard municipal supply pressures without issue. At 0.76 pounds and compact overall dimensions, it installs quickly on exterior walls where a hose bibb connection is needed. Plumbers and general contractors are the typical installers for this type of fitting.

The 107-245NL is suited for exterior wall installations on residential homes and light commercial buildings where a threaded hose connection is required. The FNPT inlet threads onto a standard iron pipe or copper adapter, while the 3/4 inch male garden hose thread outlet accepts a standard garden hose. This sillcock is appropriate for cold water service on exterior applications where freeze protection is not required, such as in warmer climates or seasonal-use structures.

Key Features

• Lead free brass body construction meets potable water compliance standards
• Cast iron handwheel handle for reliable on/off control
• 125 psi WOG working pressure rating for standard municipal supply lines
• FNPT inlet conforms to ANSI/ASME B1.20.1 thread standard
• 3/4 inch male garden hose outlet conforms to ANSI/ASME B1.20.7 thread standard
• Compact size at 3.5 inches length for straightforward wall penetration installation

Compatibility

Designed as an OEM-style replacement or new-installation sillcock for standard 1 inch female NPT pipe connections with a 3/4 inch male garden hose thread outlet on residential and light commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the main water supply and relieve line pressure before removing any existing fitting or threading in the new sillcock. Apply thread sealant or PTFE tape to the FNPT inlet threads before making up the connection. Do not over-tighten the handwheel against the seat, as this can damage the internal components.
