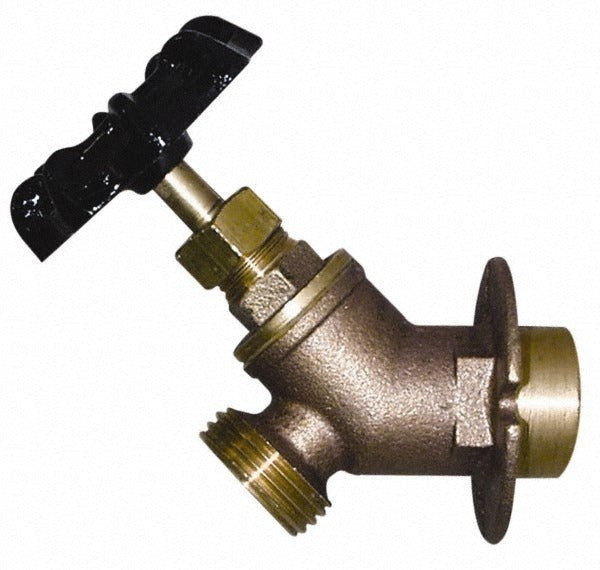

Legend Valve 107-188NL Lead Free Brass Sillcock 3/4 in

Product Description

The LEGEND VALVE 107-188NL is a lead-free brass sillcock with a lockshield handwheel handle, designed for outdoor hose bib applications in residential and light commercial plumbing systems. It features female NPT inlet connections and a male garden hose thread outlet, allowing direct connection to standard 3/4-inch pipe supply lines and garden hose fittings. The valve is rated at 125 psi working pressure for water, oil, and gas service. The lockshield handle allows the valve to be locked in the closed position, a feature commonly used in multi-unit properties or wherever tamper resistance is required. Licensed plumbers and service technicians install this fitting as part of exterior wall rough-in work.

This sillcock is suited for 3/4-inch pipe installations in residential homes, apartment buildings, and light commercial properties where an exterior hose connection with a lockable shutoff is needed. The FNPT inlet threads to copper, CPVC, or PEX supply lines using standard adapters. The male garden hose outlet is compatible with standard hose connections. The lockshield design adds a layer of access control that property managers and facilities crews often specify. No specific compatible model numbers or replacement part numbers are stated in the product data.

Key Features

• Lead-free brass body meets current potable water standards
• 125 psi WOG pressure rating for reliable service in standard residential supply systems
• Lockshield handwheel allows the valve to be secured in the closed position
• FNPT x MGHT end connections for straightforward pipe-to-hose installation
• Cast iron handle material for durable operation in outdoor environments
• Meets ANSI/ASME B1.20.1, ANSI/ASME B1.20.7, ASME B16.18, ASTM F1807, and CSA standards

Compatibility

Designed as an OEM-style replacement or new-installation sillcock for 3/4-inch pipe residential and light commercial plumbing systems using standard FNPT supply connections and male garden hose thread outlets.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the main water supply and depressurize the line before removing an existing sillcock or threading in this fitting. Apply thread sealant or PTFE tape to the FNPT connection before assembly. Do not overtighten the threaded connections, as lead-free brass fittings can crack under excessive torque.
