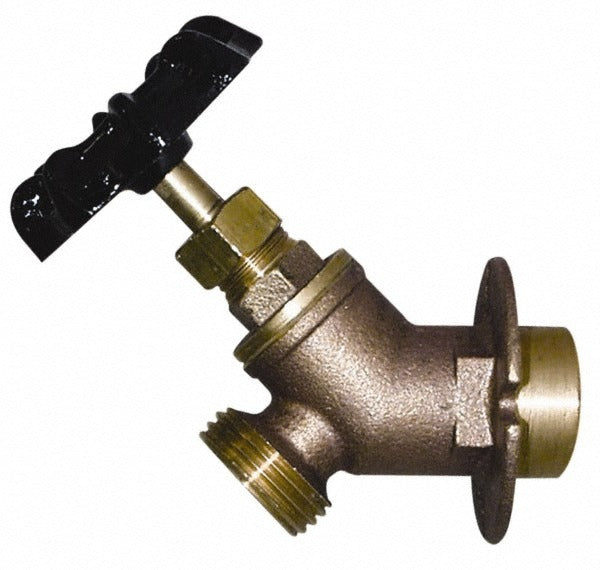

Legend Valve 107-187NL Lead Free Brass Sillcock Lockshield

Product Description

The LEGEND VALVE 107-187NL is a lead-free brass sillcock with a lockshield handwheel handle, designed for outdoor hose bibb applications in residential and light commercial plumbing systems. It features female NPT (FNPT) inlet and male garden hose thread (MGHT) outlet connections, providing a standard configuration for connecting to interior supply lines and exterior hose fittings. Rated at 125 psi WOG, this sillcock handles typical residential water supply pressures without issue. The lockshield design allows the handle to be secured against unauthorized use, making it a practical choice for commercial properties, multi-unit buildings, or any location where controlled access to outdoor water is required. Licensed plumbers and plumbing contractors are the primary installers.

This sillcock is suited for new construction and replacement installations where a 1/2 inch pipe connection is required. The FNPT x MGHT end configuration is the standard pairing for wall-mounted hose bibbs, connecting to threaded iron or copper supply lines and accepting standard garden hose fittings at the outlet. The lead-free brass body meets regulatory requirements for potable water systems in jurisdictions that enforce lead-free standards. The cast iron handle provides durability in outdoor environments.

Key Features

• Lead-free brass body meets lead-free compliance requirements for potable water applications
• Lockshield handwheel handle restricts unauthorized operation of the valve
• 1/2 inch FNPT inlet x MGHT outlet — standard hose bibb connection configuration
• 125 psi WOG working pressure rating suitable for residential and light commercial supply lines
• Compliant with ANSI/ASME B1.20.1, ANSI/ASME B1.20.7, ASME B16.18, ASTM F1807, and CSA standards
• Cast iron handle material for added durability in exterior installations

Compatibility

Designed as an OEM-style replacement or new-installation sillcock for residential and light commercial plumbing systems requiring a 1/2 inch FNPT inlet connection and a male garden hose thread outlet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the main water supply and relieve line pressure before removing an existing sillcock or making new connections. Apply thread sealant tape or compound to all NPT connections and tighten fittings to hand-tight plus the appropriate number of turns per standard practice — do not over-tighten brass fittings. In climates with freezing temperatures, verify that the supply line can be adequately drained or that a frost-free model is required for the application.
