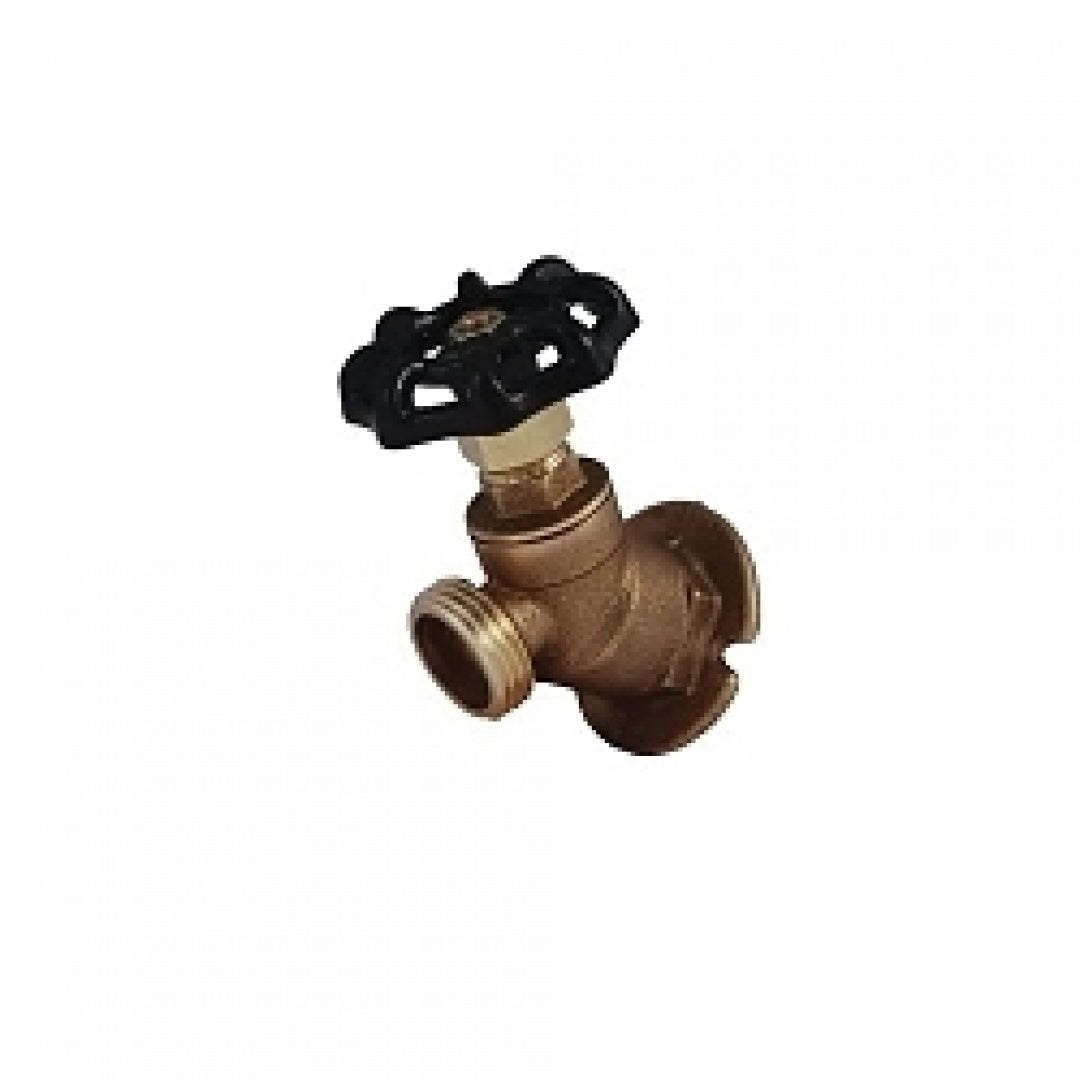

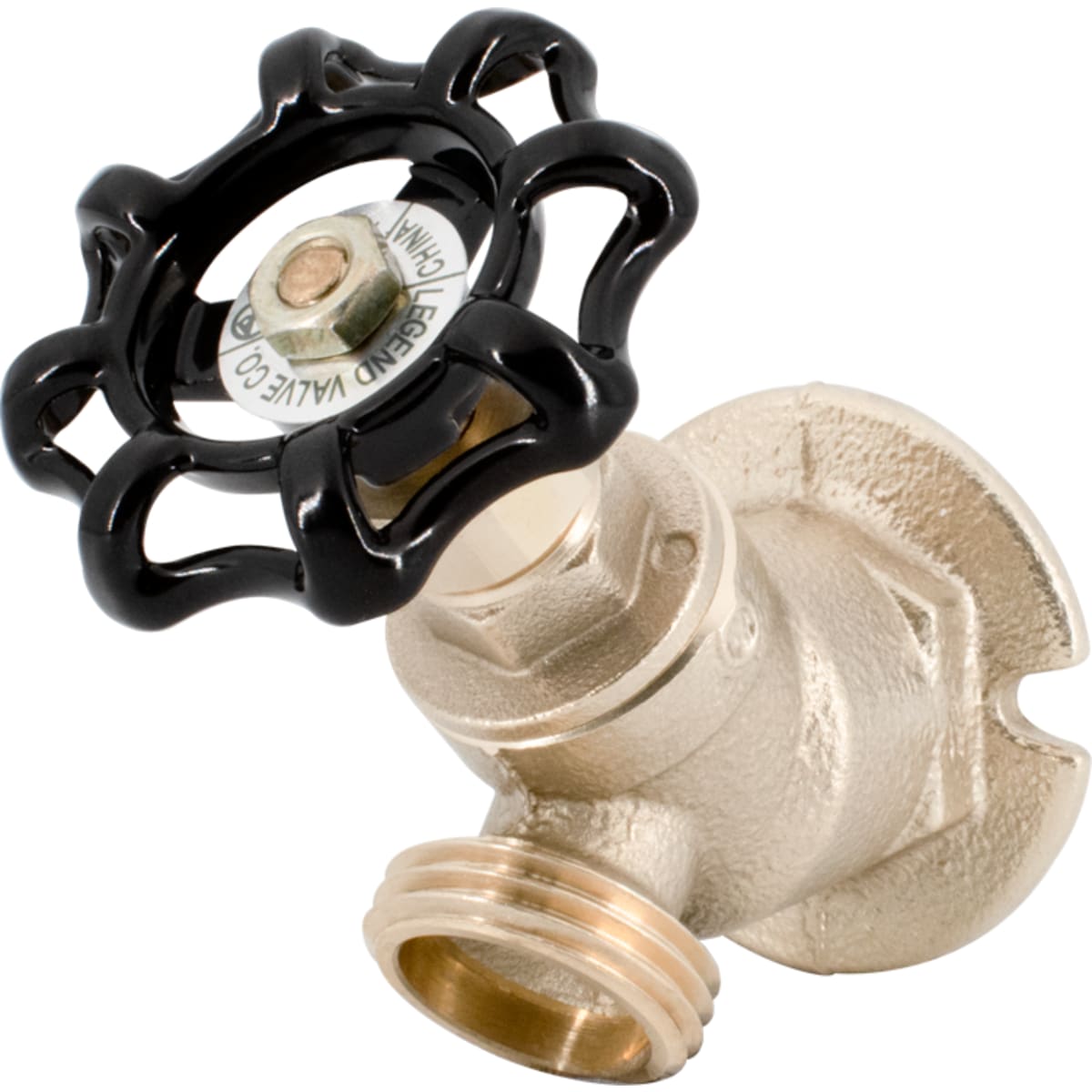

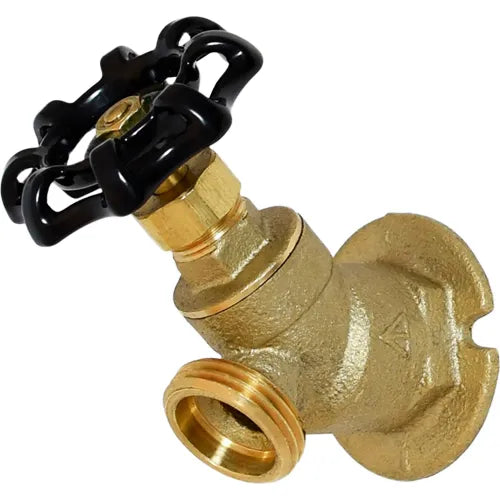

Legend Valve 107-174NL sillcock valve 1/2 inch

Product Description

The Legend Valve 107-174NL is a sillcock valve with a handwheel actuation type and a 1/2 inch nominal size. Constructed from ASTM B584 C85700 cast brass, it features NBR rubber for the seat and seal. Designed for plumbing applications, it meets ANSI/NSF 61G and ISO 9002 standards.

• Lead-Free
• Female Threaded End Connection
• Pressure Rating of 125 PSI Non-Shock CWP

Product Highlights

This lead-free sillcock valve is ideal for plumbing applications requiring a reliable and standard-compliant valve.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 107-174NL
• Country of Origin: China

Technical Specifications

• Actuation Type: Handwheel
• Nominal Size: 1/2 Inch
• End Connection: Female Threaded
• Body Material: Brass
• Seat Material: NBR Rubber
• Seal Material: NBR Rubber
• Handle Material: Iron
• Pressure Rating: 125 PSI Non-Shock CWP
• Application: Plumbing
• Applicable Standard: ANSI/NSF 61G, ISO 9002
• Manufacturer Part Number: 107-174NL
• Brand: Legend Valve
• Valve Type: Sillcock
• Connection Type: FIP x Hose
• Series: T-541NL
• Media: Oil/Water
• Port Type: Full
• Trim Material: Cast Brass
• Type: Low Pressure
• Packing Material: Brass
• Softgoods Material: NBR
• Stem Material: Brass
