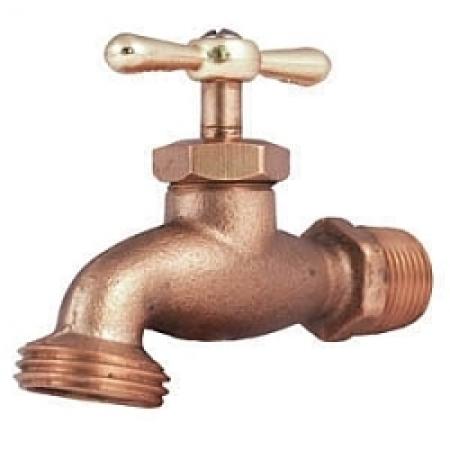

Legend Valve 107-165 3/4 inches T-531 Hose Bibb

Product Description

The LEGEND VALVE 107-165 is a low-pressure hose bibb from the T-531 series, featuring a 3/4 in nominal size and MNPT/C x Garden Hose Thread end style. Suitable for gas, oil, and water media, it has a pressure rating of 125 psi. The bibb features a brass body and brass/NBR trim with a T-handle actuator.

• Features a plated steel screw and plated zinc handle with stainless steel washer and seat screw.
• Equipped with an NBR stem seal.
• Certified to ANSI/NSF 61-G, cUPC, and ISO 9002 standards.

Product Highlights

This Legend Valve hose bibb is ideal for low-pressure applications requiring a durable and certified brass fitting.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 107-165
• Country of Origin: China

Technical Specifications

• Actuator Type: T-Handle
• Body Material: Brass
• Domestic/Import: Import
• End Style: MNPT/C x Garden Hose Thread
• Media: Gas/Oil/Water
• Nominal Size: 3/4 in
• Pressure Rating: 125 psi
• Series: T-531
• Trim Material: Brass/NBR
• Type: Low Pressure
• Manufacturer: LEGEND VALVE
• Connection Size: 3/4 in
• Connection Type: MNPT x GHT
• Item Name: Hose Bibb
• Material Specifications: AC41, ASTM B16, ASTM B584, ASTM B86, C3600, C85700
• Material: Brass
• Operator Type: Zinc-Plated Handle
• Seat Material: NBR
• Stem Material: Brass
• Size: 3/4"
• Standards: 125 CWP
• Handle Material: Zinc
