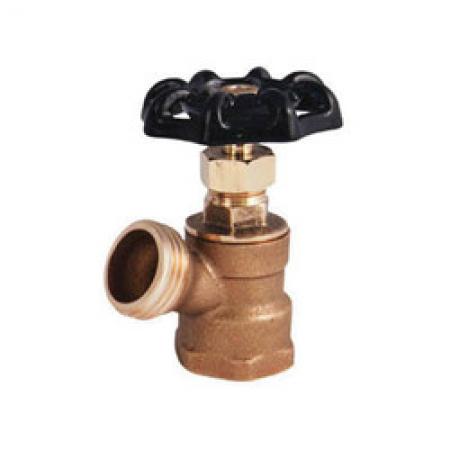

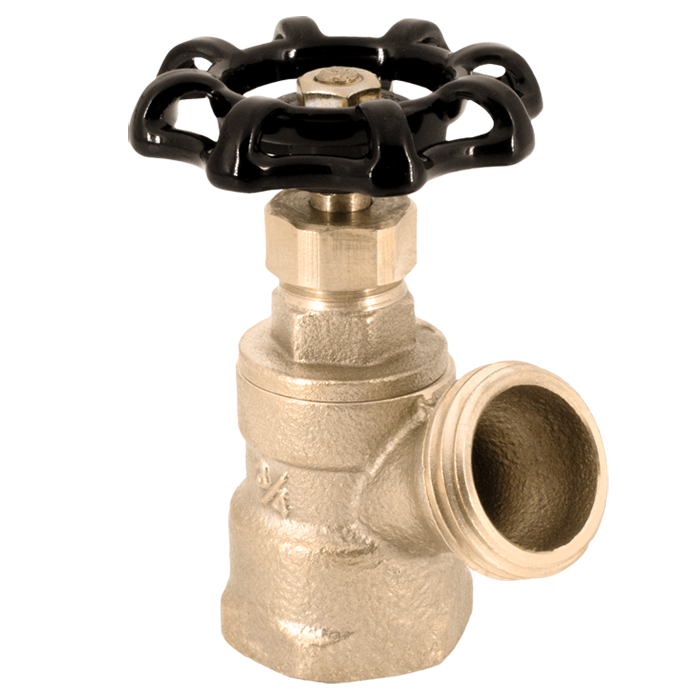

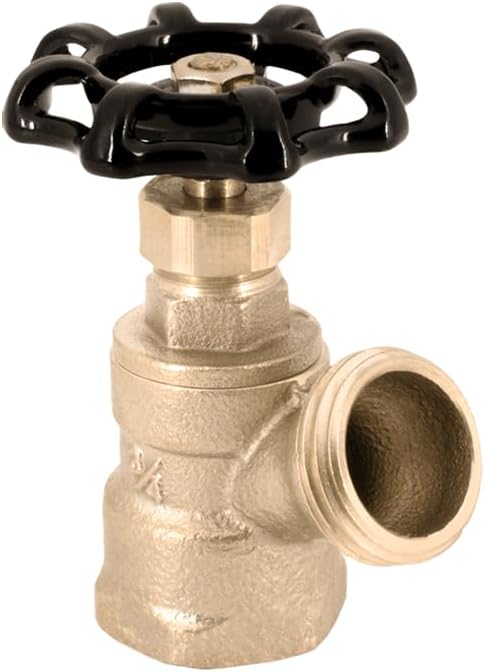

Legend Valve 107-155NL 3/4 T-522 No Lead Boiler Drain

Product Description

The Legend Valve 107-155NL is a 3/4" T-522 no lead boiler drain valve with FNPT connection. Constructed with a full-pattern body, stem, and handwheel, this boiler drain is more durable than reduced-material alternatives. The lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws.

• Lead-free design suitable for potable water installations
• Durable full-pattern body, stem, and handwheel construction
• Equipped with stem packing and packing nut design

Product Highlights

This Legend Valve boiler drain features a brass body, Buna-N seat, and is third-party tested and certified.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 107-155NL
• Country of Origin: China

Technical Specifications

• Size: 3/4"
• Standards: 125 CWP
• Connection Type: FNPT
• Country of Origin: China
• Actuator Type: Handle
• Body Material: Brass
• Domestic/Import: Import
• End Style: FNPT
• Nominal Size: 3/4 in
• Pressure Rating: 125 psi CWP
• Series: T-522NL
• Softgoods Material: Buna-N Seat
• Trim Material: Cast Brass
• Type: Traditional
• Handle Material: Iron
• Lead-Free/Contains Lead: Lead-Free
• Material Standard: AISI 1010, ASTM A48 Class 35, ASTM B16 C36000
• Media: Water
• Operator Type: Handwheel
• Packing Material: Brass
• Seat Material: Buna-N
• Stem Material: Brass
• Manufacturer: Legend Valve
• Model Number: T-522NL
• Item Type Name: Low Pressure Valves
