Product Description

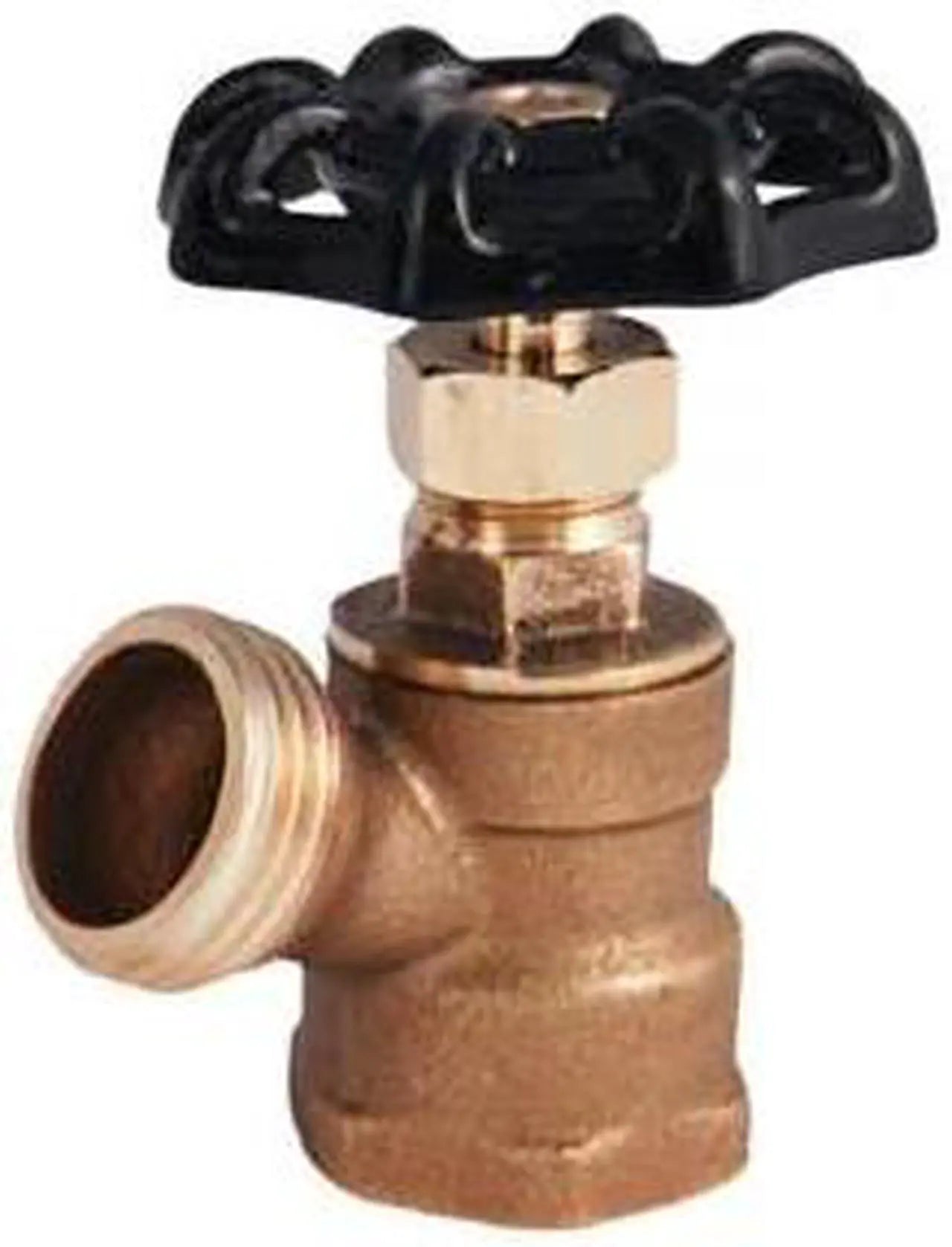

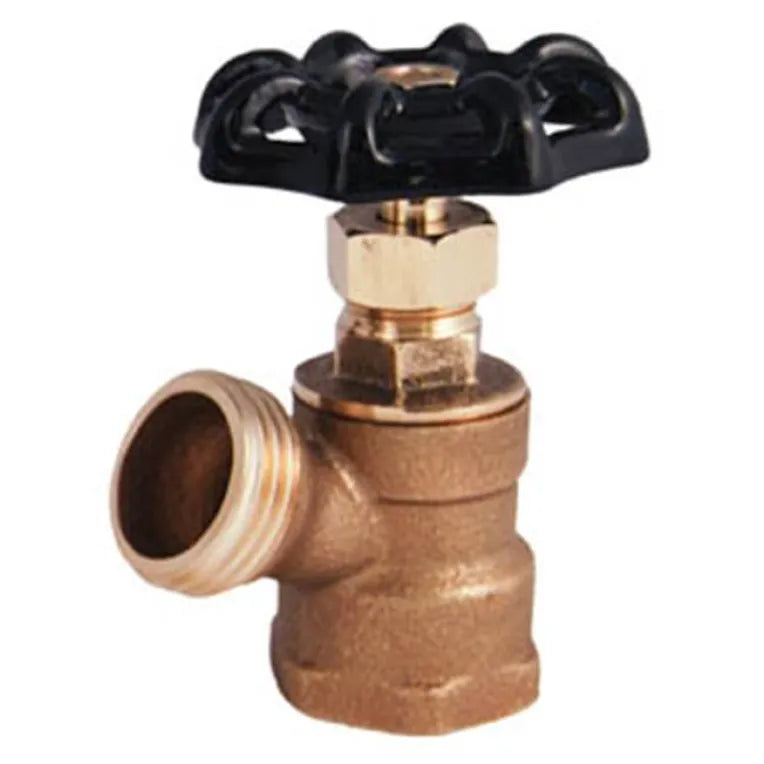

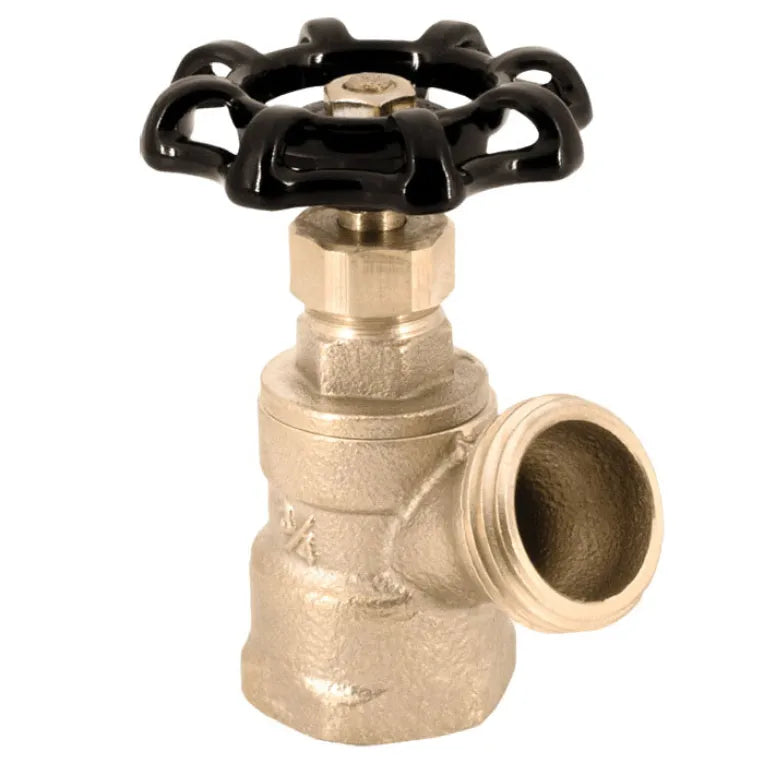

The Legend Valve 107-154NL is a boiler drain valve with a full pattern and handwheel actuation. It is designed for plumbing, industrial, commercial, hydraulic systems, and potable water applications. Constructed from UNS Alloy C46400 cast brass, it features NBR rubber stem packing and is lead-free.
- Boiler Drain Valve
- Full Pattern
- Handwheel Actuation
Product Highlights
The Legend Valve 107-154NL is ideal for various applications requiring a reliable and lead-free boiler drain valve.
Product Information
Standard Information
-
Brand: Legend Valve
-
Manufacturer Part Number: 107-154NL
-
Country of Origin: China
Technical Specifications
-
Type: Full Pattern
-
Actuation Type: Handwheel
-
Nominal Size: 1/2 Inch x 3/4 Inch
-
End Connection: Female Threaded x Male Garden Hose Threaded
-
Body Material: UNS Alloy C46400 Cast Brass
-
Seal Material: NBR Rubber Stem Packing
-
Pressure Rating: 125 PSI Non-Shock CWP
-
Application: Plumbing, Industrial, Commercial, Hydraulic System, Potable Water
-
Lead-Free: Yes
-
Applicable Standard: ANSI/ASME B1.20.1/B1.20.7, NSF/ANSI 61G, ISO 9002, CSA
-
Connection Type: FNPT
-
Handle Material: Cast Iron
-
Material Standard: ASTM A48 Class 35, ASTM B16 C36000
-
Packing Material: Brass
-
Seat Material: Buna-N
-
Series: T-522 Series
-
Stem Material: Brass
-
Brand: Legend Valve
-
Size: 1/2"
-
Standards: 125 CWP
-
Material: Brass
-
Connection Ends: FPT
-
MPN: 107-154NL
