Product Description

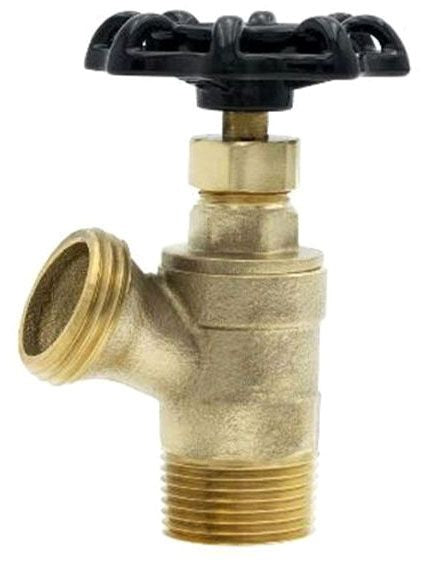

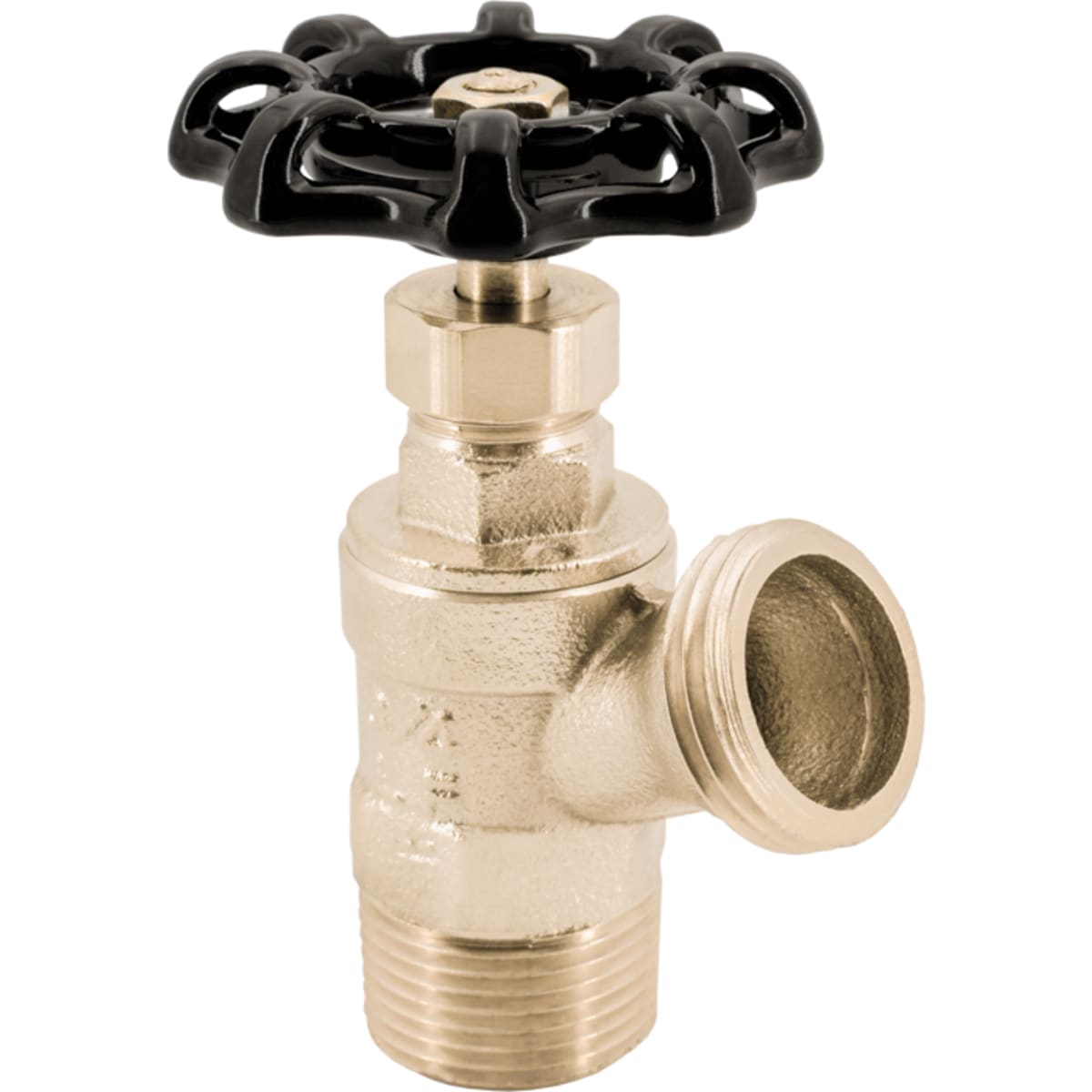

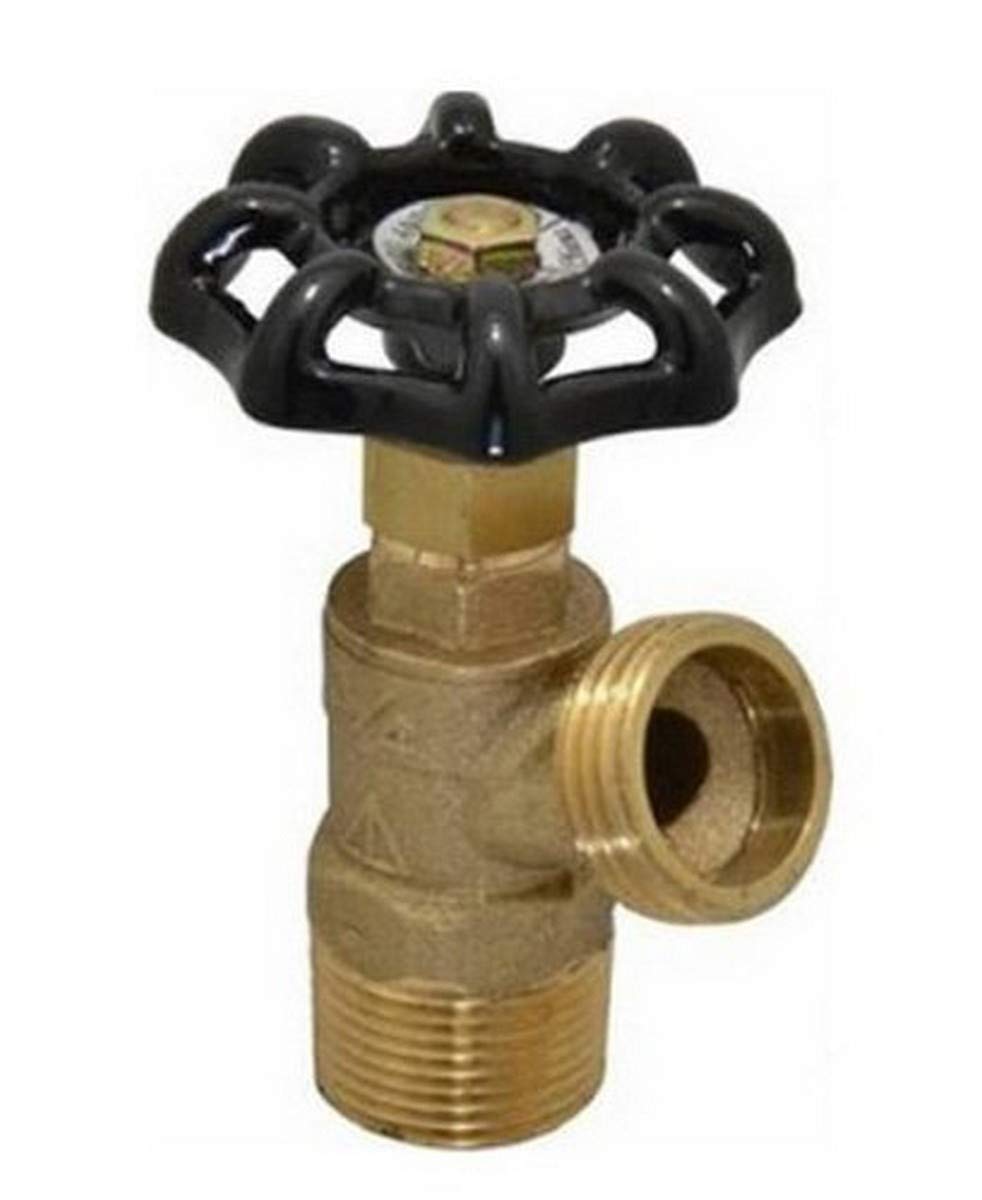

The Legend Valve 107-144NL T-521 is a no-lead boiler drain with a 3/4" nominal size. Constructed with a UNS Alloy C46400 cast brass body and bonnet/stem, this valve features a handwheel actuator and NBR rubber stem packing. Suitable for plumbing and commercial applications, it has a pressure rating of 125 PSI CWP.
- Lead-free design suitable for potable water installations
- Features UNS Alloy C46400 cast brass body
- Equipped with stem packing and packing nut design
Product Highlights
This Legend Valve boiler drain is ideal for plumbing and commercial use, ensuring a durable and lead-free solution for your boiler system.
Product Information
Standard Information
-
Brand: Legend Valve
-
Manufacturer Part Number: 107-144NL
-
Country of Origin: China
Technical Specifications
-
Body Material: UNS Alloy C46400 Cast Brass
-
Actuation Type: Handwheel
-
Nominal Size: 3/4 Inch x 3/4 Inch
-
End Connection: Male Threaded x Male Threaded
-
Pressure Rating: 125 PSI CWP
-
Seal Material: NBR Rubber Stem Packing
-
Type: Boiler
-
Application: Plumbing, Commercial
-
Inclusions/Features: UNS Alloy C46400 Cast Brass Bonnet/Stem, ASTM A48 Class 35 Cast Iron Handle, UNS Alloy C36000 Brass Packing Nut, NBR Rubber Seat Washer, AISI Grade 304 Stainless Steel Seat Retaining Screw, AISI 1010 Cadmium Plated Steel Handle Fastener
-
Manufacturer Part Number Additional: T-521NL_3/4
-
Series/Model: T-521NL
-
Prop 65 Warning: Yes
-
End Style: MNPT
-
Trim Material: Cast Brass
-
Softgoods Material: Buna-N Seat
-
Manufacturer: Legend Valve
-
Connection Size: 3/4 in
-
Item Name: Boiler Drain Valve
-
Material Specifications: ASTM A48
-
Operator Type: Cast Iron Handle
-
Stem Material: Cast Brass
-
Standards/Certifications: ANSI/NSF 61-G, ANSI/ASME B1.20.1, CSA certified
-
Domestic/Import: Import
-
Suitable Media: Water
-
Valve Operation: Manual
-
Port Diameter: 3/4 in
-
Maximum Pressure: 125 psi
