Product Description

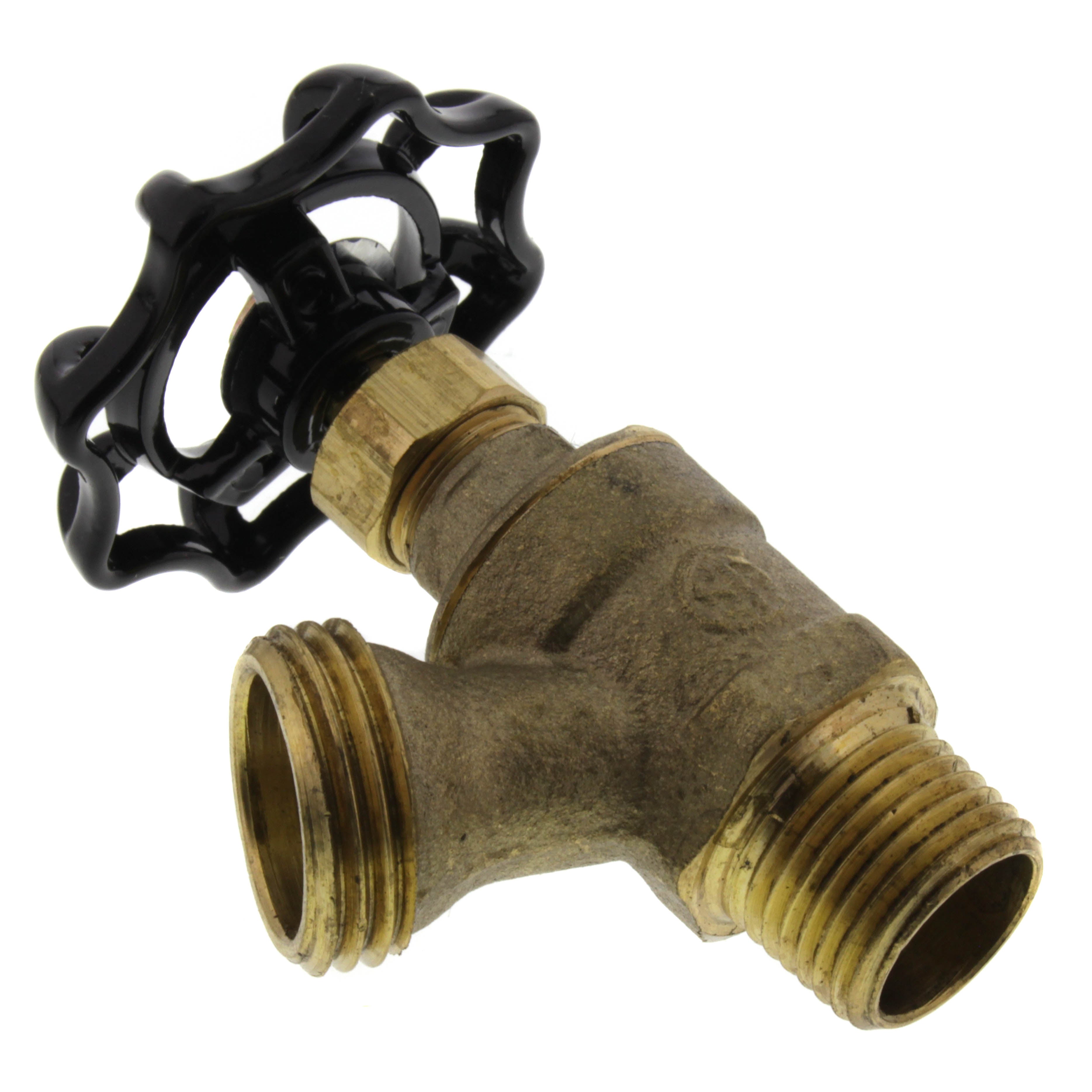

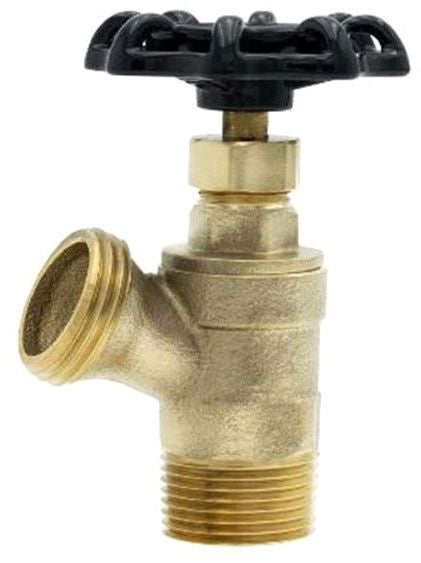

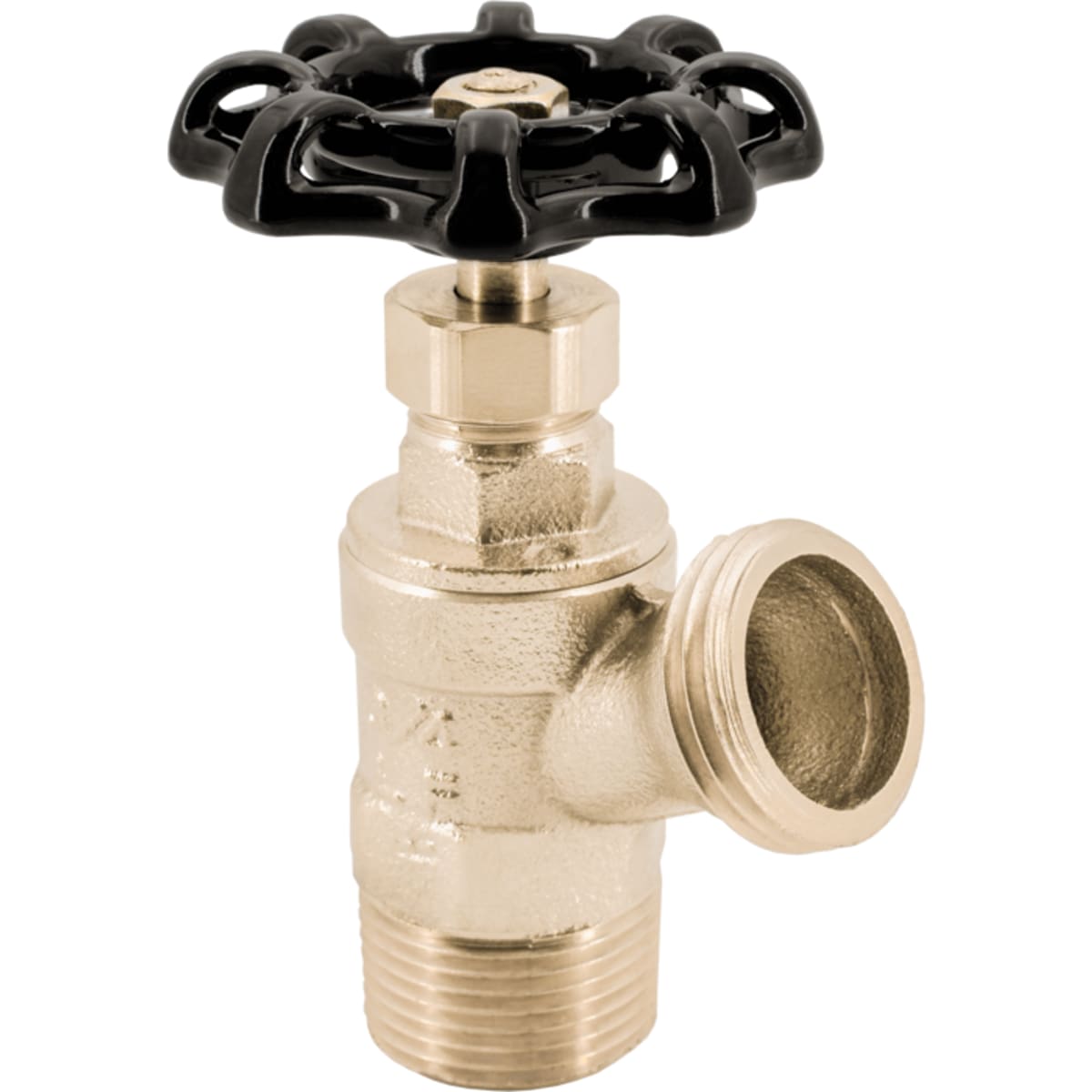

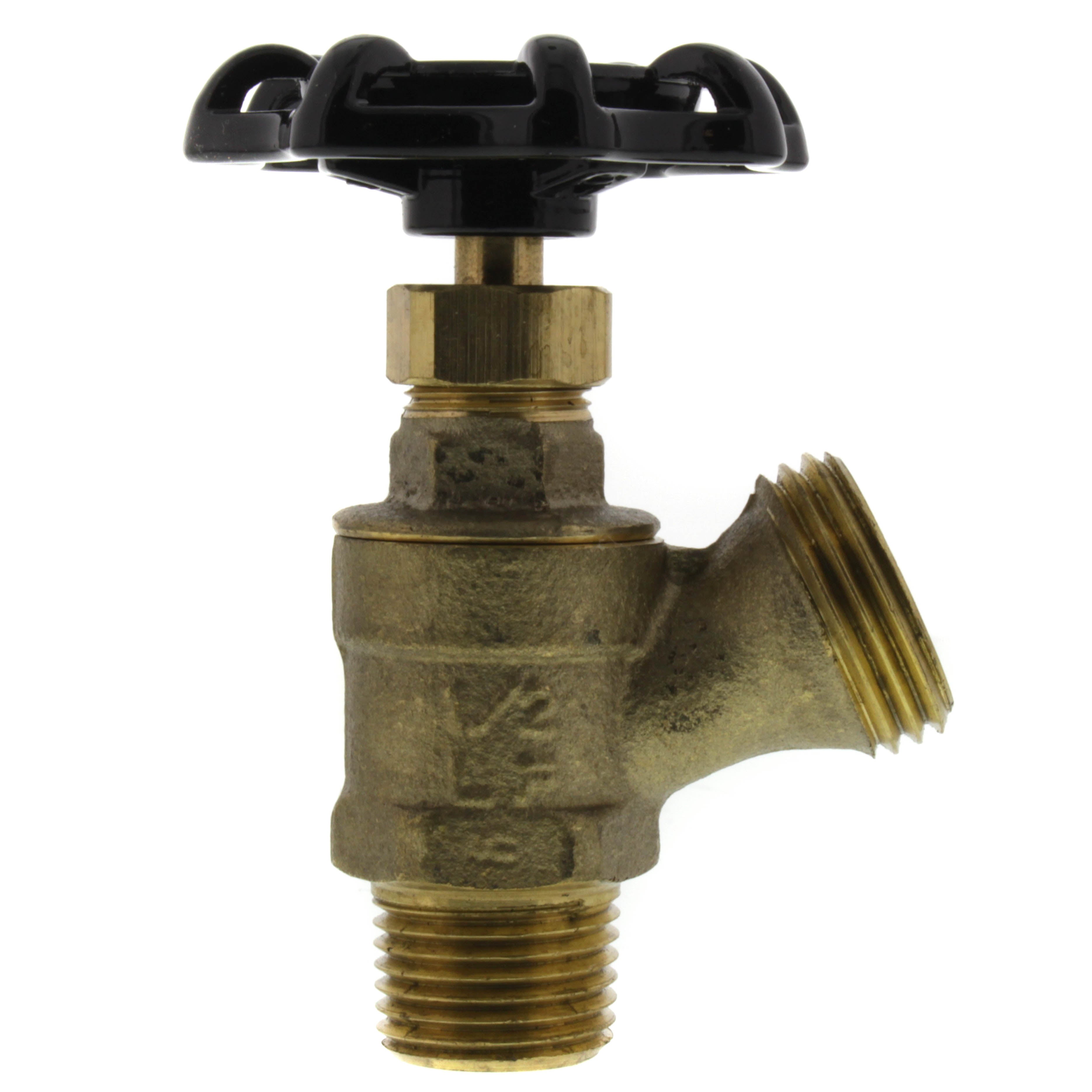

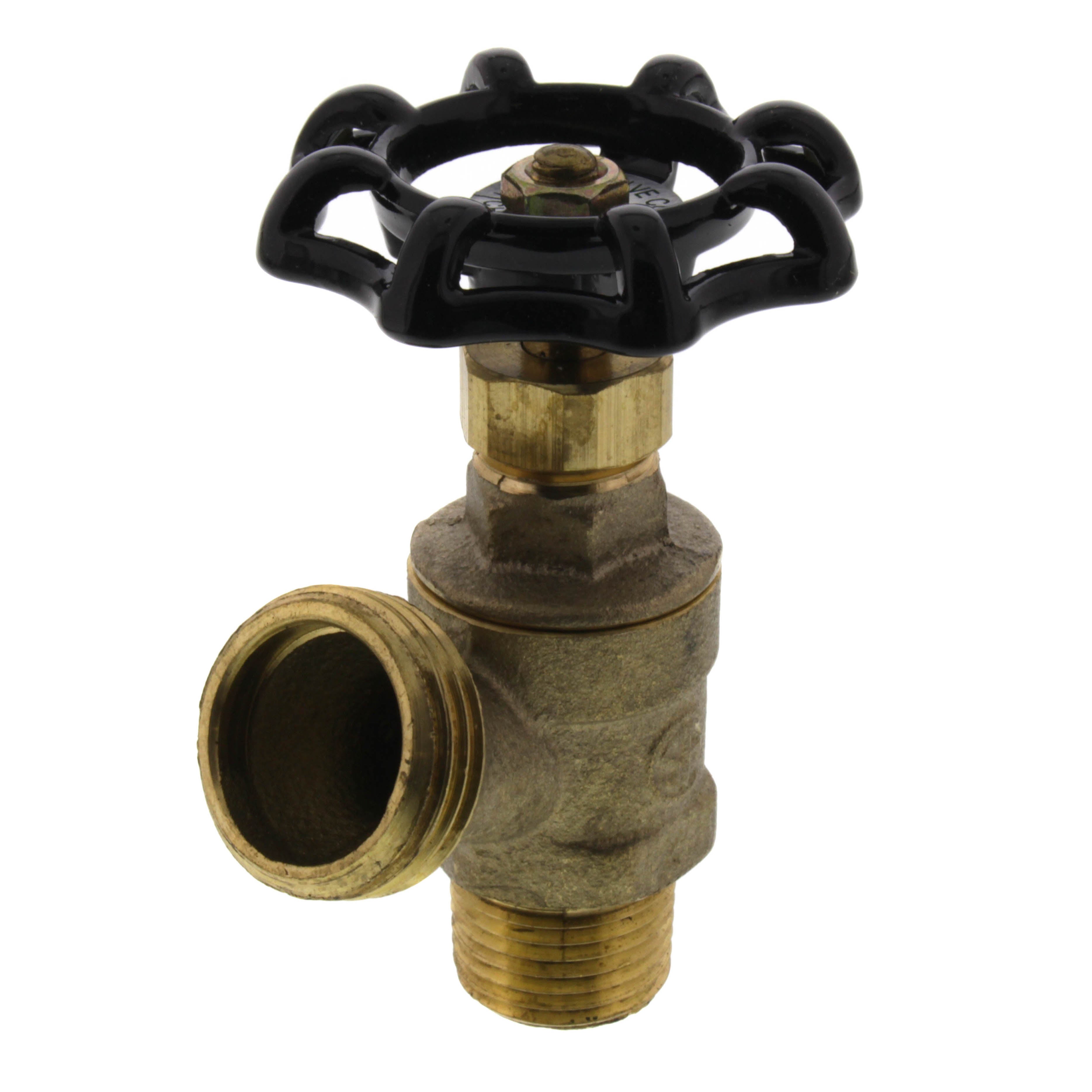

The Legend Valve 107-143NL is a T-521 no lead boiler drain with a 1/2" nominal size. This drain valve features a handwheel actuator and is suitable for plumbing and commercial applications. It has a pressure rating of 125 PSI CWP and is constructed with a UNS Alloy C46400 cast brass body.
- Lead-Free
- Nominal size of 1/2 Inch x 1/2 Inch
- Pressure Rating of 125 PSI CWP
Product Highlights
The Legend Valve boiler drain is ideal for plumbing and commercial use. Its lead-free design ensures compliance with potable water installations.
Product Information
Standard Information
-
Brand: Legend Valve
-
Manufacturer Part Number: 107-143NL
-
Country of Origin: China
Technical Specifications
-
Material: Brass
-
Exterior Finish: Brass
-
Actuation Type: Handwheel
-
Application: Plumbing, Commercial
-
Body Material: UNS Alloy C46400 Cast Brass
-
End Connection: Male Threaded x Male Threaded
-
Inclusions/Features: UNS Alloy C46400 Cast Brass Bonnet/Stem, ASTM A48 Class 35 Cast Iron Handle, UNS Alloy C36000 Brass Packing Nut, NBR Rubber Seat Washer, AISI Grade 304 Stainless Steel Seat Retaining Screw, AISI 1010 Cadmium Plated Steel Handle Fastener
-
Nominal Size: 1/2 Inch x 1/2 Inch
-
Pressure Rating: 125 PSI CWP
-
Product Sub-Type: Drain Valve
-
Product Type: Pipes/Valves/Fittings
-
Seal Material: NBR Rubber Stem Packing
-
Series/Model: T-521NL
-
Type: Boiler
-
End Style: MNPT
-
Media: Oil/Water
-
Port Type: Full
-
Softgoods Material: Buna-N Rubber Seat Washer
-
Trim Material: Cast Brass
-
Item Name: Boiler Drain Valve
-
Material Specifications: ASTM A48
-
Operator Type: Cast Iron Handle
-
Standards/Certifications: ANSI/NSF 61-G, ANSI/ASME B1.20.1, CSA certified
-
Size: 1/2"
-
Finish: Brass
-
Lead Free: Yes
-
Inlet Type: MNPT
-
Outlet Type: Male Hose
-
Valve Construction: 1 piece
-
Manufacturer: Legend Valve
-
Manufacturer #: 107-143NL
-
Packing Material: NBR
-
Stem Material: Brass
-
Handle Material: Iron
-
Lead-Free/Contains Lead: Lead-Free
-
Material Standard: AISI 1010, ASTM A48 Class 35
