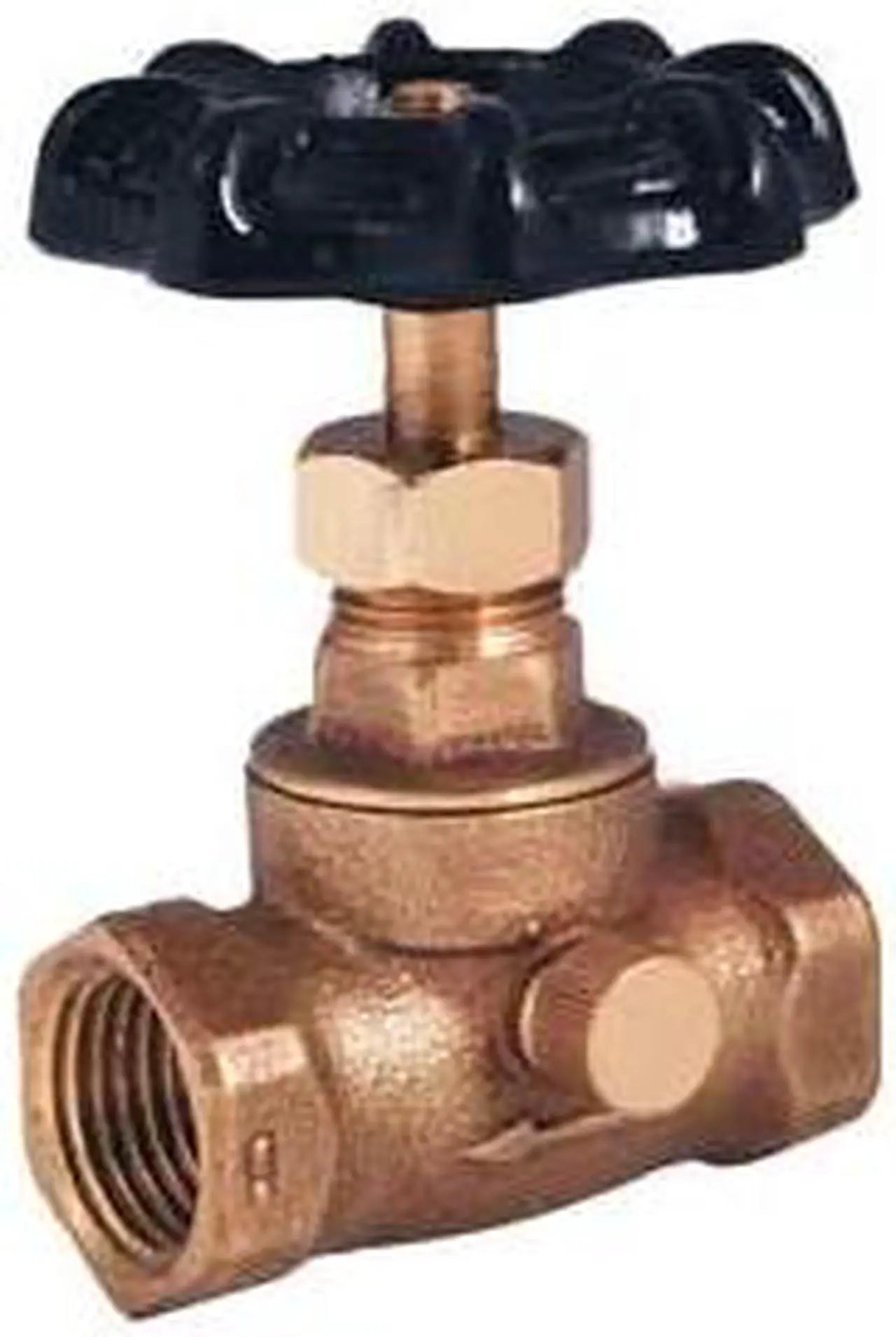

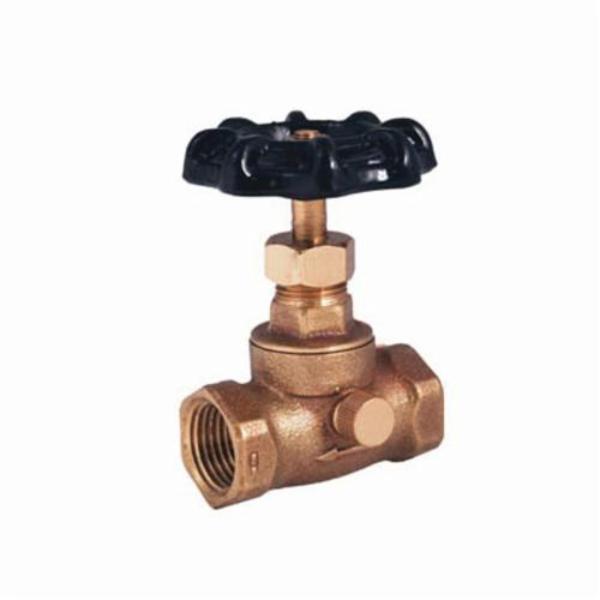

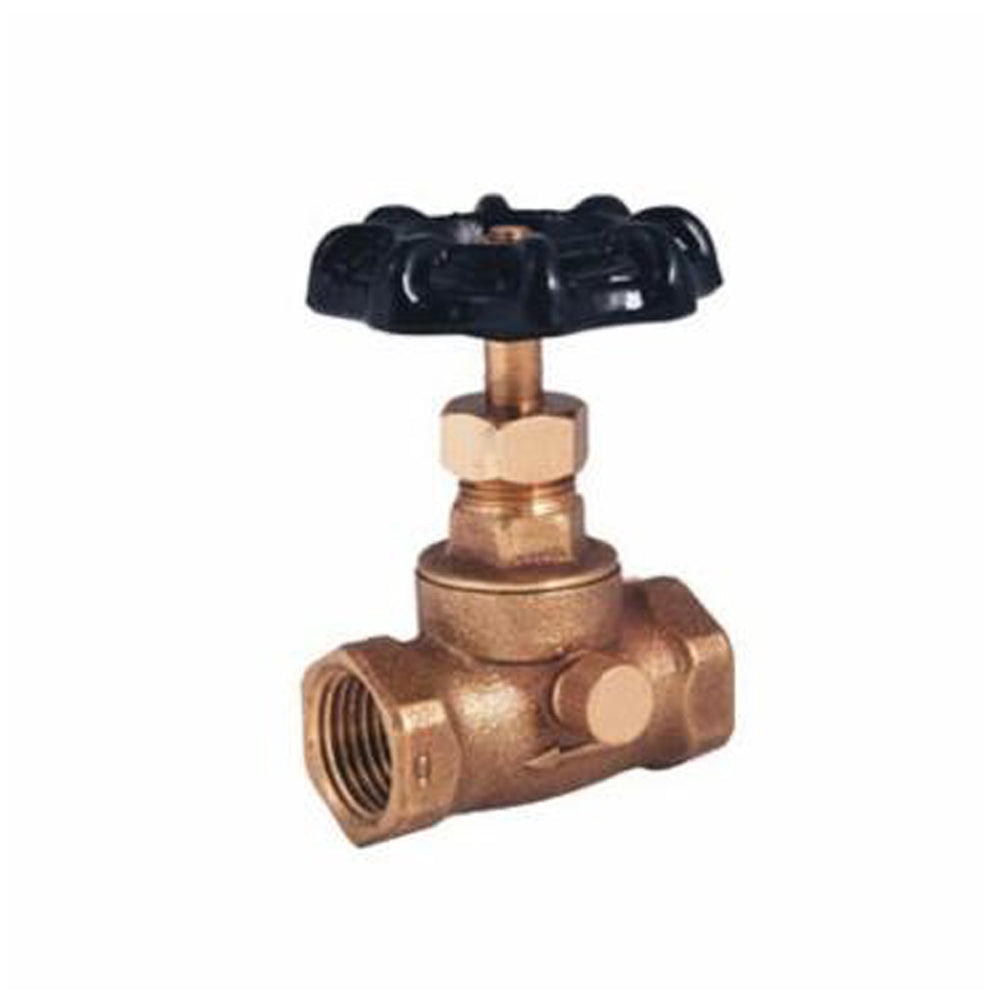

LEGEND VALVE 107-124NL 3/4-Inch Stop and Waste Valve

Product Description

The LEGEND VALVE 107-124NL is a three-fourth inch stop and waste valve. This valve features a cast brass body and trim with FNPT end connections, making it suitable for potable water systems. It complies with lead-free plumbing requirements. The valve includes a handle actuator for easy manual operation, and has a pressure rating of one hundred twenty-five psi CWP.

• Three-fourth inch nominal size
• FNPT x FNPT end connections
• Cast brass body and trim

Product Highlights

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part #: 107-124NL

Technical Specifications

• Product Type: Stop and Waste Valve
• Nominal Size: three-fourth inch
• End Style: FNPT
• Pressure Rating: one hundred twenty-five psi CWP
• Actuator Type: Handle
• Inlet to Outlet Length: two point fifty-nine inches
• Top to Inlet Center: two point fifty-three inches Open
• Body Material: Cast Brass
• Trim Material: Cast Brass
• Softgoods Material: Buna-N Seat
• Ratings: one hundred twenty-five CWP
• Weight Each: two point fifteen pounds
• Each Dimension: two point fifteen x three point three x two point one inches
• Configuration: FNPT x FNPT
