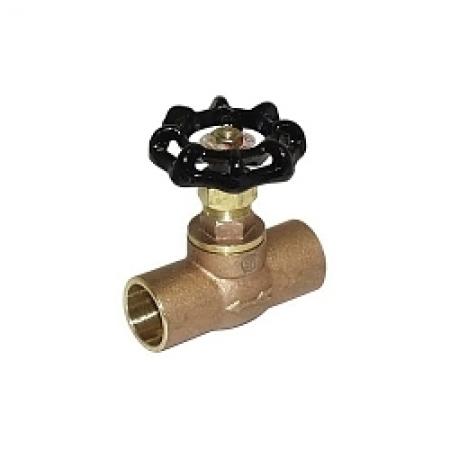

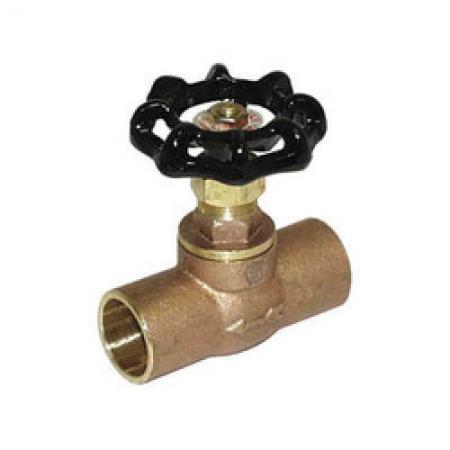

Legend Valve 107-114NL 3/4 S-501 No Lead Stop Valve

Product Description

The Legend Valve 107-114NL is a no lead stop valve designed for plumbing applications. It features a 3/4 inch nominal size and is made with a cast brass body for durability. The handwheel actuator offers ease of control, while the valve operates at a pressure rating of one hundred twenty-five psi CWP.

• Lead-free design meets all plumbing regulations
• Handwheel actuator for simple operation
• Suitable for non-shock applications only

Product Highlights

This stop valve is suitable for all no-lead potable water installations.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 107-114NL

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• Domestic/Import: Import
• End Style: C
• Inlet to Outlet Length: 4-1/4 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 125 psi CWP
• Series: S-501NL
• Softgoods Material: NBR Seat Washer
• Top to Inlet Center: 2.53 inches Open x 2.38 inches Close
• Trim Material: Cast Brass
