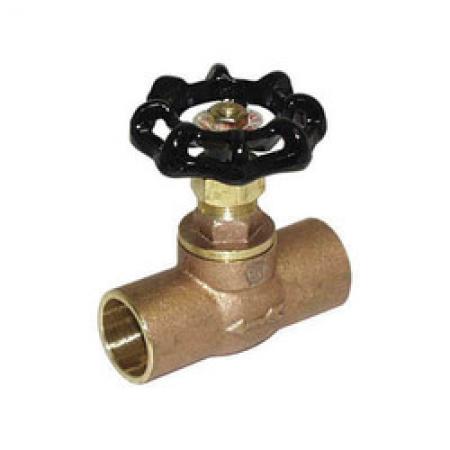

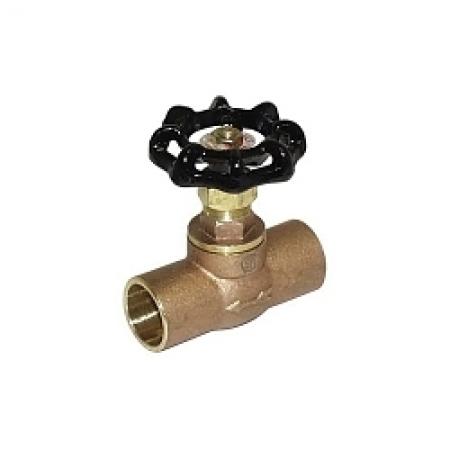

LEGEND VALVE 107-113NL 1/2 S-501 NO LEAD STOP VALVE

Product Description

The LEGEND VALVE 107-113NL is a lead-free stop valve designed for use in potable water systems. This component is part of the S-501NL series and features a handwheel actuator for easy flow control. The valve operates under a pressure rating of one hundred twenty-five psi, making it suitable for a variety of plumbing applications.

• Lead-free design meets all plumbing laws.
• Cast brass body and trim ensure durability.
• Handwheel actuator allows for straightforward operation.

Product Highlights

This stop valve is compliant with U.S. Federal Public Law 111-380 and is ideal for installations that require a reliable and long-lasting solution without lead contamination.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• UPC: 662545083384

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• Domestic/Import: Import
• End Style: C
• Inlet to Outlet Length: 3-3/4 in
• Nominal Size: 1/2 in
• Pressure Rating: 125 psi CWP
• Series: S-501NL
• Softgoods Material: NBR Seat Washer
• Top to Inlet Center: 2.63 in Open x 2.41 in Close
• Trim Material: Cast Brass
