Legend Valve 105-708PNL 2 inches P-16nl Press Y-Strainer

Product Description

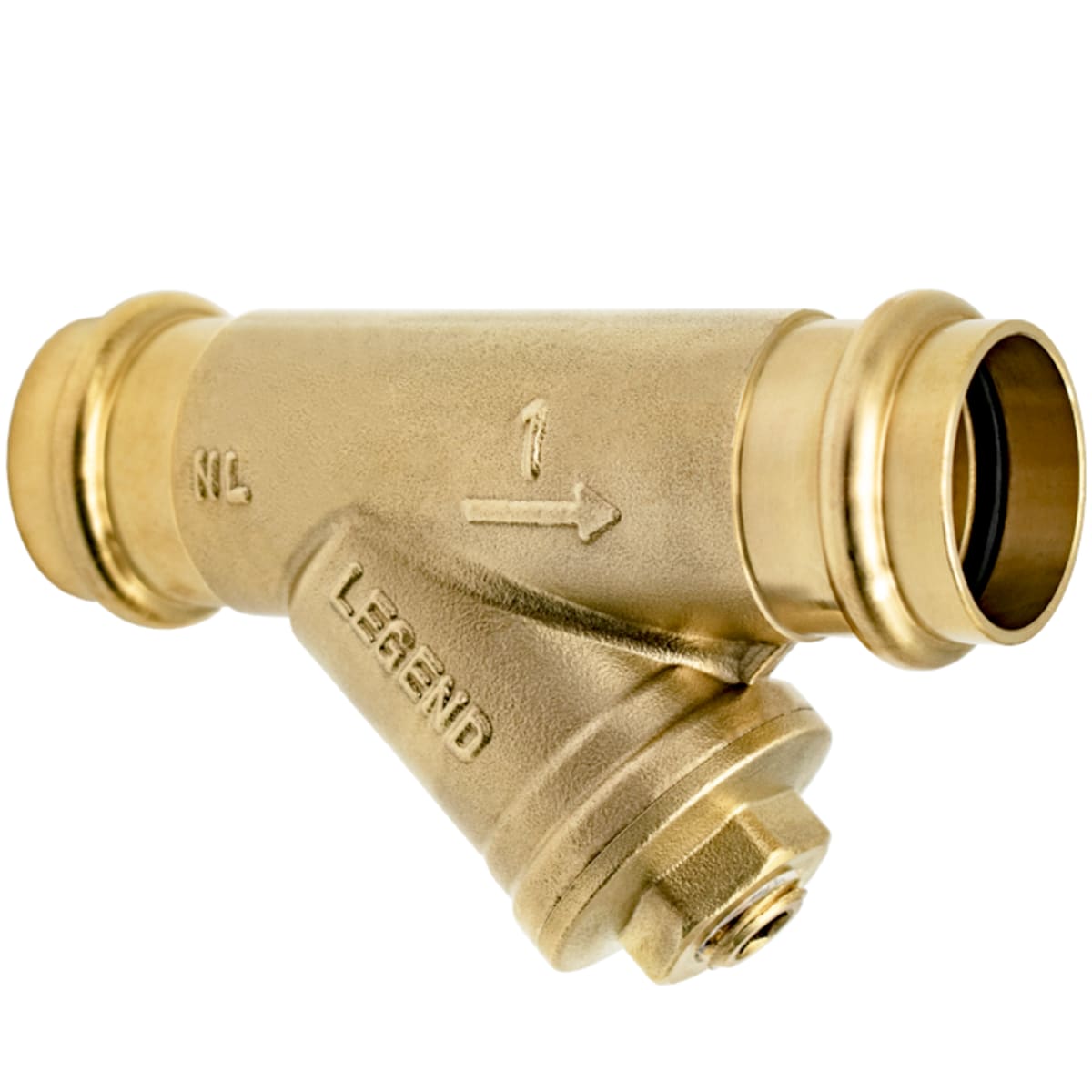

The LEGEND VALVE 105-708PNL is a 2" P-16NL press Y-strainer designed to protect downstream components by trapping and holding debris under pressure. It features press-type end connections that eliminate the need for soldering. This strainer is designed for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing and is equipped with a 304 stainless steel 20-mesh screen.

• Press-type end connections eliminate soldering, reducing labor and material costs.
• Designed for installation onto ASTM B88 types K, L and M.
• Protects downstream components by trapping debris.

Product Highlights

This Y-strainer features press-to-connect connections and a 20-mesh stainless steel screen for effective debris removal.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-708PNL

Technical Specifications

• Body Material: Brass
• Connection Type: Press
• Domestic/Import: Import
• Nominal Size: 2 IN
• Overall Length: 7.25 in
• Series: P-16NL
• Manufacturer: LEGEND VALVE
• Size: 2"
• Configuration: Press x Press
• ITEM NUMBER: 105-708PNL
• UPC: 662545138459
• Brand: Legend
• Category: HVAC
• Filter 1: Hydronics
• Filter 2: Accessories
• Filter 3: Strainers
• Filter 4: Wye
• Filter 5: 2 inch
• Item Name: LEAD-FREE BRASS PRESS-CONNECT Y-STRAINER
• Type: P-16NL
• Connection_Type: Press-Connect
• Screen Size: 20 Mesh
• Pressure Rating: Working Pressure, Non-Shock: 200 PSI up to 250° F
• Screen Material: 304 SS 20-Mesh Screen
• Material Standard: Body: Lead-free forged brass, Screen: Stainless Steel, Cap, and Plug: Lead-free forged brass
• Material Specification: Body, Cap, and Plug: UNS Alloy C46500, Screen/Strainer: AISI 304
• Industry Standards: ANSI/ASME B16.51: Standard specification for copper and copper alloy press-connect pressure fittings.
• Temperature Rating: 15 PSI (WSP) at 250° F
