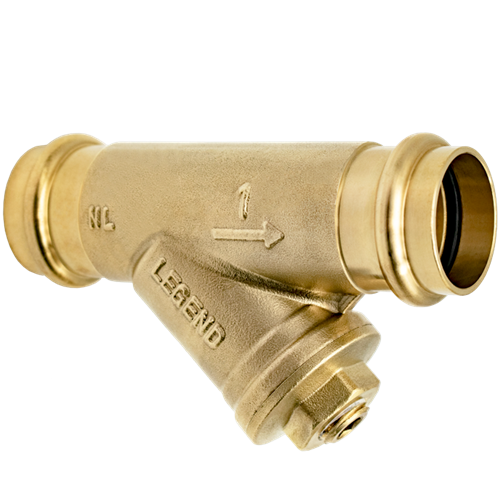

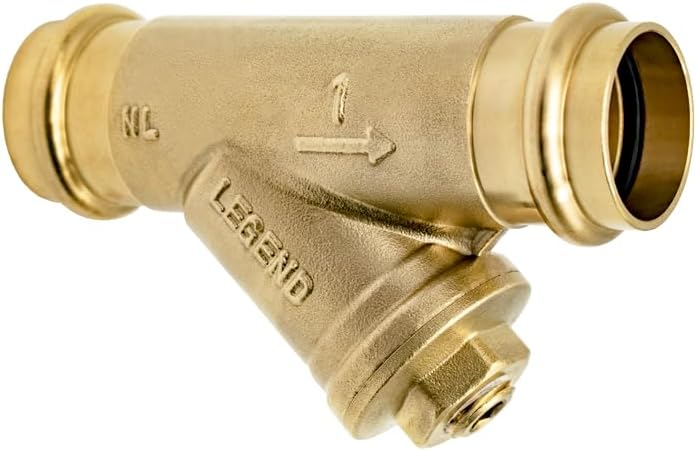

Legend Valve 105-706PNL 1-1/4 inches P-16NL Press Y-Strainer

Product Description

The LEGEND VALVE 105-706PNL 1-1/4" P-16NL Press Y-Strainer is designed to protect downstream components by trapping debris under pressure. It features press-type end connections that eliminate the need for soldering. This Y-Strainer is equipped with a 304 stainless steel 20-mesh screen and is suitable for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing.

• Press-type end connections eliminate soldering, reducing labor and material costs.
• Designed to protect downstream components by trapping and holding debris under pressure.
• Equipped with a 304 stainless steel 20-mesh screen.

Product Highlights

The LEGEND VALVE 105-706PNL Y-Strainer protects downstream components with its press-to-connect design and stainless steel mesh screen.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-706PNL

Technical Specifications

• MPN: 105-706PNL
• Brand: LEGEND VALVE
• Size: 1-1/4"
• Configuration: Press x Press
• Item Name: LEAD-FREE BRASS PRESS-CONNECT Y-STRAINER
• Type: P-16NL
• Nominal Size: 1-1/4 in
• Connection Type: Press-Connect
• Screen Size: 20 Mesh
• Pressure Rating: 200 PSI CWP, 15 PSI WSP
• Body Material: Brass
• Screen Material: 304 SS 20-Mesh Screen
• Material Standard: Body: Lead-free forged brass, Screen: Stainless Steel, Cap, and Plug: Lead-free forged brass
• Material Specification: Body, Cap, and Plug: UNS Alloy C46500, Screen/Strainer: AISI 304
• Industry Standards: ANSI/ASME B16.51: Standard specification for copper and copper alloy press-connect pressure fittings.
• Temperature Rating: 0 to 250 Deg F
• End Connection: Press x Press
• End to End Distance: 5.02 Inch
• Pipe Size to Vertical Dimension: 2.64 Inch
• Mesh/Screen Size: 20 Mesh
• Mesh/Screen Material: 304 Stainless Steel
• Seal Material: EPDM
• Media Handled: Water
• Inclusions/Features: Forged Brass Plug, EPDM O-Ring
• Applicable Standard: ANSI/ASME B16.51
• Series/Model: P-16NL
• Housing Material: Brass
• Mesh Size: #20
• Series: P-16NL Series
• Manufacturer: Legend Valve
• Item model number: P-16NL
• Category: HVAC
• Filter 1: Hydronics
• Filter 2: Accessories
• Filter 3: Strainers
• Filter 4: Wye
• Filter 5: 1-1/4 inch
