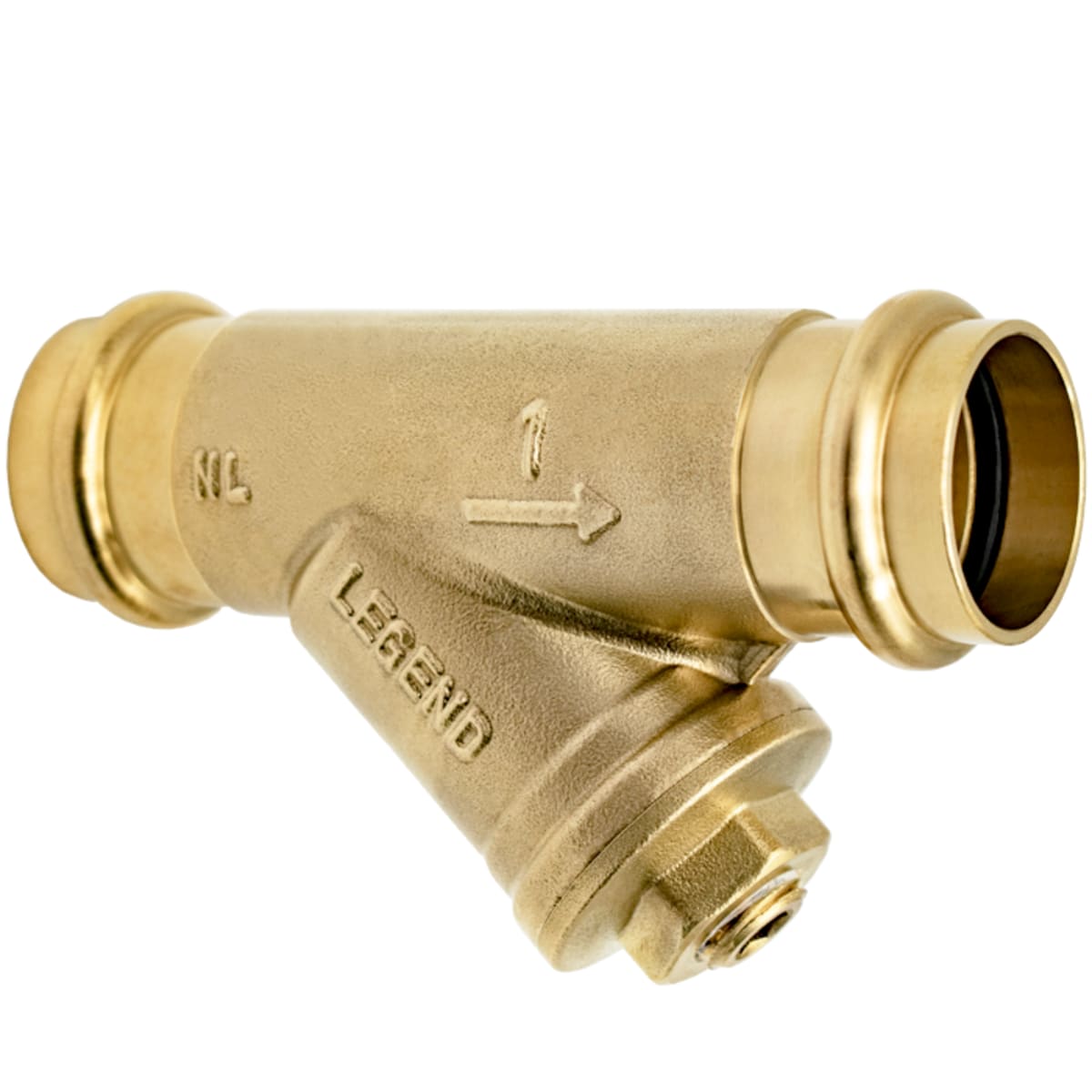

Legend Valve 105-705PNL 1 inches P-16nl Press Y-Strainer

Product Description

The LEGEND VALVE 105-705PNL is a 1" P-16NL press Y-strainer designed to protect downstream components by trapping debris under pressure. It features press-type end connections that eliminate the need for soldering, reducing labor and material costs. This Y-strainer is designed for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing and has a brass body.

• Press-type end connections eliminate soldering
• Designed for installation onto ASTM B88 types K, L and M
• Protects downstream components by trapping debris

Product Highlights

This Y-strainer is ideal for use with ASTM B88 types K, L, and M hard-drawn copper tubing. Its press-to-connect connections are designed for easy installation.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-705PNL

Technical Specifications

• Body Material: Brass
• Connection Type: Press
• Domestic/Import: Import
• Nominal Size: 1 in
• Overall Length: 4.52 in
• Series: P-16NL
• Size: 1"
• Configuration: Press x Press
