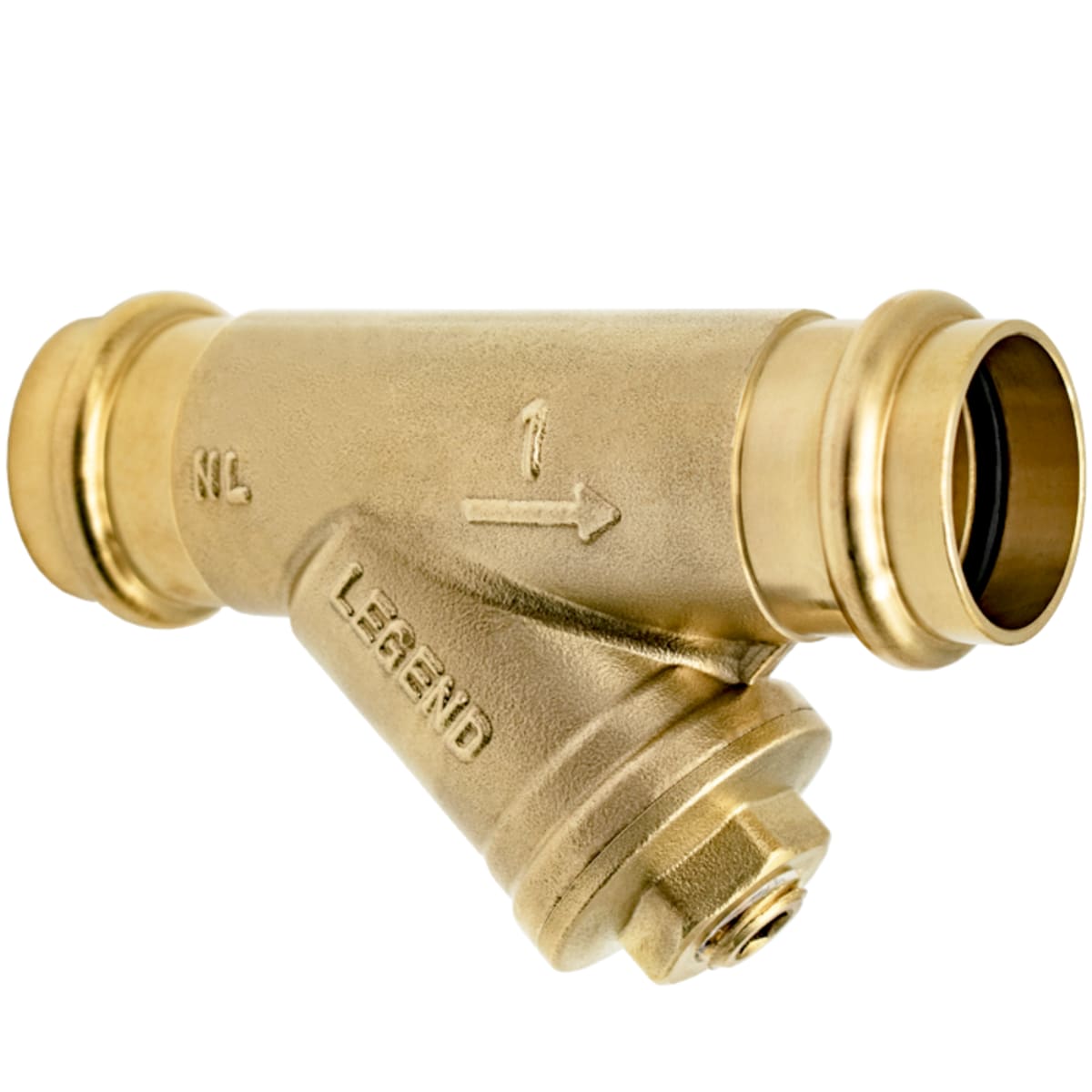

Legend Valve 105-704PNL 3/4 inches P-16nl Press Y-Strainer

Product Description

The LEGEND VALVE 105-704PNL is a 3/4" P-16nl Press Y-Strainer designed to protect downstream components by trapping debris under pressure. Its press-type end connections eliminate soldering, reducing labor and material costs. It is designed for installation onto ASTM B88 types K, L, and M hard-drawn copper tubing.

• Press-type end connections eliminate the need for soldering
• Designed for installation onto ASTM B88 types K, L and M
• Protects downstream components by trapping debris

Product Highlights

This Y-Strainer features press-to-connect connections and a brass body. It meets NSF/ANSI 372 and ANSI/ASME B16.51 standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-704PNL

Technical Specifications

• Body Material: Brass
• Connection Type: Press
• Nominal Size: 3/4 in
• Overall Length: 4.02 in
• Series: P-16NL
• Manufacturer: LEGEND VALVE
• Domestic/Import: Import
• Configuration: Press x Press
• Housing Material: Brass
• Mesh Material: 304 Stainless Steel
• Mesh Size: #20
• Pressure Rating: 15 WSP, 200 CWP
• Temperature Rating: 0 to 250 deg F
